Datalogic GWU-HS7600 User Manual

GWU-HS7600 Cloud Setup
QUICK REFERENCE GUIDE 13

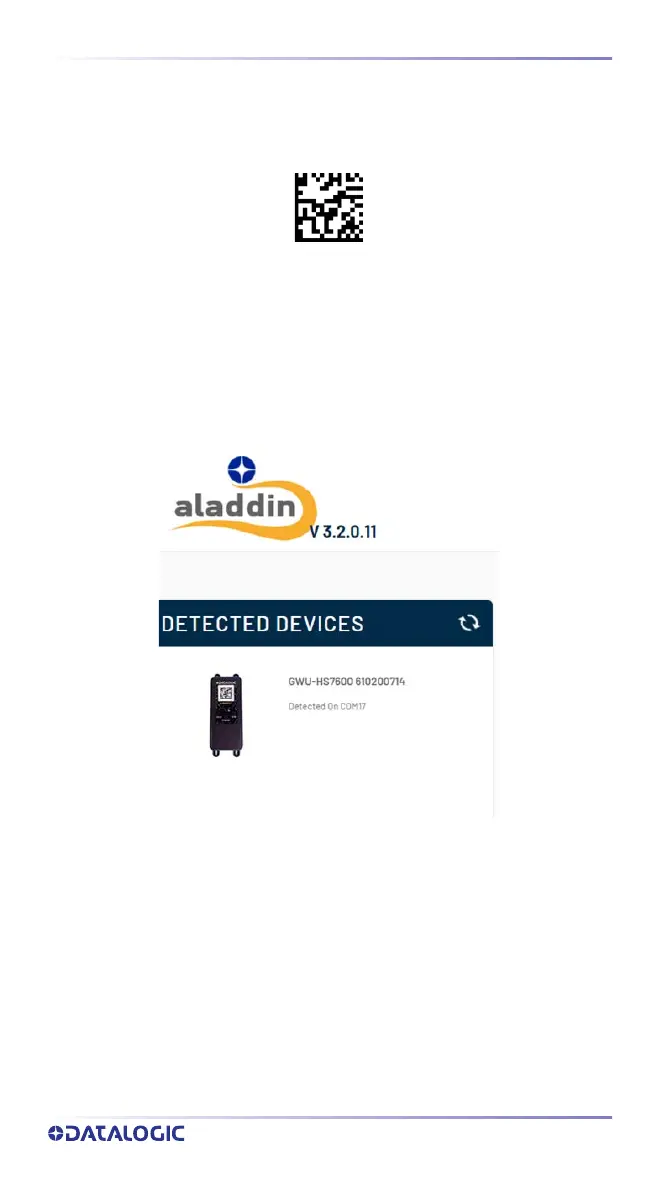

Wi-Fi Interface Enable with a CODiScan
If a CODiScan scanner is linked to the GWU-HS7600, to enable the Wi-Fi inter-
face scan the barcode below.
Wi-Fi Interface Enable
Access Point Configuration
Assuming the GWU-HS7600 has the Wi-Fi interface already enabled and con-
nected to a free USB port, open Aladdin and verify the device is properly rec-
ognized (Figure 12). Click on the device to open the configuration, expand the
Interface Selection sub-menu on the left and select Wi-Fi parameters (Figure
13). In this section it is possible to enter the credentials of the access point.
Figure 12. Access Point Configuration

Datalogic GWU-HS7600 Specifications

General

Brand	Datalogic
Model	GWU-HS7600
Category	Network Hardware
Language	English
