CHARGING STATION
Charging Station Overview
The Charging Station consists of two charging trays that charge two HandScanners at the same time. The charging sta-
tus is indicated by the LEDs of the HandScanner. The LEDs pulse red while in charging mode. When the battery is fully
charged, the LEDs pulse green constantly. It takes about 2 hours to charge a HandScanner. The Charging Station can be
attached to work stations, for example, through the attachment openings (with M5 screws or cable ties).

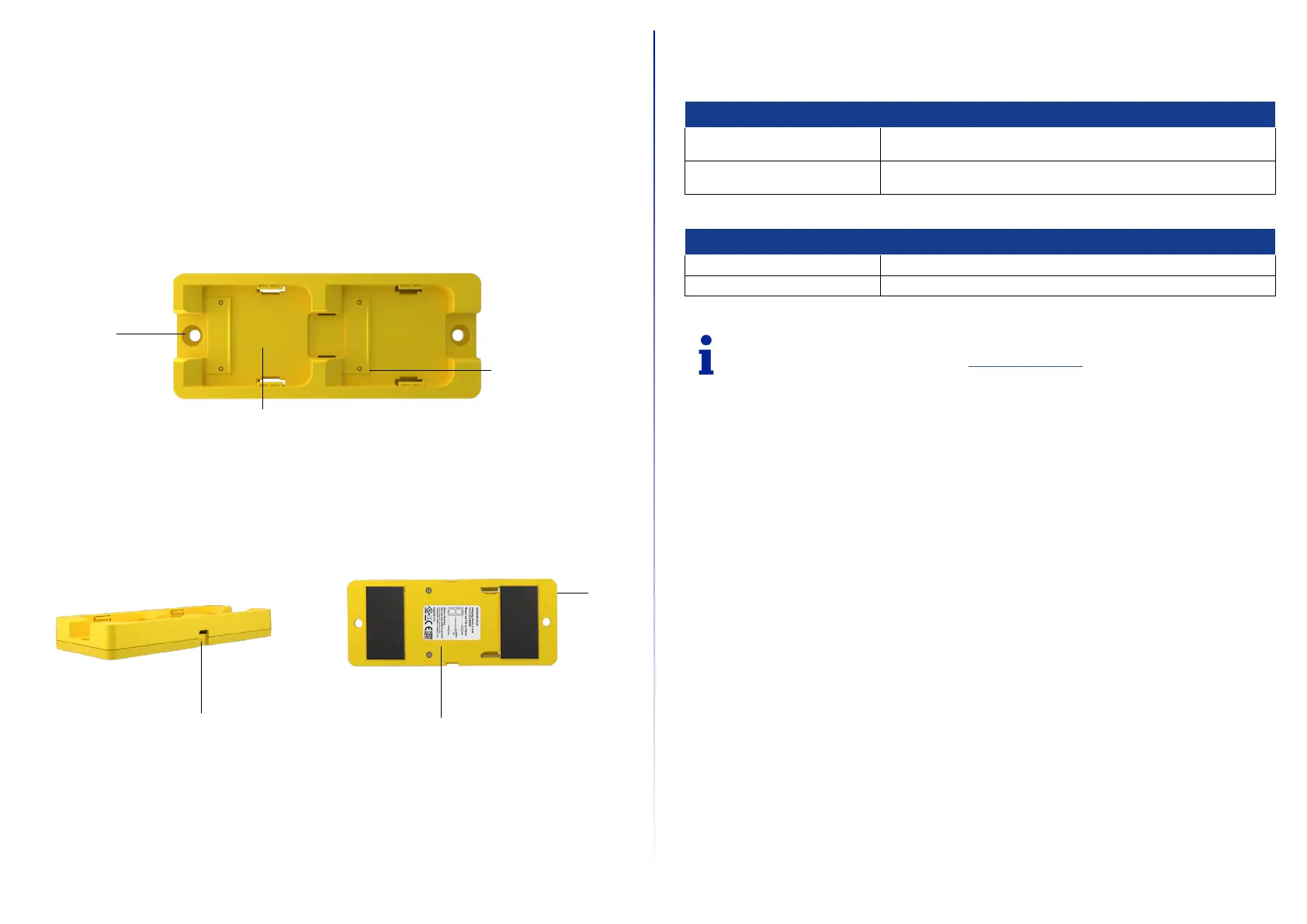

Charging Station
Attachment
opening for
M5 screws
Charging tray
Attachment opening for
cables ties
Charging Station Technical Data
Mechanical properties
Dimensions
5.5 x 2.2 x 0.75 in
(140 x 56 x 19 mm)
Weight
3.88 oz
(110 g)
Electrical properties
Power supply 5 VDC (1.2 A) via power supply PS-MCHS7500
Charging time 2 hours
NOTE
Further technical specifications are available at datalogic.com/support.
Pins
Label with serial number
USB-C
