Setting Up the Reader
Quick Reference Guide 3

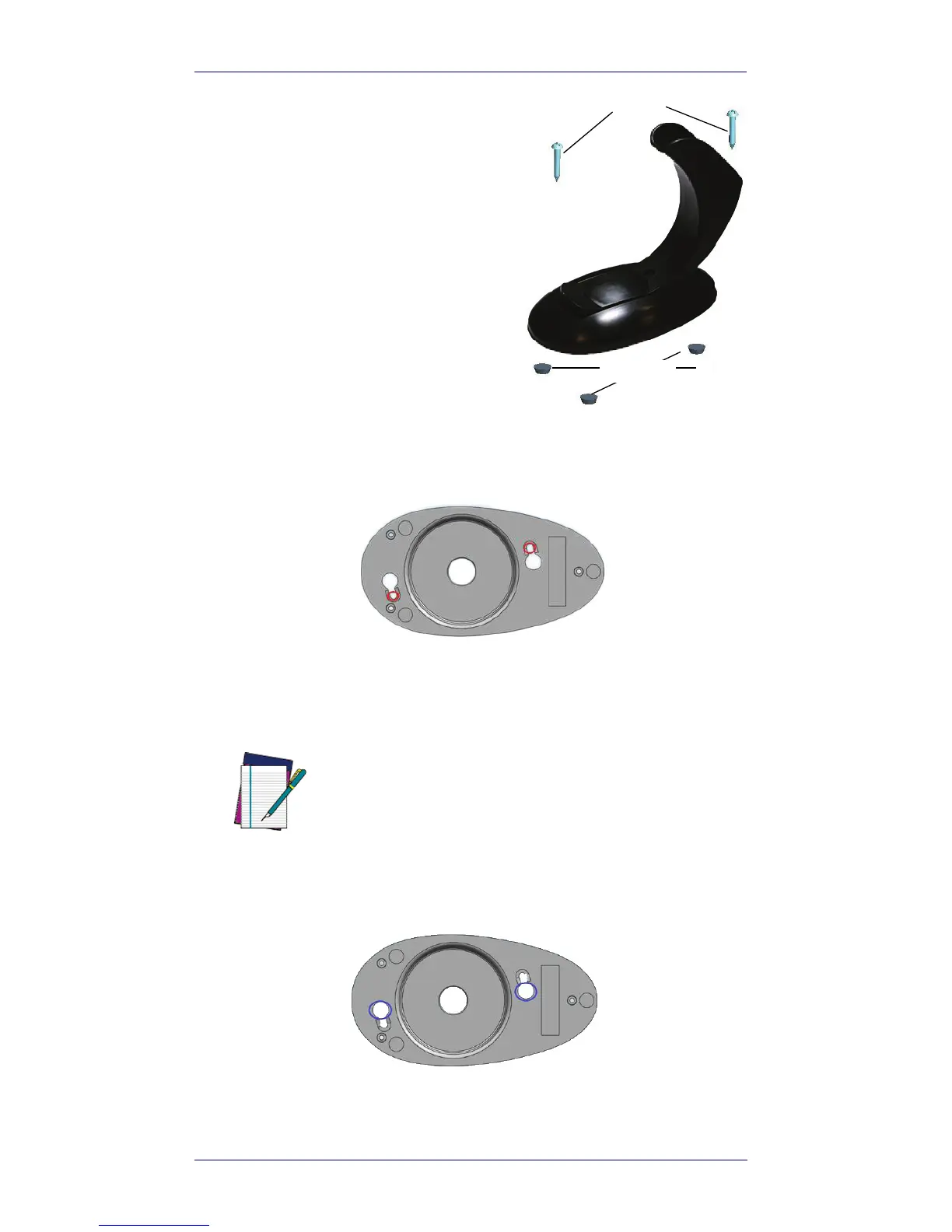

Stand Installation
The stand can be affixed to a flat sur-
face such as a desk or countertop. If
needed, it can also be easily removed.
To install the stand:
1. Remove the protective film from
the rubber feet and adhere them to
the corresponding recessed areas
on the bottom surface of the stand.
2. Use the template mask at the back
of this manual to locate the desired
position of the stand base on the
desk.
3. Use a pen to mark the location of the small holes (shown in red)
on the desk surface. Remove the mask before installing the
screws.
4. Screw the 2 wood screws into the desk, centering in the marked
holes. Leave about 4-5 mm of the screw protruding from the
upper surface of the desk.
5. Set the stand in place on the screws by aligning the large holes
(circled in blue) with the screw heads.
6. Rotate the stand counterclockwise until you feel it lock into
place.
NOTE
On hard surfaces, an electric screwdriver can be used
for easier installation of the screws.
