Remote Scale Display Placement/Installation
Technical Guide 2-21
Viewing Angle
The optimum display angle is directly facing the viewer. Tilt and rotatioin
adjustments can be made as shown in Figure 2-17b. To ensure that dis-
plays are easily readable for customers/cashiers of average height, display
heads should be between 48” to 60” (122 to 152 cm) from the floor.

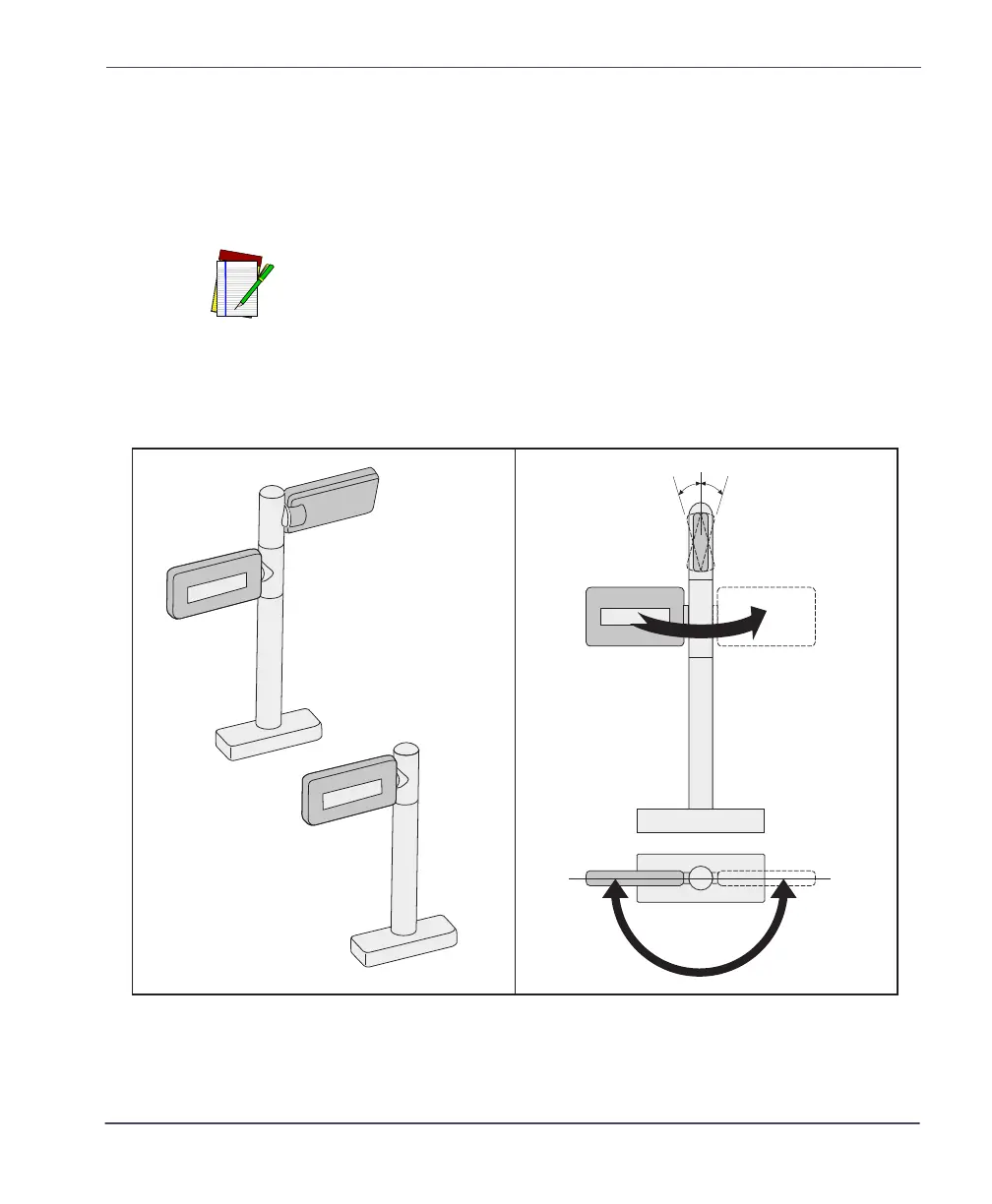

Figure 2-17. Modular/Adjustable Remote Scale Display
NOTE
Check with local Weights and Measures authorities regarding proper posi-
tioning of scale displays used in retail trade.
180˚
Rotation
15˚
Upward or
Downward Tilt
180˚
Rotation
15˚ 15˚
Dual Display
Heads
Single Display
Head
a b
