RAPID CONFIGURATION
14
P2X-SERIES™

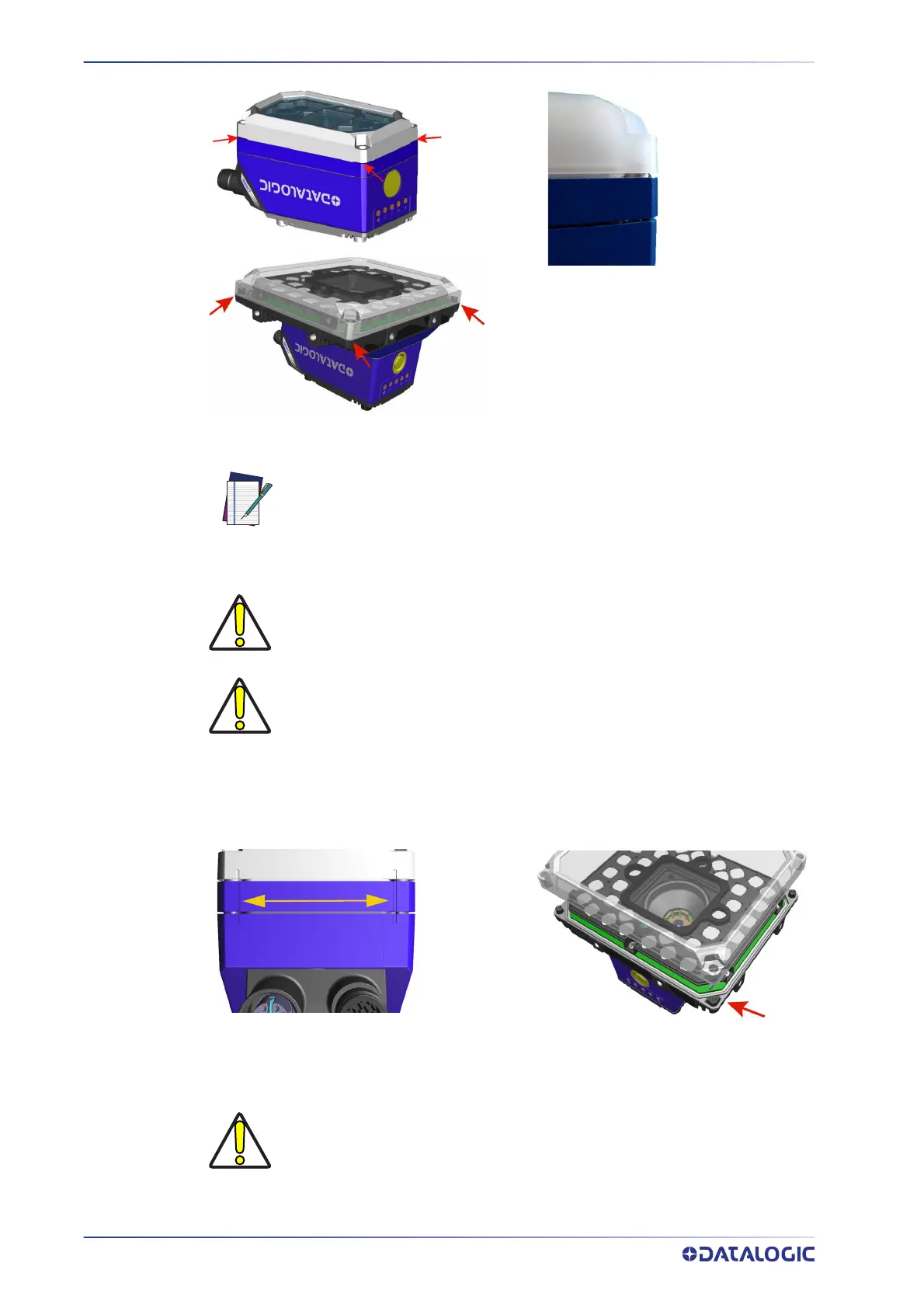

Figure 2 - Removing the cover (14 and 36 LEDs models)
To replace the cover
1. The cover has a predefined mounting direction. Make sure to align the identifica-
tion grooves to the right side. For the 36 LEDs model, the illuminator has one pin
different from the other three: make sure to align this special pin with the corre-
spondent cover seat.
Figure 3 - Aligning the cover (14 and 36 LEDs models)
2. Place the new cover on the reader and press the cover frame edges.
NOTE
Make sure the new cover is free of dust, dirt and fingerprints. If necessary,
wipe it clean using soft material and alcohol. Avoid any abrasive sub-
stances.
CAUTION
The reader must be disconnected from the power supply during the proce-
dure.
CAUTION
Make sure to operate in a dust-free environment during the cover replace-
ment procedure.
CAUTION
To avoid damage, do not press on the window.
