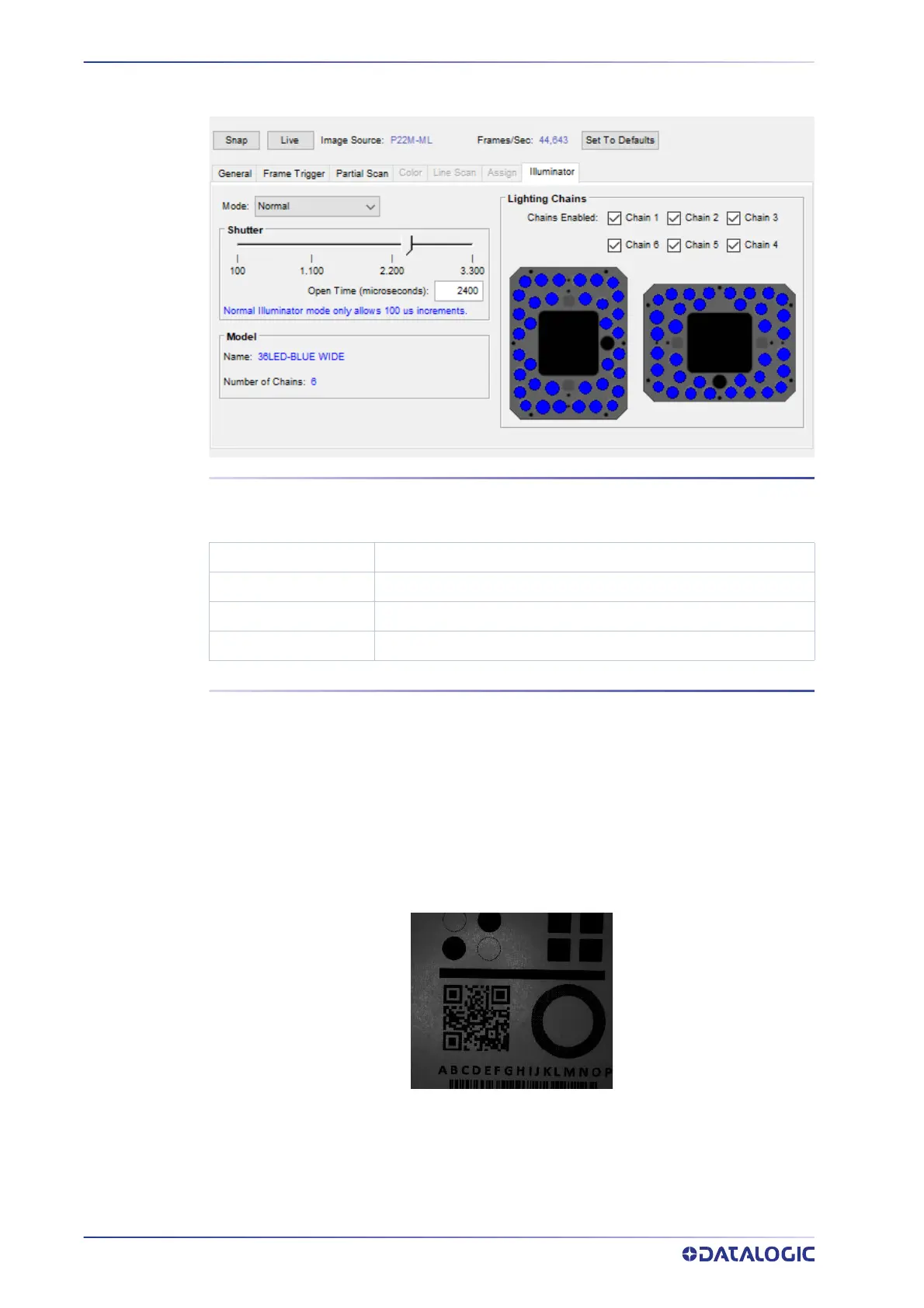

8. Click the Illuminator tab to configure the P2x-Series™ camera’s internal illumina-
tor. The illuminator settings will affect the shutter Open Time range.
MODE
This sets the Internal Illuminator’s operating mode (Disabled, Normal, Power). This also
affects the permitted Shutter Open Time range.
SHUTTER
This is the amount of time the shutter is open. The higher the number, the longer the
shutter is open and the brighter the image. The Mode type affects the Shutter range
limits.
Under-exposure:
To correct this result it is recommended to change the parameters in
the following order:
1. increase the Shutter Open Time
2. increase the Gain
Figure 1 - Example Under Exposure: Too Dark
Over-exposure:
To correct this result, change the parameters in the following order:
1. decrease the Gain
Mode
Shutter Open Time Range (microseconds)
Disabled
27- 800,000
Normal
100-3,300
Power
27-500
To Next Page
