PowerScan® M8300 Configuration
8 PowerScan® M8300
END of procedure. YOUR READER IS NOW READY TO READ CODES.
7.
Read the Bind code to pair the PowerScan
®
M8300 to the BC-80X0 cradle.
The reader is dedicated to the cradle. Any previously bound reader will be
excluded.
To connect several readers to the same cradle see the following section "Using
Multiple Readers with Same Cradle".
Bind
Ì$+RN0$-IÎ
The green LED on the PowerScan
®
M8300 will blink: the reader is ready to be
positioned onto the cradle.

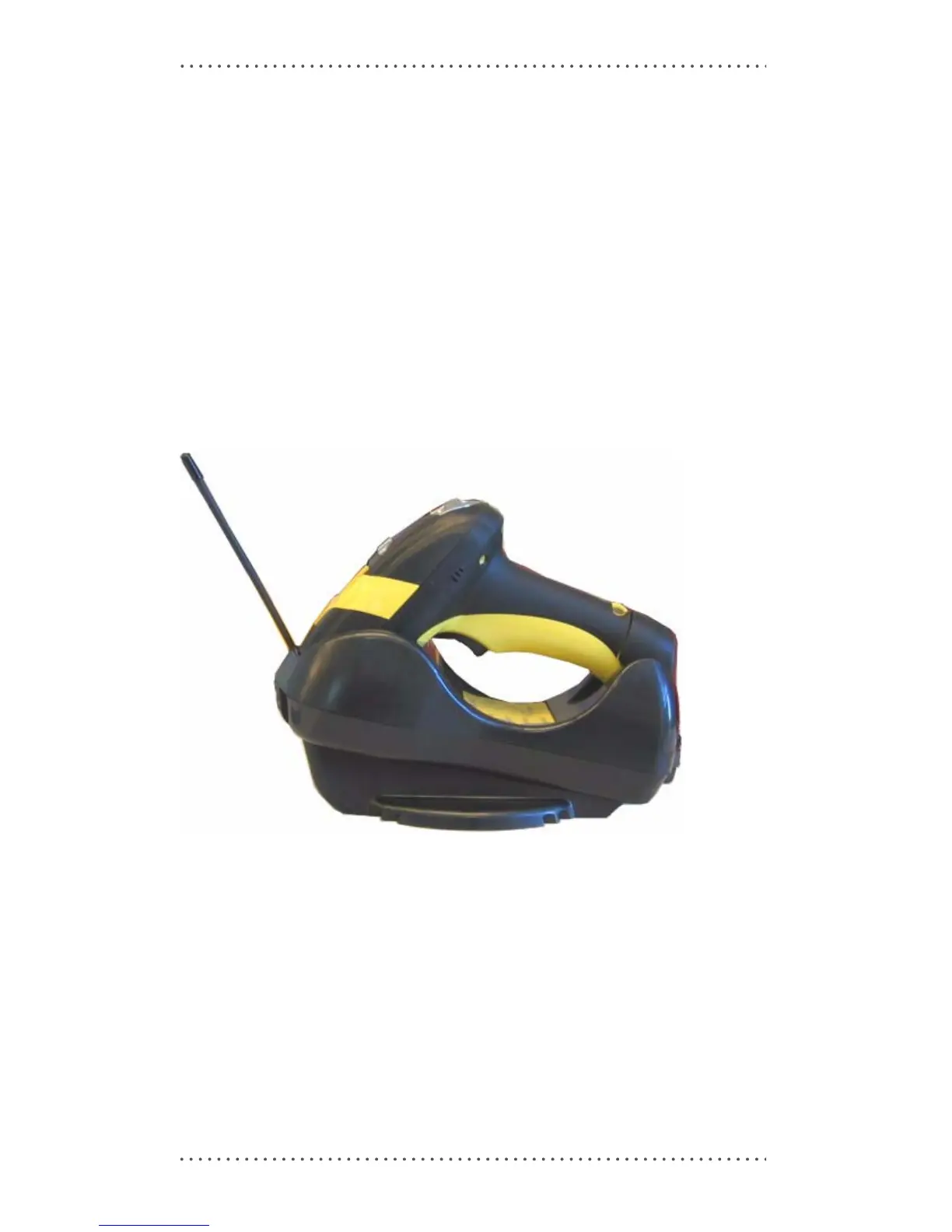

8. Firmly position the reader onto the cradle within 10 seconds, a beep will be
emitted, signaling that the BC-80X0 cradle has been paired to the PowerScan
®
M8300, and the green LED on the reader will go off.
9. Configure the BC-80X0 cradle, refer to the “BC-80X0 Quick Reference”.
Green LED

Datalogic PowerScan M8300 Specifications

General

Scanner type	1D
Maximum range	30 m
Read rate (max)	40 reads/s
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Code 16K, Code 49, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional
Tilt reading angle	-20 - 20 °
Pitch reading angle	-55 - 55 °
Operating time	240 min
Dimensions (WxDxH)	114 x 69 x 210 mm
Bluetooth	No
Operating frequency	910 MHz
Input voltage	10 - 30 V
Battery capacity	2150 mAh
Power requirements	0.33 - 1A
Number of reads per charge	60000
Certification	IP64, China RoHS, EU RoHS, CDRH Class II, IEC 60825-1 Class 2
Keys quantity	3 keys
Product color	Black, Yellow
LED indicators	Charging, Power
Display resolution	32 x 96 pixels
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Weight	393 g
