Datalogic PowerScan M8300 Quick Reference Guide

Using PowerScan® M8300
2 PowerScan® M8300
USING POWERSCAN
®
M8300
The PowerScan
®
M8300 series readers can be used with either an BC-80X0 cradle or
Stargate™ radio base station to build a Cordless Reading System for the collection,
decoding and transmission of barcoded data.
PowerScan
®
M8300 laser readers automatically scan barcodes at a distance. Simply
aim and pull the trigger.

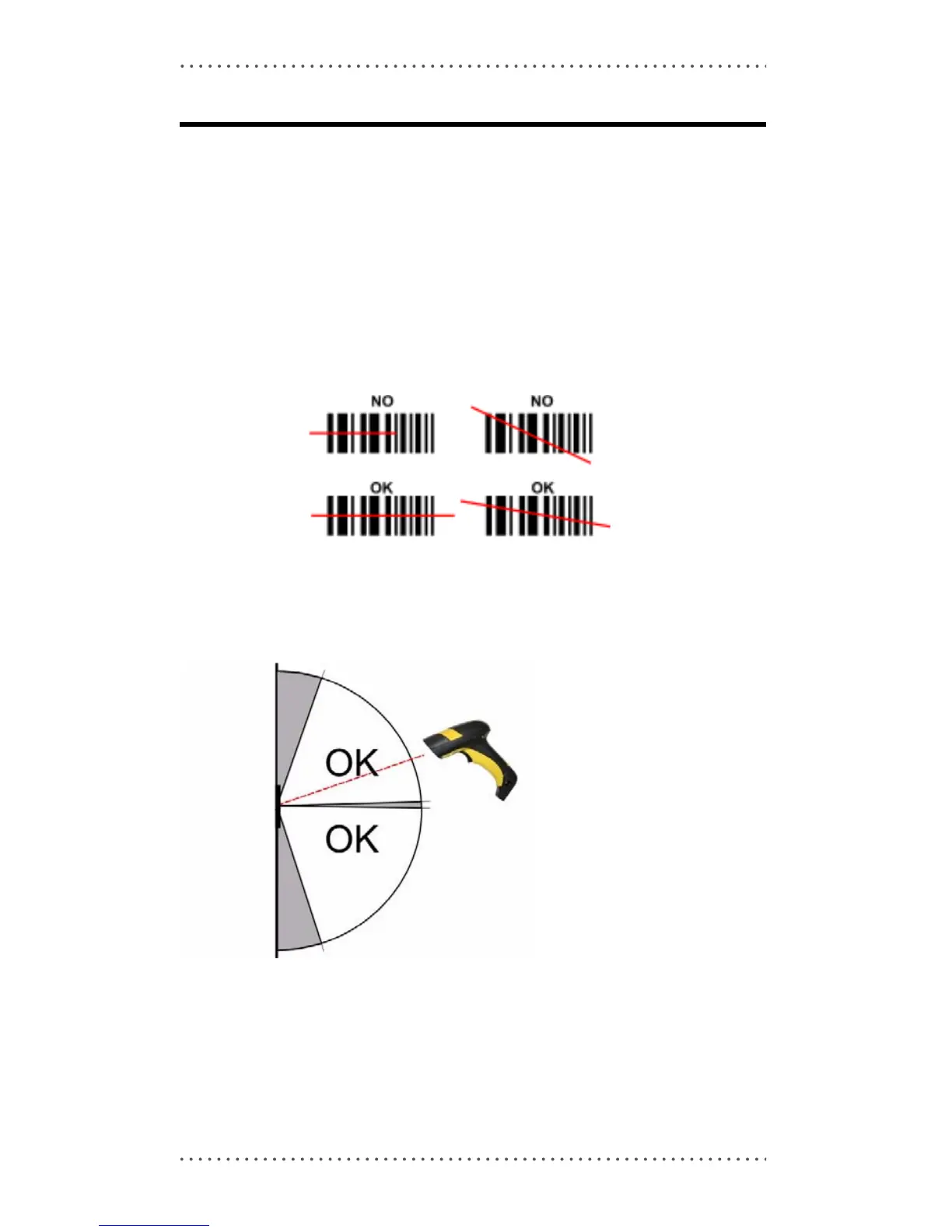

SCAN LINE POSITION
Code scanning is performed along the scan line emitted from the reading window.
This line must cross the entire code. The best reading angles are indicated in the
figure below:
READING ANGLE
Successful scanning is obtained by tilting the reader with respect to the barcode to
avoid direct reflections that impair the reading performance, see the figure below.

Datalogic PowerScan M8300 Specifications

General

Scanner type	1D
Maximum range	30 m
Read rate (max)	40 reads/s
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Code 16K, Code 49, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional
Tilt reading angle	-20 - 20 °
Pitch reading angle	-55 - 55 °
Operating time	240 min
Dimensions (WxDxH)	114 x 69 x 210 mm
Bluetooth	No
Operating frequency	910 MHz
Input voltage	10 - 30 V
Battery capacity	2150 mAh
Power requirements	0.33 - 1A
Number of reads per charge	60000
Certification	IP64, China RoHS, EU RoHS, CDRH Class II, IEC 60825-1 Class 2
Keys quantity	3 keys
Product color	Black, Yellow
LED indicators	Charging, Power
Display resolution	32 x 96 pixels
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Weight	393 g
