Datalogic PowerScan M8300 Quick Reference Guide

PowerScan® M8300 Configuration
6 PowerScan® M8300
POWERSCAN
®
M8300 CONFIGURATION
PowerScan
®
M8300/BC-80X0 Point-to-Point Setup
A rapid configuration procedure has been devised for point-to-point applications
where a single
reader is associated exclusively with its own BC-80X0 base station and
where it is not necessary to set the Date and Time parameters.
A special pre-printed bind-address label provided in the BC-80X0 base station
package can be used to bind the PowerScan
®
M8300 reader to the base station with
the address coded on the label. The address is also written numerically on the label to
be easily recognized. Valid addresses are in the range from 0000 to 1999. Make sure
that all cradles used in the same area have different addresses.
To rapidly configure your point-to-point application:
END of procedure. YOUR READER IS NOW READY TO READ CODES.
1. Apply the bind-address label onto the BC-80X0 base station as indicated in
the BC-80X0 Quick Reference Manual.
2. When the BC-80X0 cradle is connected and powered, read the
Bind-Address label to pair the PowerScan
®
M8300 to the BC-80X0 cradle.

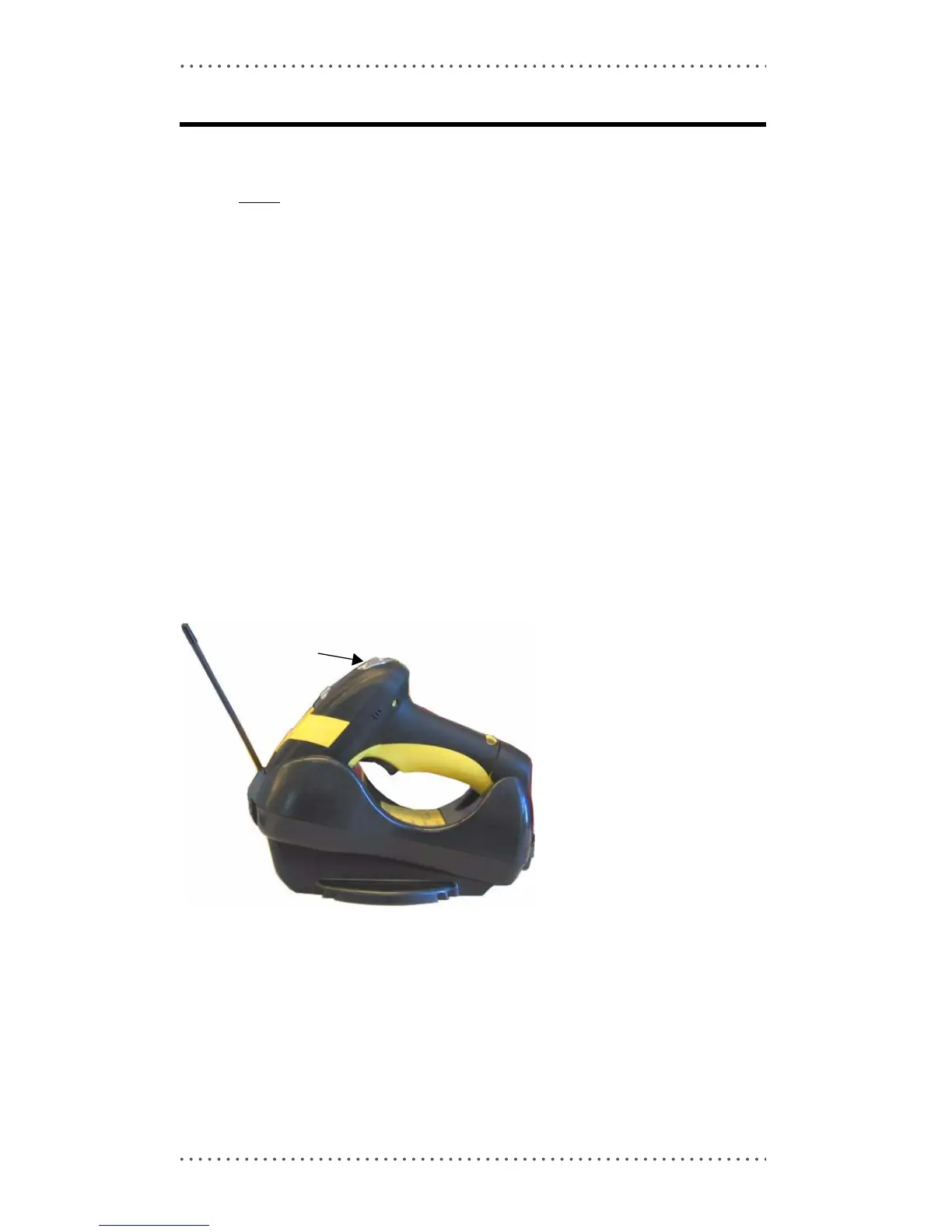

The green LED on the PowerScan
®
M8300 will blink: the reader is ready to be
positioned onto the cradle.
3. Firmly position the reader onto the cradle within 10 seconds, a beep will be
emitted, signaling that the BC-80X0 cradle has been paired to the
PowerScan
®
M8300, and the green LED on the reader will go off.
If it ever becomes necessary to
change the reader, just read the
bind-address label applied to the
cradle and position the new
reader onto the cradle.
Do not use multiple readers with
this configuration method.
4. Configure the BC-80X0 cradle, refer to the “BC-80X0 Quick Reference”.
Green LED

Datalogic PowerScan M8300 Specifications

General

Scanner type	1D
Maximum range	30 m
Read rate (max)	40 reads/s
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Code 16K, Code 49, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional
Tilt reading angle	-20 - 20 °
Pitch reading angle	-55 - 55 °
Operating time	240 min
Dimensions (WxDxH)	114 x 69 x 210 mm
Bluetooth	No
Operating frequency	910 MHz
Input voltage	10 - 30 V
Battery capacity	2150 mAh
Power requirements	0.33 - 1A
Number of reads per charge	60000
Certification	IP64, China RoHS, EU RoHS, CDRH Class II, IEC 60825-1 Class 2
Keys quantity	3 keys
Product color	Black, Yellow
LED indicators	Charging, Power
Display resolution	32 x 96 pixels
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Weight	393 g
