Datalogic PowerScan M8300 Quick Reference Guide

Compliance
Quick Reference Guide 17
The laser scanner utilizes a low-power laser diode. Although staring directly at the
laser beam momentarily causes no known biological damage, avoid staring at the
beam as one would with any very strong light source, such as the sun. Avoid that the
laser beam hits the eye of an observer, even through reflective surfaces such as
mirrors, etc.

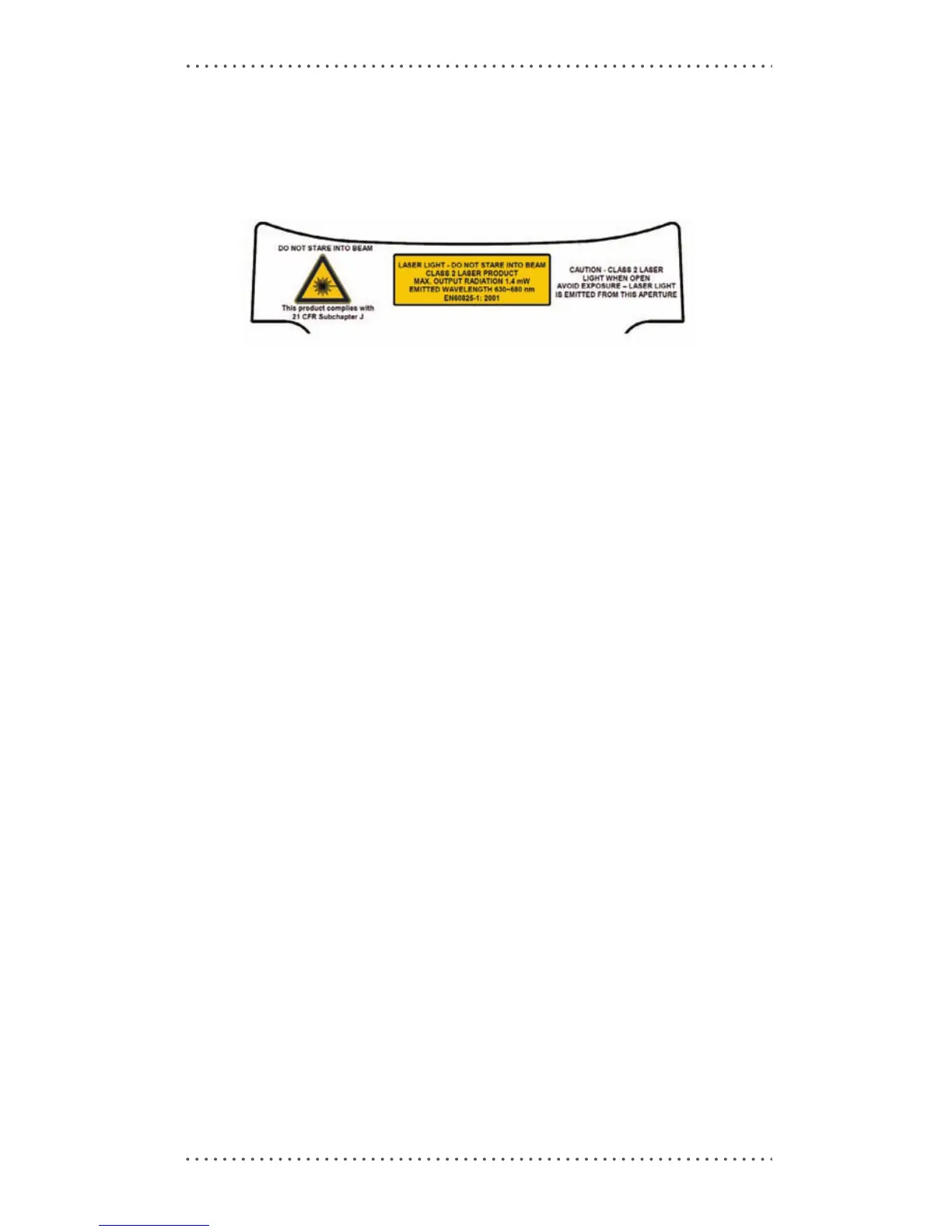

The following information is shown on the laser scanner device class label:
LED CLASS
Class 1 LED product.
This product conforms to EN60825-1:2001.
IC (INDUSTRY CANADA)
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
ITALIANO
Classe 2:
LUCE LASER
NON FISSARE IL RAGGIO
APPARECCHIO LASER DI
CLASSE 2
DEUTSCH
Klasse 2:
LASERSTRAHLUNG
NICHT IN DEN STRAHL
PRODUKT DER LASERKLASSE 2
FRANÇAIS
Classe 2:
RAYON LASER
EVITER DE REGARDER LE
RAYON
APPAREIL LASER DE
CLASSE 2
ESPAÑOL
Clase 2:
RAYO LÁSER
NO MIRAR FIJO EL RAYO
APARATO LÁSERDE CLASE 2

Datalogic PowerScan M8300 Specifications

General

Scanner type	1D
Maximum range	30 m
Read rate (max)	40 reads/s
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Code 16K, Code 49, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional
Tilt reading angle	-20 - 20 °
Pitch reading angle	-55 - 55 °
Operating time	240 min
Dimensions (WxDxH)	114 x 69 x 210 mm
Bluetooth	No
Operating frequency	910 MHz
Input voltage	10 - 30 V
Battery capacity	2150 mAh
Power requirements	0.33 - 1A
Number of reads per charge	60000
Certification	IP64, China RoHS, EU RoHS, CDRH Class II, IEC 60825-1 Class 2
Keys quantity	3 keys
Product color	Black, Yellow
LED indicators	Charging, Power
Display resolution	32 x 96 pixels
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Weight	393 g
