Datalogic PowerScan PBT9501 User Manual

Linking the Reader
Quick Reference Guide 11
Variable PIN Code
Some Bluetooth drivers on the Host (such as WIDCOMM
and BlueSoleil 8) require a Variable PIN Code. When
attempting connection, the application presents a window
that includes a PIN Code which is to be input using the
PowerScan™ PBT9501. Please read the bar code "Variable
PIN Code" and restart the sequence from step 2 above.
When you hear the beep and see the Green LED blinking
indicating the reader is waiting for an alphanumeric entry,
enter the required variable PIN Code by scanning the cor-
responding bar codes in the “Hex-Numeric Keypad” sec-
tion at the back of this manual for alphanumeric entry.

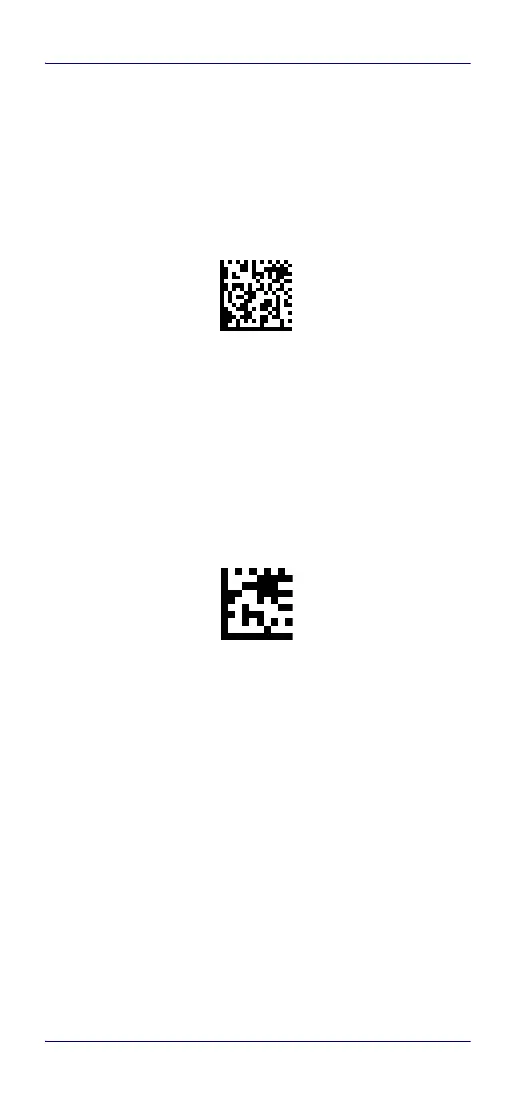

Finish by scanning the
Exit HID Variable PIN Code label.
Exit HID Variable PIN Code
Variable PIN Code

Datalogic PowerScan PBT9501 Specifications

General

Harmonized System (HS) code	84716070
Type	Handheld bar code reader
Wavelength	680 nm
Sensor type	LED
Scanner type	1D/2D
Scanner resolution	0.1016 mm
Tilt reading angle	0 - 360 °
Pitch reading angle	-40 - 40 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	-
Optical sensor resolution (W x H)	864 x 544 pixels
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, QR Code
Bluetooth version	3.0
Operating frequency	433 - 910 MHz
Standard interfaces	Bluetooth, RS-232
Connectivity technology	Wired & Wireless
Certification	IEC 62471
Product color	Black, Yellow
LED indicators	Yes
Image formats supported	BMP, JPEG, TIFF
International Protection (IP) code	IP65
Warranty period	3 year(s)
Sustainability certificates	REACH, RoHS
Battery life	10 h
Battery type	Built-in battery
Charging time	4.5 h
Input voltage	10-30 V
Battery capacity	3350 mAh
Power consumption	150 mA
Power source type	Battery
AC adapter output voltage	110 V
Number of reads per charge	60000
Cables included	DC, RS-232
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	74 mm
Width	110 mm
Height	212 mm
Weight	380 g
