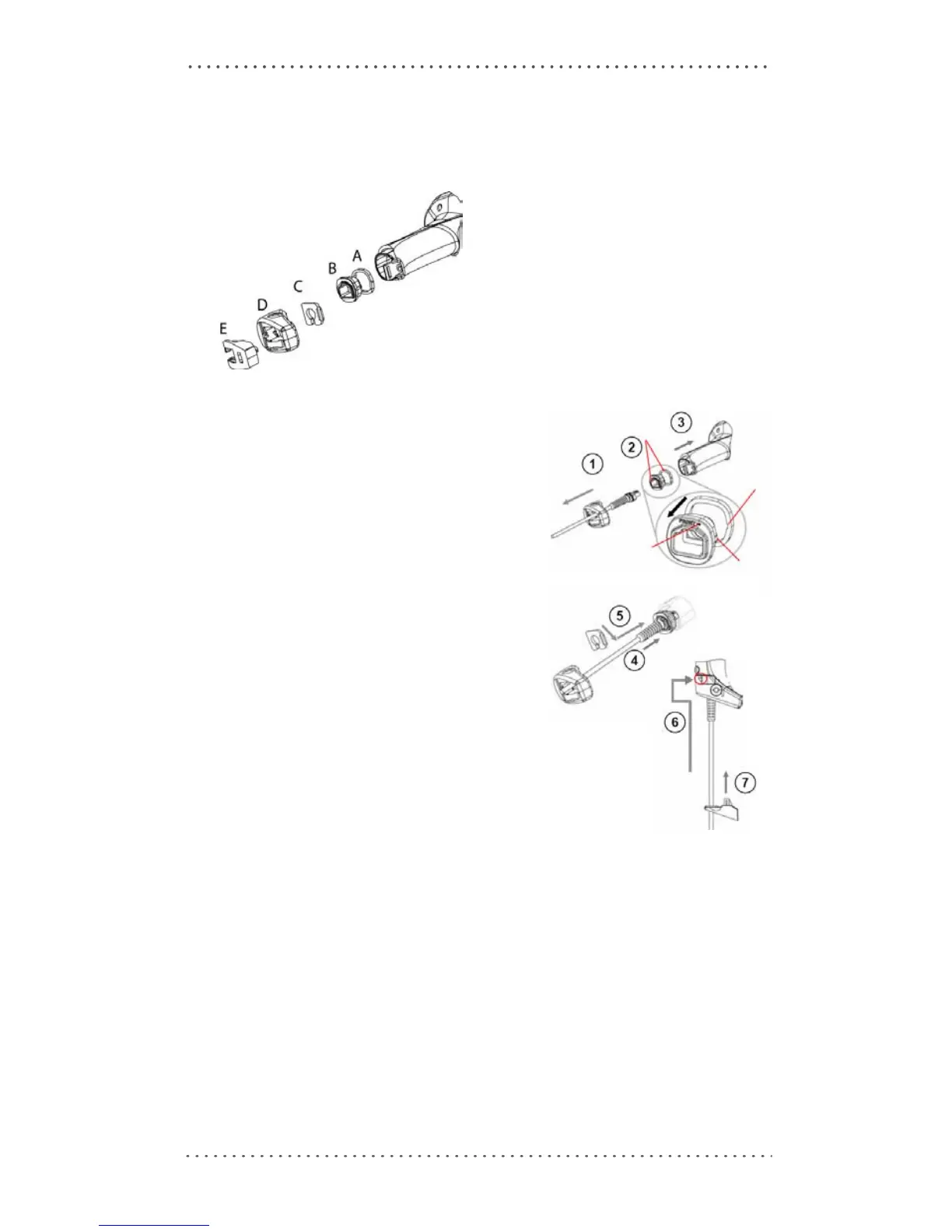

Connecting the Cable
A. Rubber gasket
B. Plastic boot
C. Cable spacer
D. Cover
E. Strain relief
1. Slip the cover over the cable.
2. Push the plastic boot into the rubber
gasket. Take care that the tab on the
plastic boot is aligned with the notch
in the rubber gasket.
3. Push the plastic boot and gasket into
the handle. Ensure that the “Front”
marking on the plastic boot is facing
out, with the arrow pointing towards
the front of the scanner.
4. Insert the cable into the socket of the
plastic boot.
5. Insert the cable spacer into the cable
wire and slide it towards the handle.
6. Push the cover along the cable towards
the reader, and hook it over the yellow
“tooth”.
7. Insert the strain relief into the cover
and tighten the screw to fix the whole
assembly to the reader handle.
