Datalogic QuickScan QS2500 User Manual

10 QS2500
RS-232
CTS = Clear To Send (Hardware Signal)
RTS = Request To Send (Hardware Signal)
Xon = Transmit On (ASCII Code 11
hex
)
Xoff = Transmit Off (ASCII Code13
hex
)
ACK = Acknowledge (ACSII Code 06
hex
)
NAK = Not Acknowledge (ASCII Code 15
hex
)

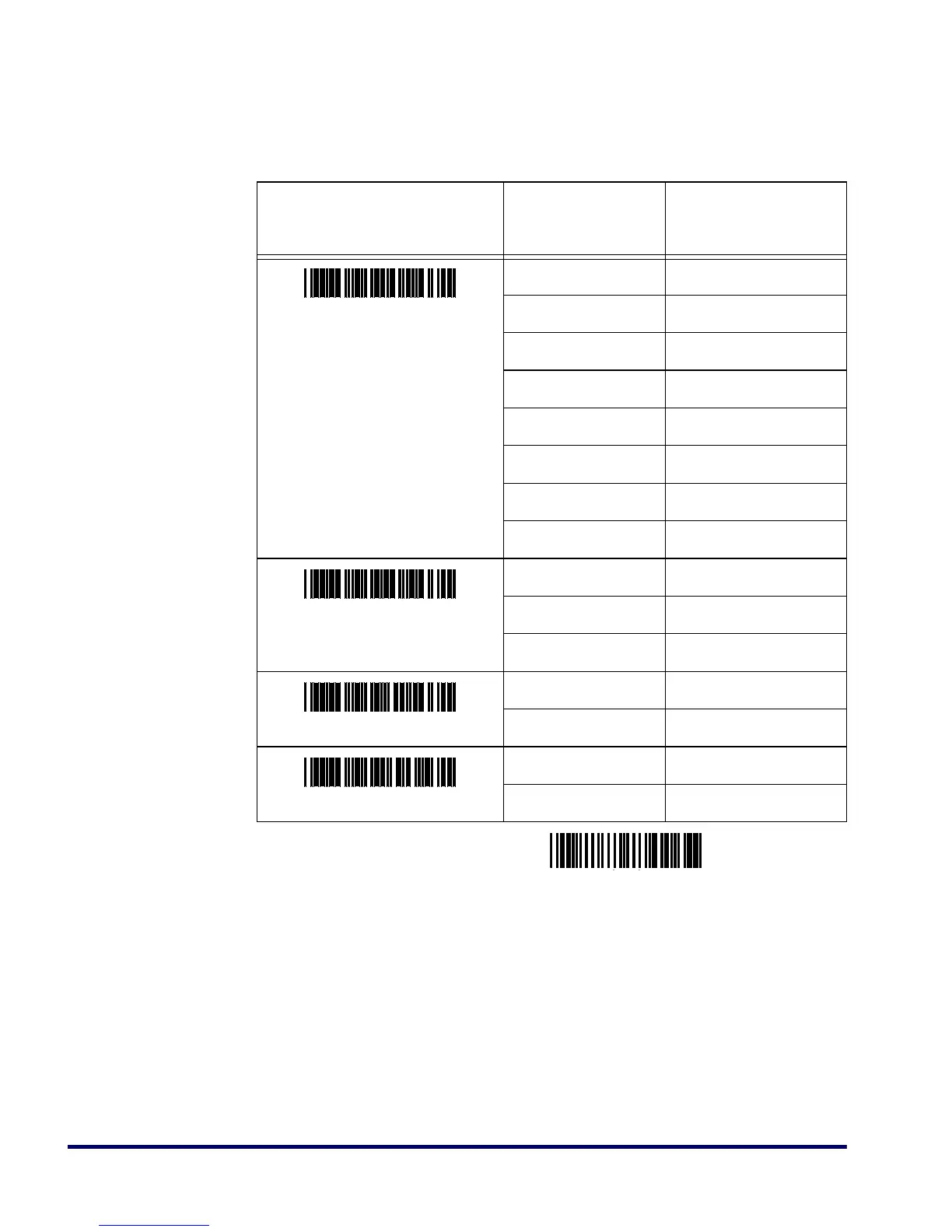

Option Bar Code Option
Alphanumeric
Entry
Baud Rate
300 Baud 00
600 Baud 01
1200 Baud 02
2400 Baud 03
4800 Baud 04
9600 Baud 05*
19200 Baud 06
38400 Baud 07
Parity
None 00*
Odd 01
Even 02
Data Bit
8 bits 00*
7 bits 01
Stop Bit
1 bit 00*
2 bits 01
$$
Exit

Datalogic QuickScan QS2500 Specifications

General

Wavelength	660 nm
Maximum scan area	102/127 mm
Yaw reading angle	-75 - 75 °
Decoding standards	UPC A, E / EAN 8, 13 / JAN 8, 13, Code 128, Code 93, Pharmacode 39, Code 39, Codabar, Interleaved 2 - 5, Industrial 2 - 5, Matrix 2 - 5, GS1 DataBar, UK/Plessey, MSI/Plessey, Code 16K, Telepen, PDF-417, Code 11
Pitch reading angle	-60 - 60 °
Input voltage	5 V
Power consumption	250 mA
Dimensions (WxDxH)	74 x 114 x 185 mm
Certification	UL, cUL, FCC-A, EN 55022-B, VCCI-A, IEC 60825 Class 1 LED, EU RoHS
Product color	Gray
Storage temperature (T-T)	-30 - 65 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	179 g
