Datalogic QuickScan QW2500 User Manual

Setting Up the Reader
QUICK REFERENCE GUIDE 5
SETTING UP THE READER
Follow the steps below to connect and get your reader up
and communicating with its host.
1. First connect the Cable to the reader then to the Host
as shown below.
2. Configure the Interface (see page 11).
3. Program the Reader starting on page page 19
(optional, as needed).

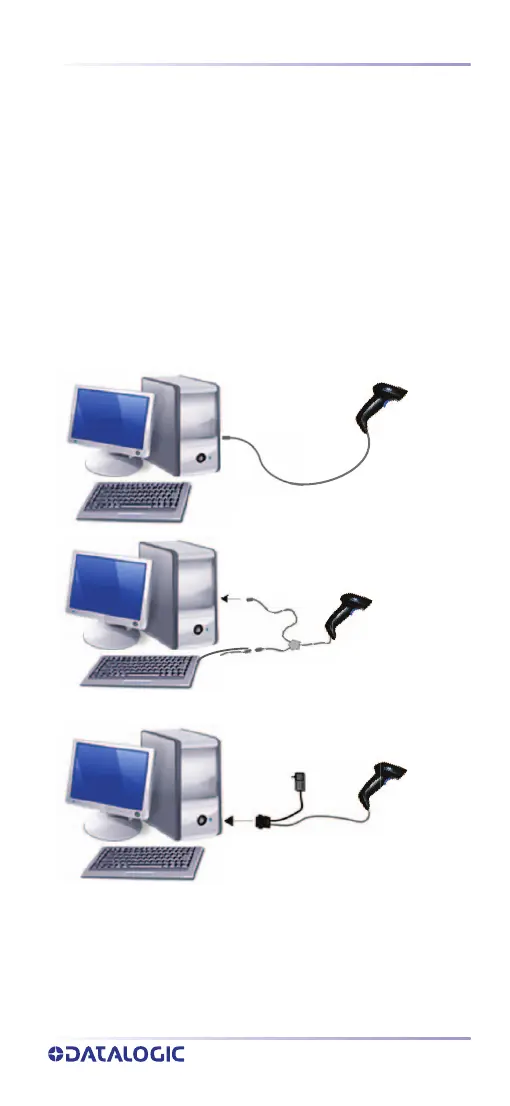

Connecting to the Host Interface
USB
WEDGE
Available only for QuickScan
™
QD2500
RS-232
Available only for QuickScan
™
QD2500

Datalogic QuickScan QW2500 Specifications

General

Brand	Datalogic
Model	QuickScan QW2500
Category	Barcode Reader
Language	English
