PRODUCT REFERENCE GUIDE XIII

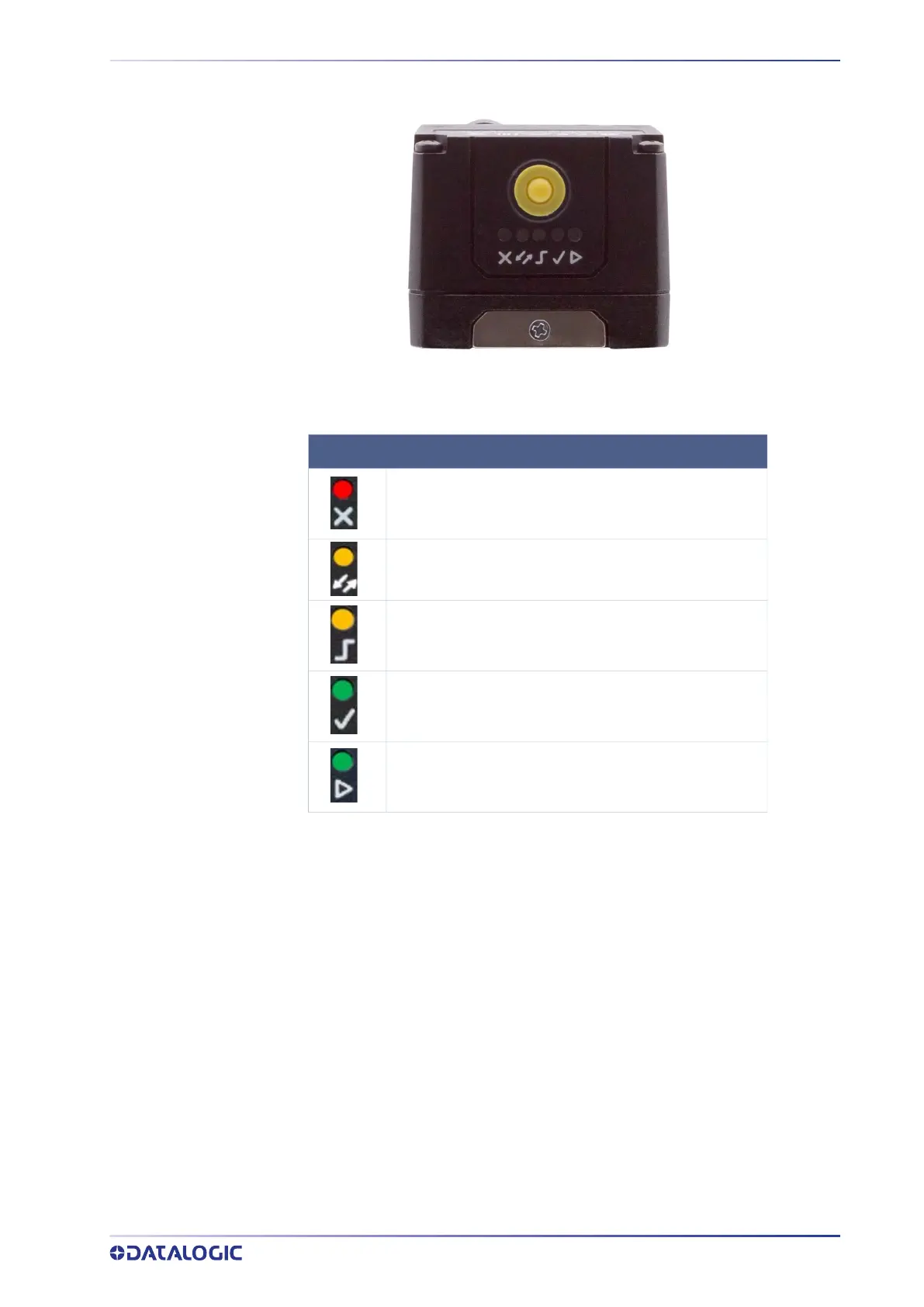

Figure 2 - HMI Interface Details
HMI CONFIGURATION
NO GOOD object
• in Teach phase: blinking, NO GOOD object teaching
• in Run phase: NO GOOD object detected
• for future use
Trigger
• in Teach phase: trigger input status
•in Run phase: trigger received
GOOD object
• in Teach phase: blinking, GOOD object teaching
• in Run phase: GOOD object detected
Run
• steady: device in Run phase
• blinking: Teaching required
