Monitoring

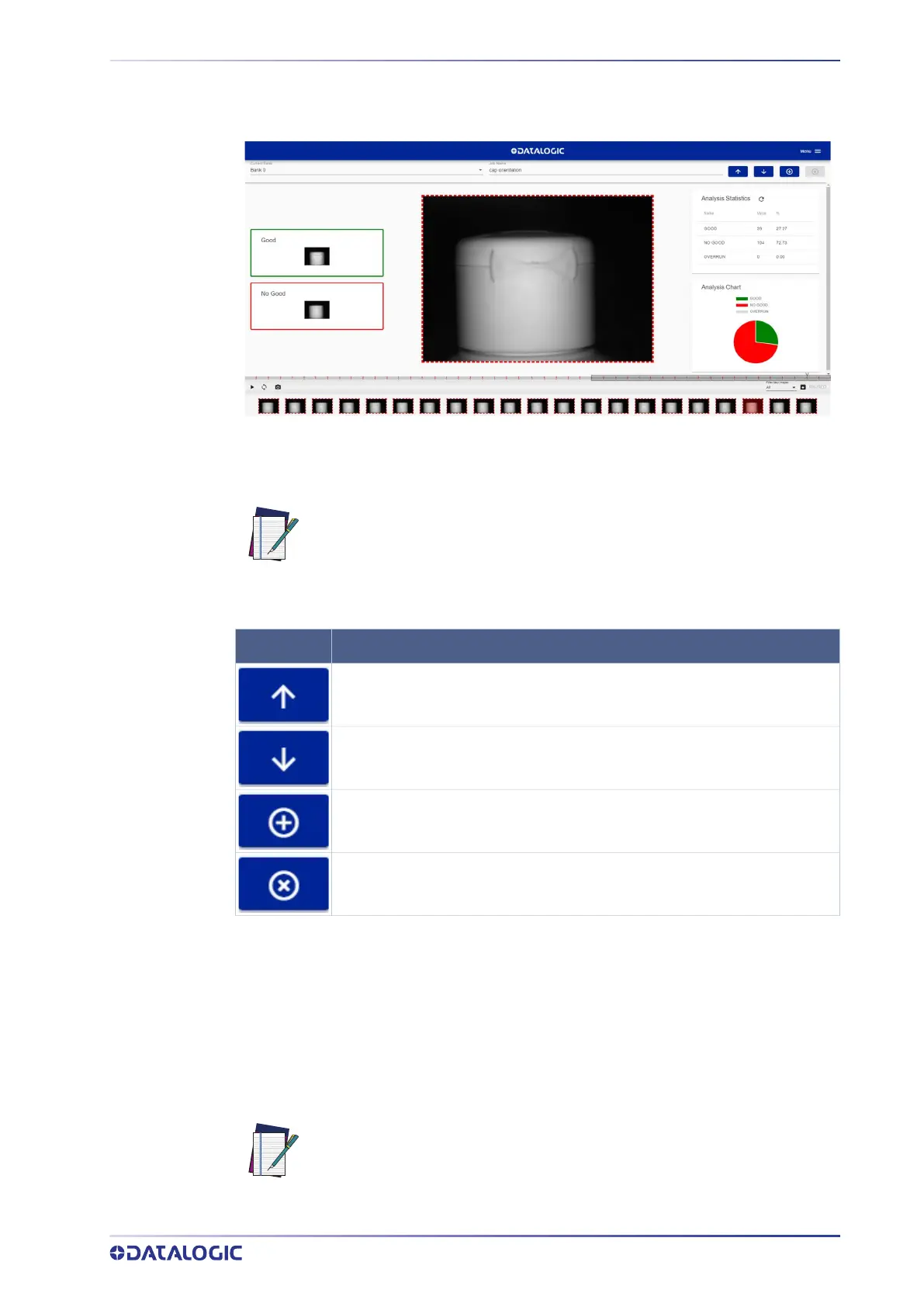

The Monitoring page is divided into an upper bar, a main area, and a bottom bar.
The upper bar contains the job name to the left. Use the drop-down menu to switch to
another job (if present).
Next to the job name, the following icons are present:

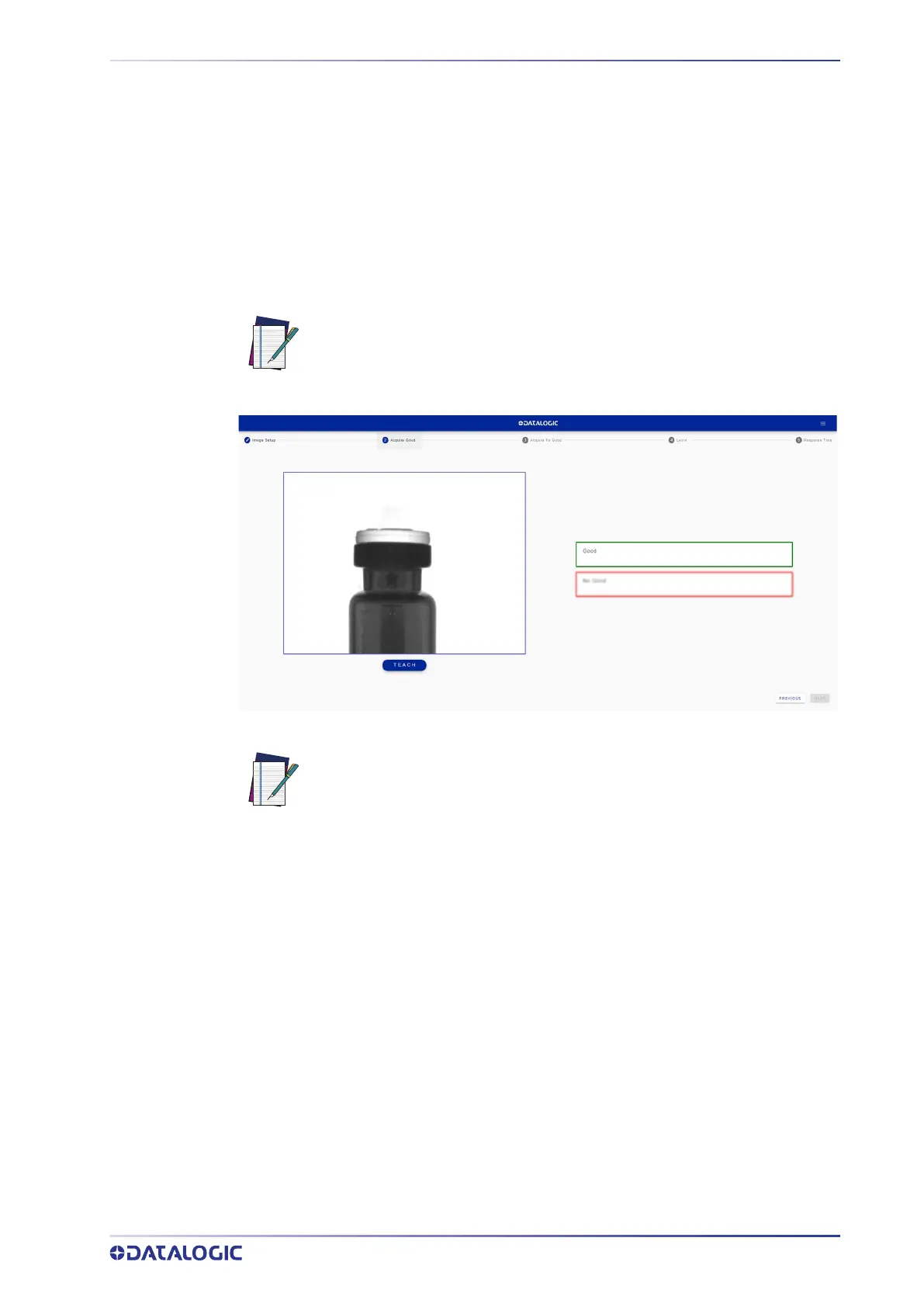

The main area includes:
• the GOOD and NO GOOD boxes to the left;
• the cropping area at the center;
• the statistics box to the right. This shows the statistics concerning the ongoing
acquisitions.
The bottom bar displays an archive of acquisitions (filmstrip).
NOTE: If you want the selected job to be the running and startup job, click
on the Play button before leaving the page.
ICON DESCRIPTION
Upload job: uploads a job from your PC (.svscfg file)
Download job: downloads the current job on your PC
Add new job: switches to the Training wizard to create a new job
Delete job: deletes current job
NOTE: When the device receives no trigger event, the Monitoring page only
displays the statistics box to the right and a blank filmstrip.
