Datalogic VS-CRX - General View

XII SMART-VS
GENERAL VIEW

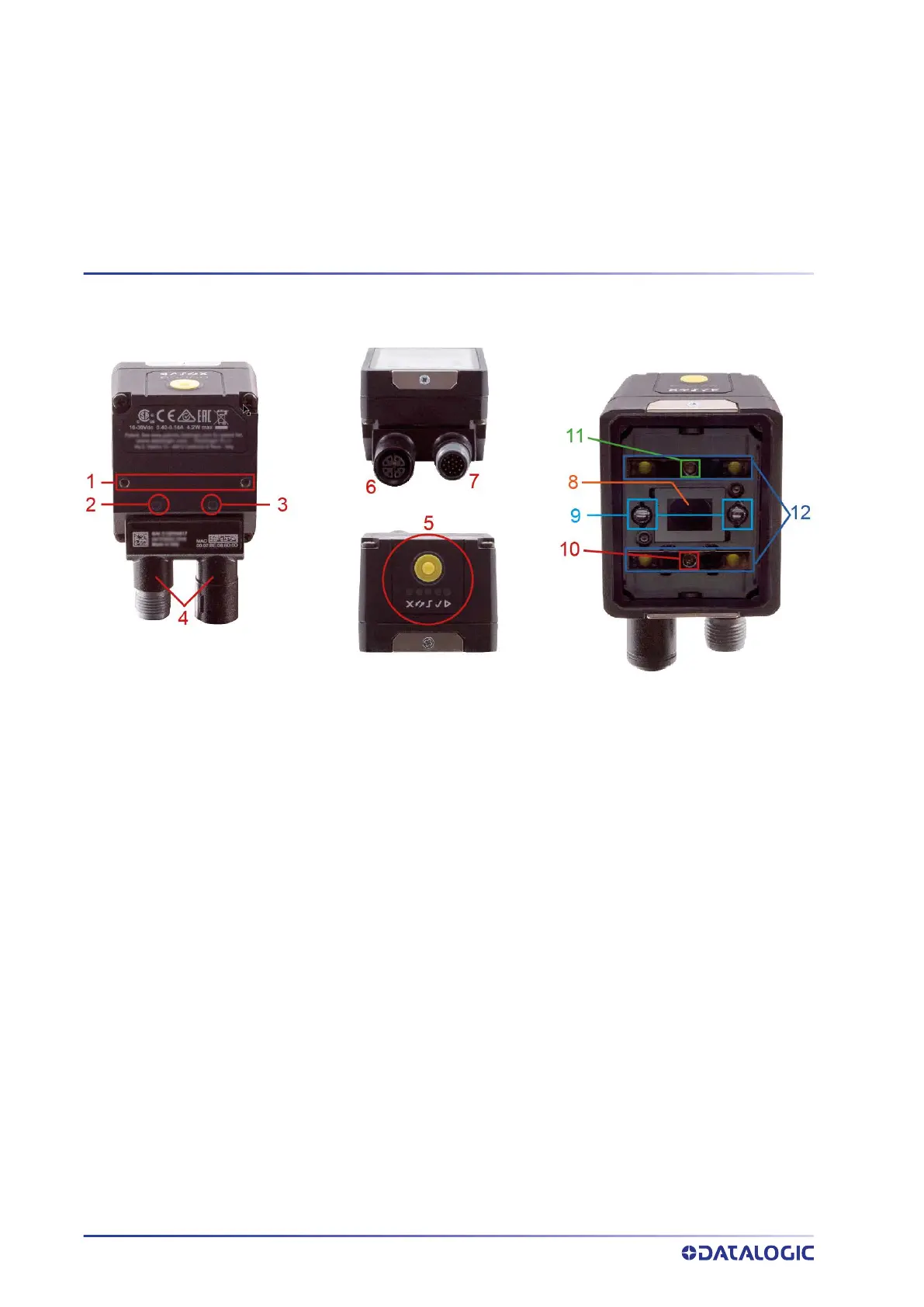

Figure 1 - General View
1. Bracket Mounting Holes (2) 7. Power - I/O Connector
2. Power On LED 8. Lens
3. Ethernet Connection LED 9. LED Aiming System
4. 90° Rotating Connector Block 10. Red Spot (NO GOOD)
5. HMI Interface 11. Green Spot (GOOD)
6. Ethernet Connector 12. White Polarized Illuminators
