CHAPTER 1
RAPID CONFIGURATION
CONNECT THE SYSTEM
Figure 3 shows an example illustrating how to connect the system. In this layout the
result signals are connected to the PLC while it is possible to configure and monitor the
device by the Host PC.
The device is activated by an External Trigger (photoelectric sensor) when the object
enters its reading zone.

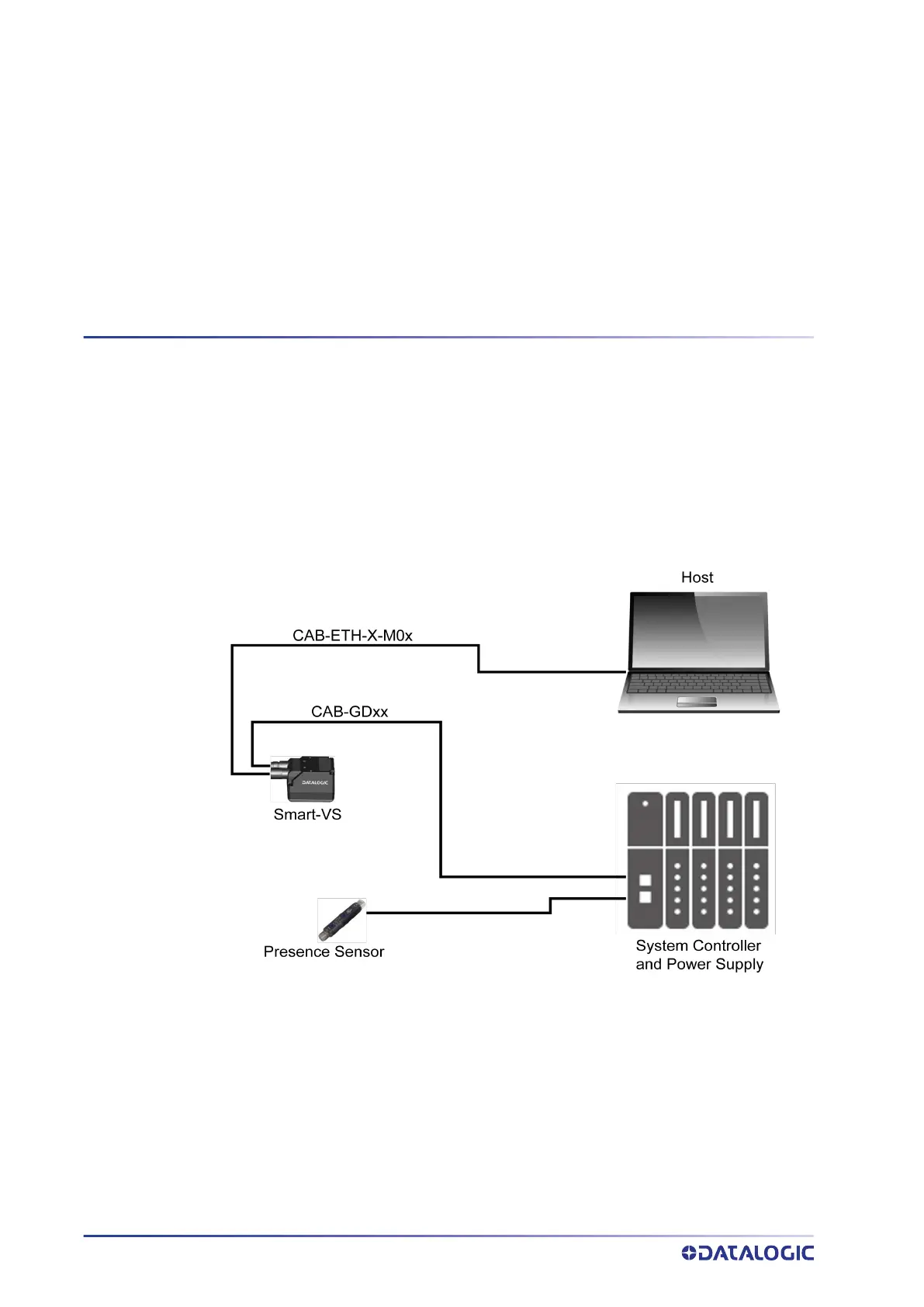

Figure 3 - Smart-VS layout example
