RAPID CONFIGURATION
11 SMART-VS

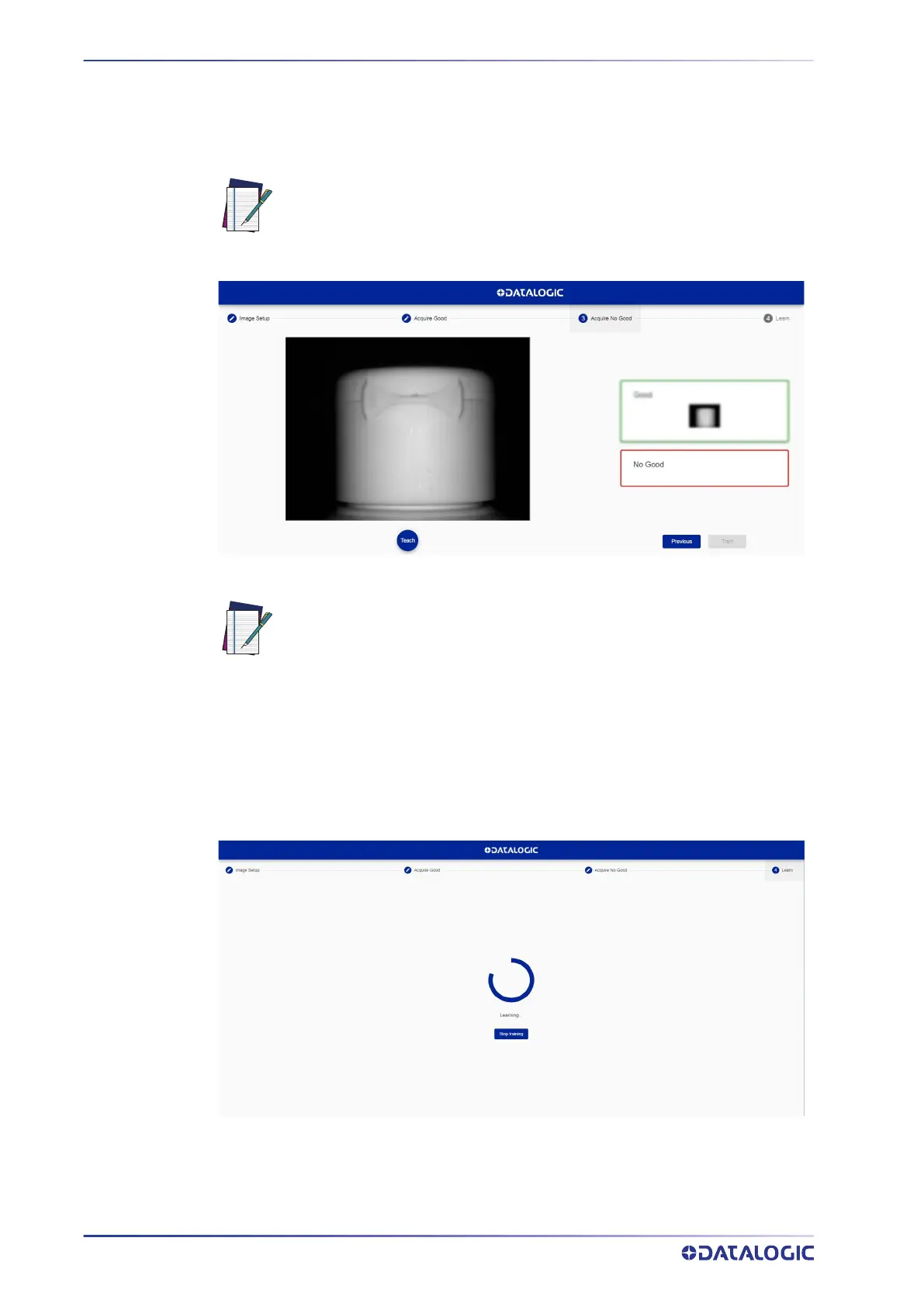

Step 3: Acquire NO GOOD
On the Acquire NO GOOD page, one or more NO GOOD objects can be acquired by
clicking on the Teach button. It is recommended to acquire as many NO GOOD images as
the known number of instances to be treated as NO GOOD.
After adding at least one NO GOOD object, you can click on the Teach button.
Step 4: Learn
This step is completed automatically. If it takes too long, you can stop the procedure
clicking on the Stop training button.
Once the device is trained, the graphic user interface switches to the Monitoring page.
NOTE: The GOOD and NO GOOD boxes can store a total of 6 images, of which
at least one per box. This means that each box can have a maximum of 5
images.
NOTE: Click on an acquired object in the NO GOOD box and select DELETE to
delete it.
