B-4

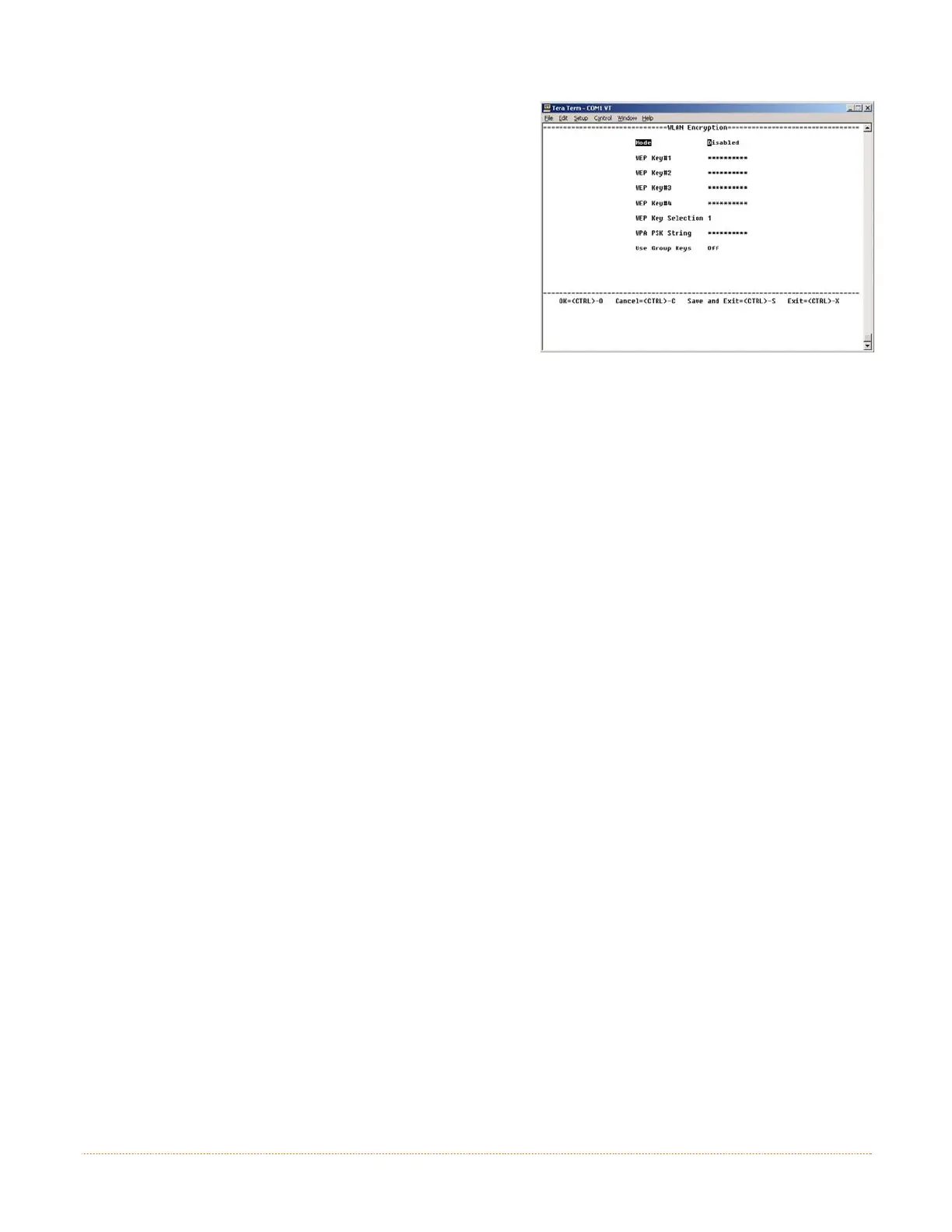

5. If your network requires the use of security, these
settings can be found in the Ports>WLAN>WLAN
Encryption> menu.
6. Once all configuration changes have been made press “CTRL-S” to save your settings and exit the menu.
When prompted to restart the printer, press “Y”.
7. Once the printer has restarted, turn OFF the printer. Close the Tera Term application and remove the
serial cable from the printer.
8. Turn on the printer. The printer should now connect to the configured access point or wired IP.
Once the previous steps have been successfully completed you may now use the IP Address to:
> Install a printer driver, and start printing from your Windows
®
applications. The driver is located on the
“Getting Started CD-Rom” (shipped with the printer).
-or-
> Browse to the printer’s internal web pages for advanced configuration. See section, Printer’s
Internal Web Pages.
