5. Getting Started
5.7 Test Print & Sensor Auto Adjustment

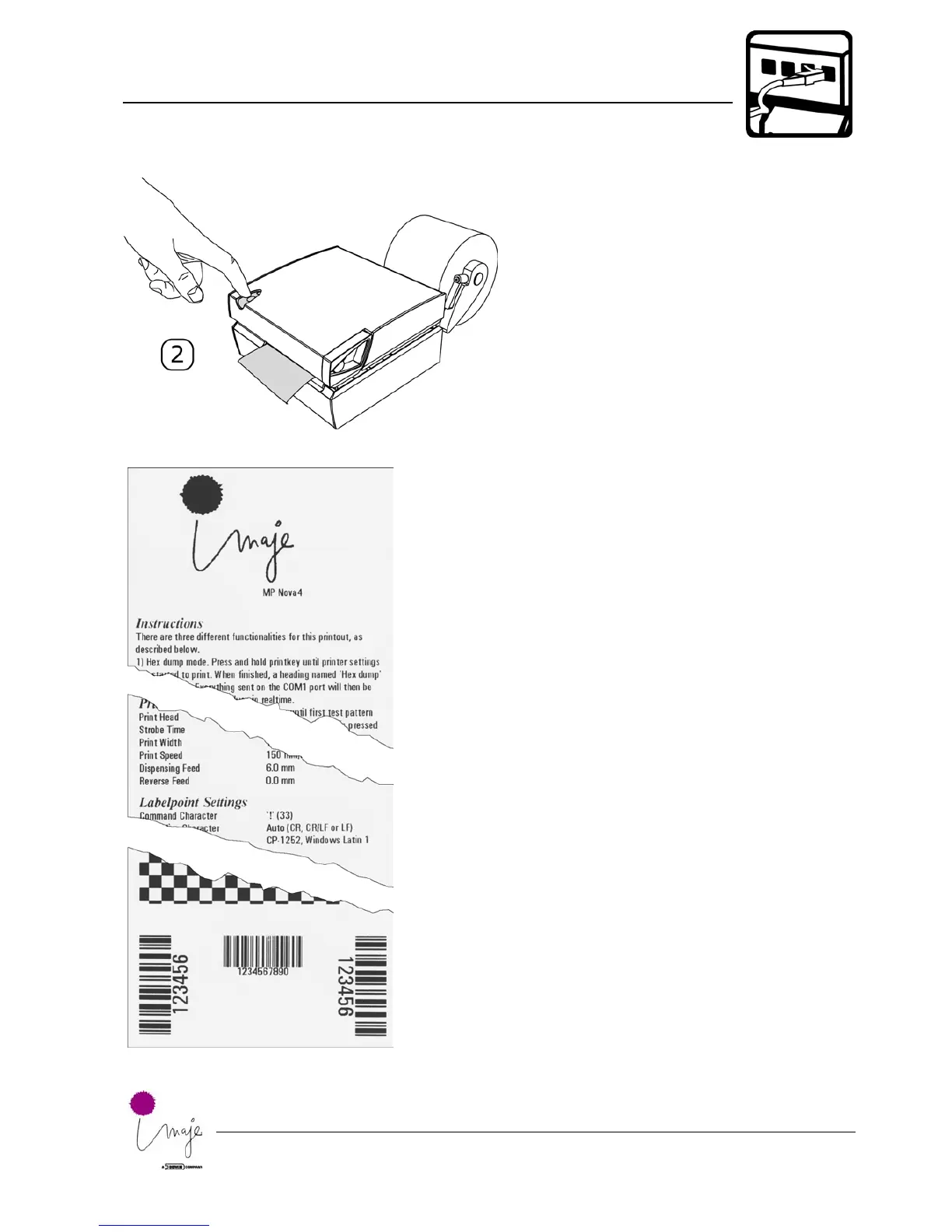

To be sure the printer is
working, and to adjust the media
positioning sensor, MPS, to the
media, make a test printout:
1.
2.
3.
4.
5.
Switch off the printer.
Press the print button.
Switch on the printer and
keep pressing the print
button until the whole
printout is printed and then
for another 7 seconds. This
will start the sensor auto
adjustment.
Release the print button
when auto adjustment starts.
Restart the printer to exit test
print mode. The new settings
are saved automatically.
Note: If the patterns at the
bottom of the test printout are
missing, you released the print
button too soon. Repeat the
process.
If the text and the patterns
look nice, the printout is ok.
To skip the test print, turn off
the printer and wait 15
seconds before switching it
on again.
In case of any trouble, go to
Troubleshooting, chapter 8, for
further information.
