SH4 STANDARD MUTING

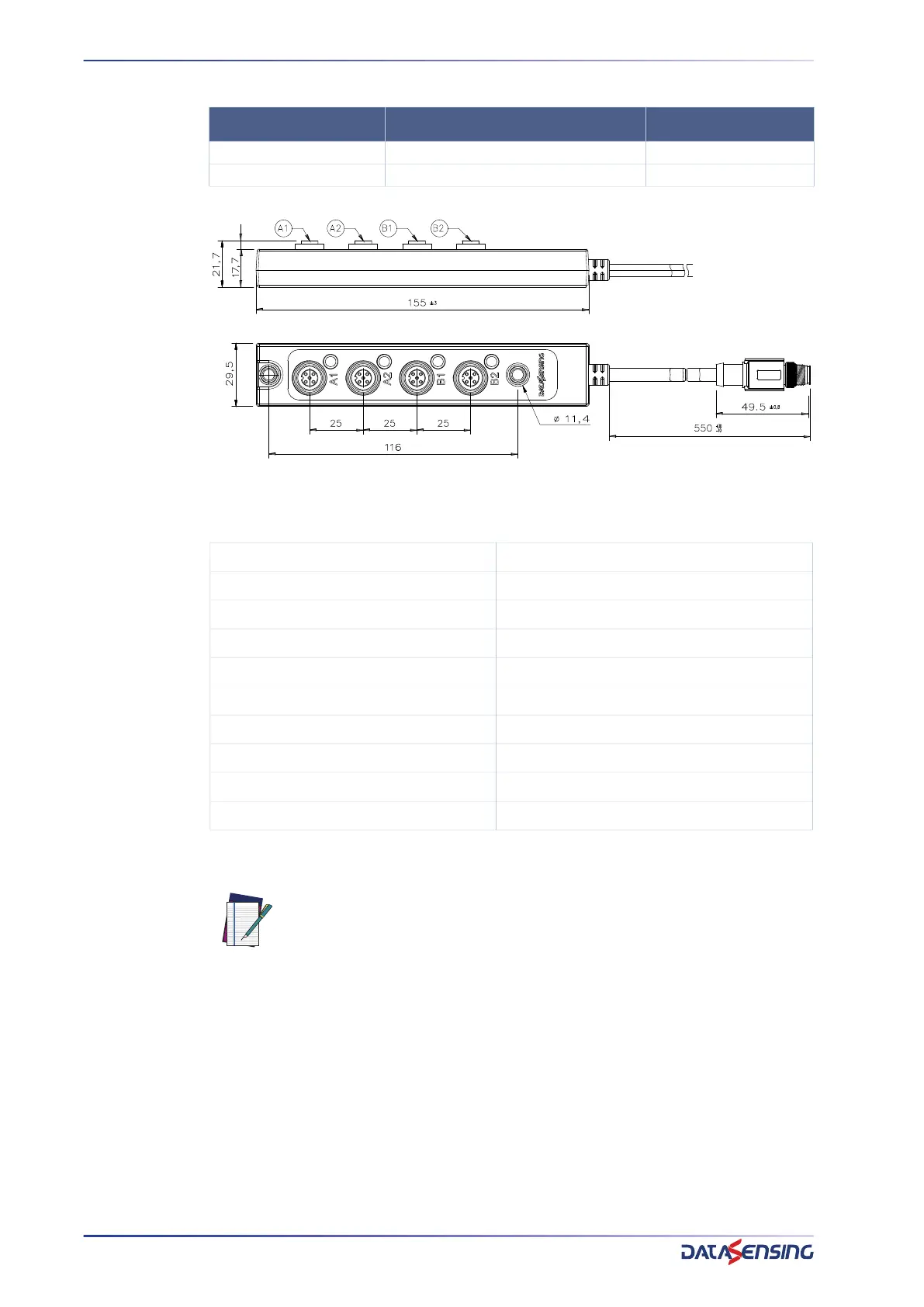

Figure 77 - Dimensions (mm)
MODEL DESCRIPTION CODE
SH-M-CB Connection box 95ASE2500
SG-M-CB-KIT Mounting kit 95ASE2830
Power supply & Switching voltage
+24 Vcc ± 20%
Current load max.
1 A
Insulating resistance
> 10
9
Ω
Mechanical protection
IP 67
Operating temperature
-10° C ... +55° C
Storage temperature
-25° C ... +70° C
Housing material
PVC, Black (UL Recognized)
Housing cable (C2)
PVC, Black (UL Recognized)
Housing connector (C1)
Plug M12-5P A-Coding Male
Housing connectors (A1, A2, B1, B2)
Sockets M12-5P A-Coding Female
NOTE
For each muting system kit the use of the same sensor type is recom-
mended.
