MUTING
PRODUCT REFERENCE GUIDE
51
Partial Muting (SH4-X-XXXX-SM-8 models only)
User can chose to limit muting function effect to selected beam zones. Partial Muting
can be useful in those applications in which the user wants to limit the Muting function
effects to selected zones only.

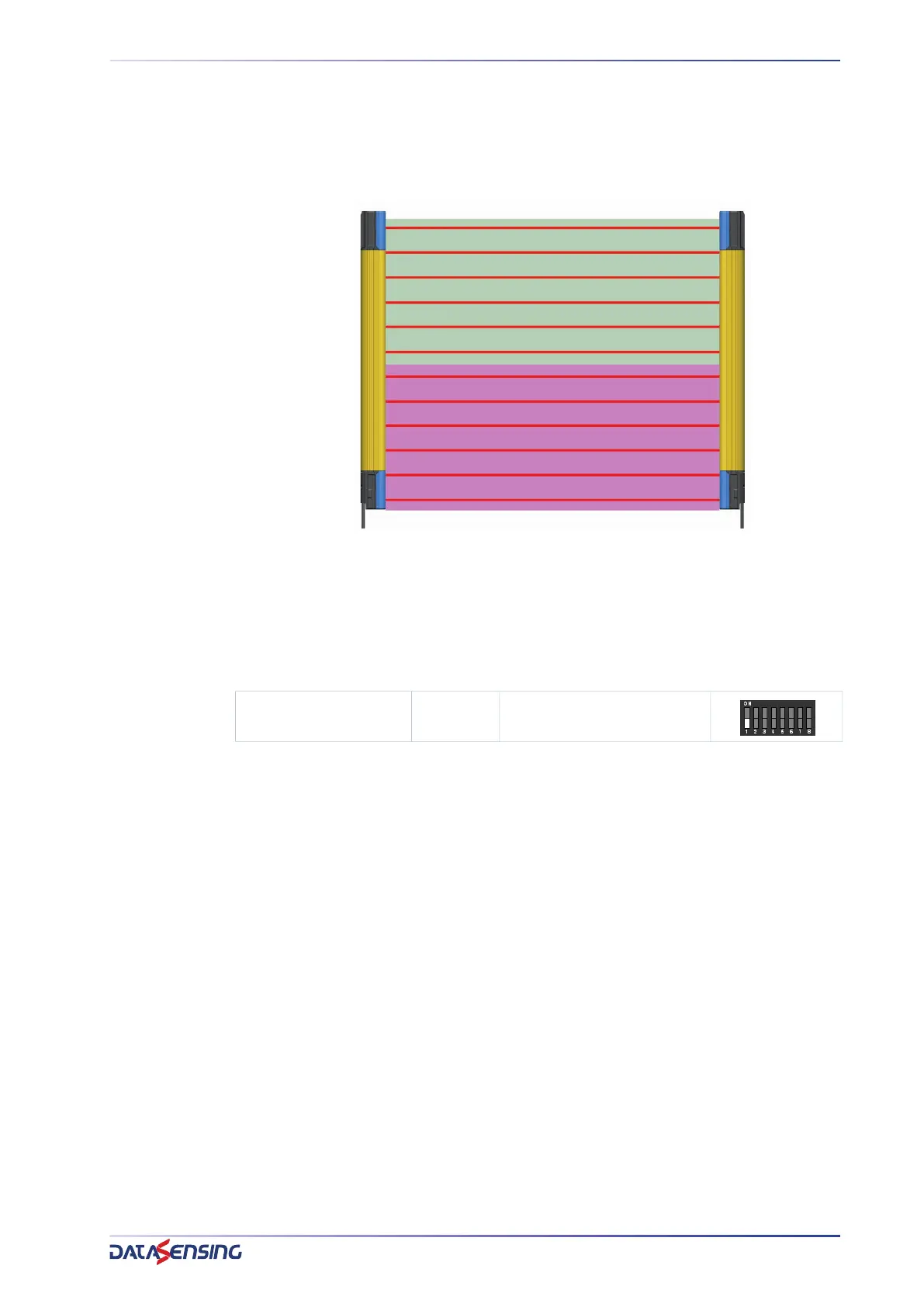

Figure 41: Partial muting
Configuration
Set the Dip switch according to limit muting function effect to selected beam zones:
ZONE B
ZONE A
Partial Muting 1
OFF: Total Muting
ON: Partial Muting
