Datasensing SH4 STANDARD MUTING - Model-Specific Pinouts

ELECTRICAL CONNECTION
PRODUCT REFERENCE GUIDE 27

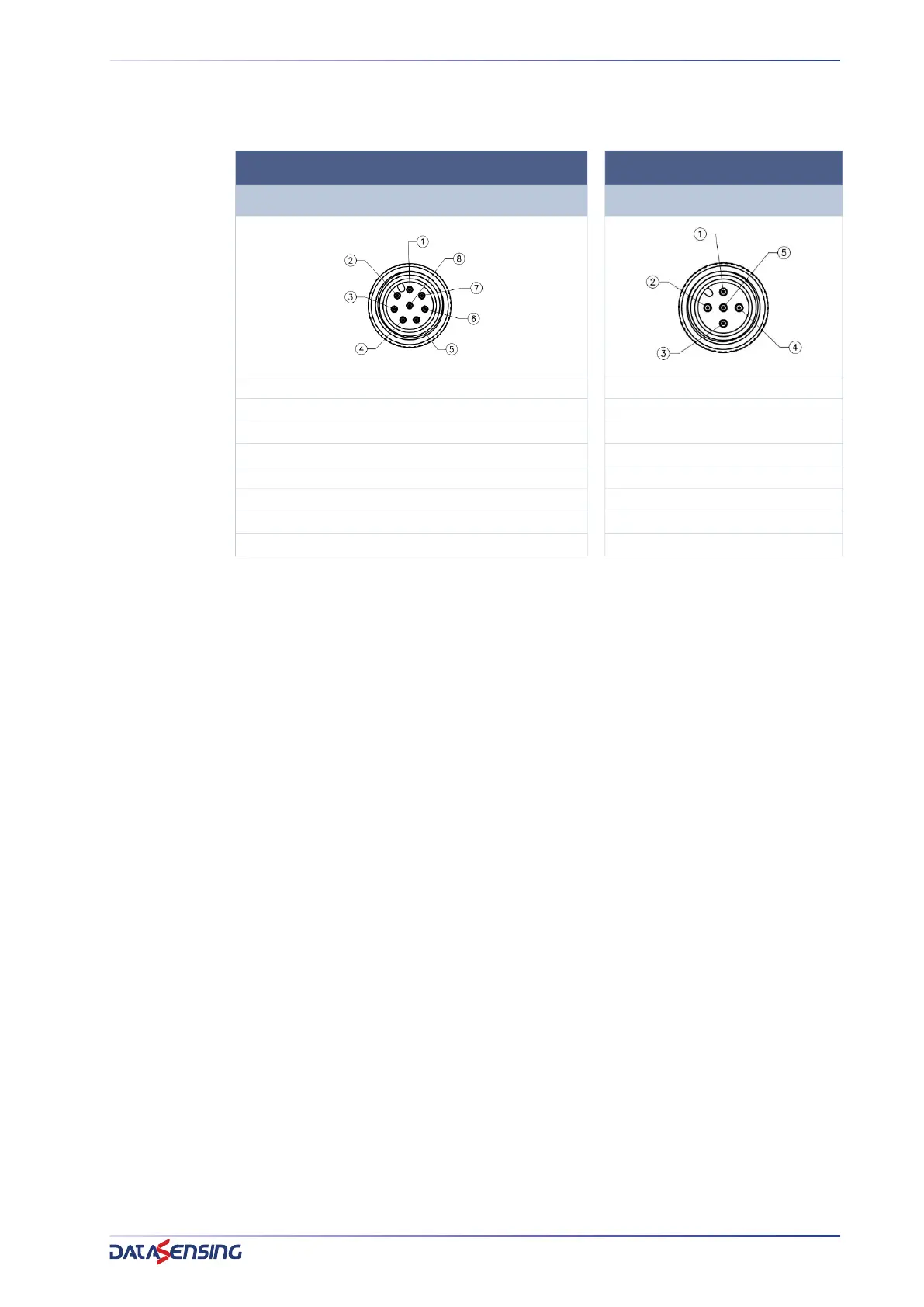

SH4-X-XXXX-SM-8
RECEIVER EMITTER
RX M12 MALE 8 PIN TX M12 MALE 5 PIN
1 - RESET/RESTART/EDM/OVERRIDE (white) 1 - 24V (brown)
2 - 24V (brown) 2 - TEST (white)
3 - MUTING1 (green) 3 - 0V (blue)
4 - MUTING2 (yellow) 4 - CODE (black)
5 - OSSD1 (grey) 5 - COM (grey)
6 - OSSD2 (pink)
7 - 0V (blue)
8 - LAMP (red)
