UM-0085-B09 DT80 Range User Manual Page 391
RG

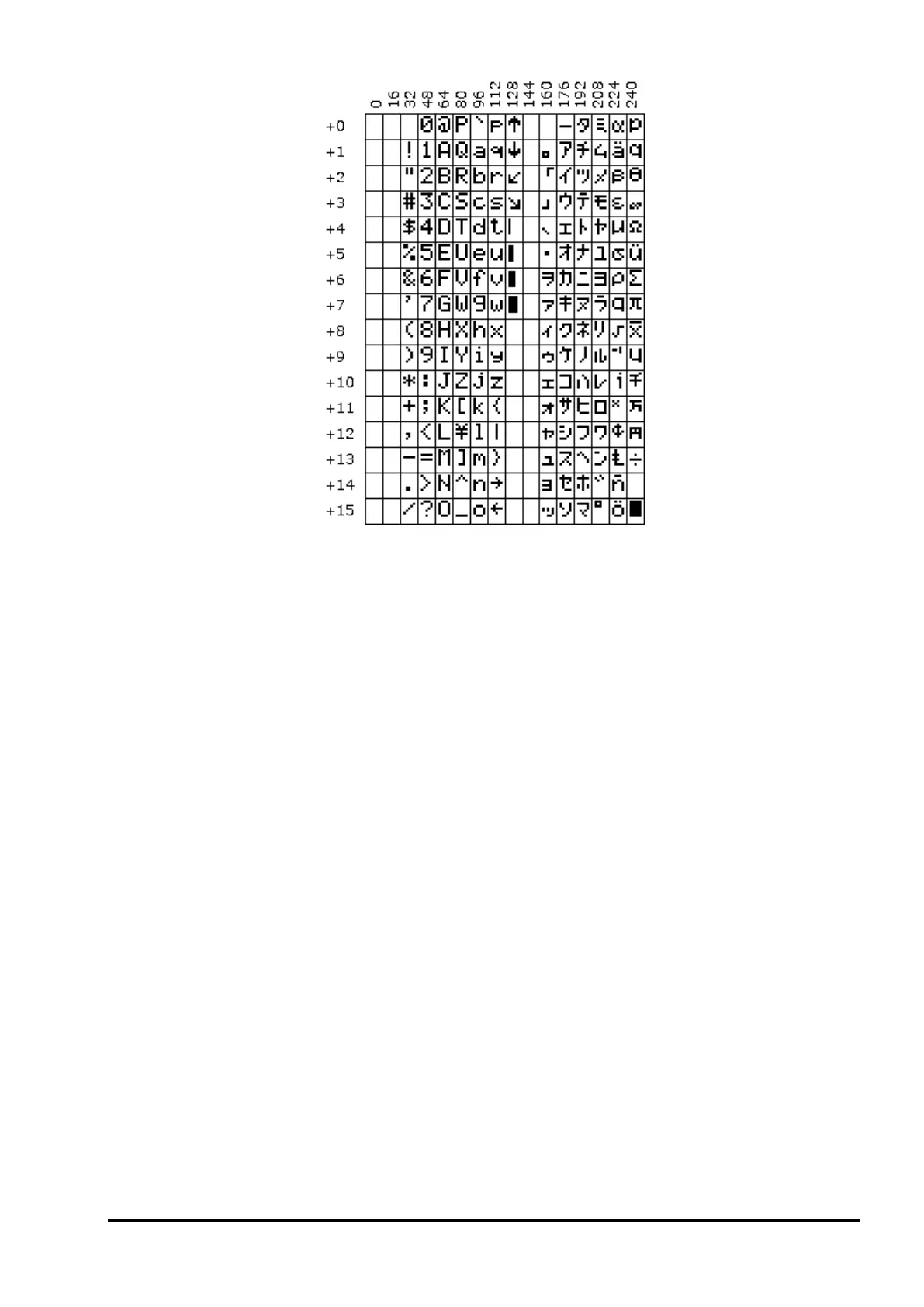

Table 22: LCD Characters Set
This table lists the characters that can be displayed on the DT80's LCD. Note the differences between this character set
and the previous set. Thus to display a sigma symbol (Σ) on the LCD you would use \246 (240+6) in an alarm text or
channel name/ units string.
Note that the DT80 automatically translates the standard units strings
degC, degF, degR and Ohm to °C, °F, °R and
Ω when displaying on the LCD.
