UM-0085-B09 DT80 Range User Manual Page 393
RG
Host Port modem cable
If a DTE is connected to a DCE then a "straight-through" cable is used. The following cable (dataTaker product code
MOD-6) is used to connect between the DT80 host port and a modem.

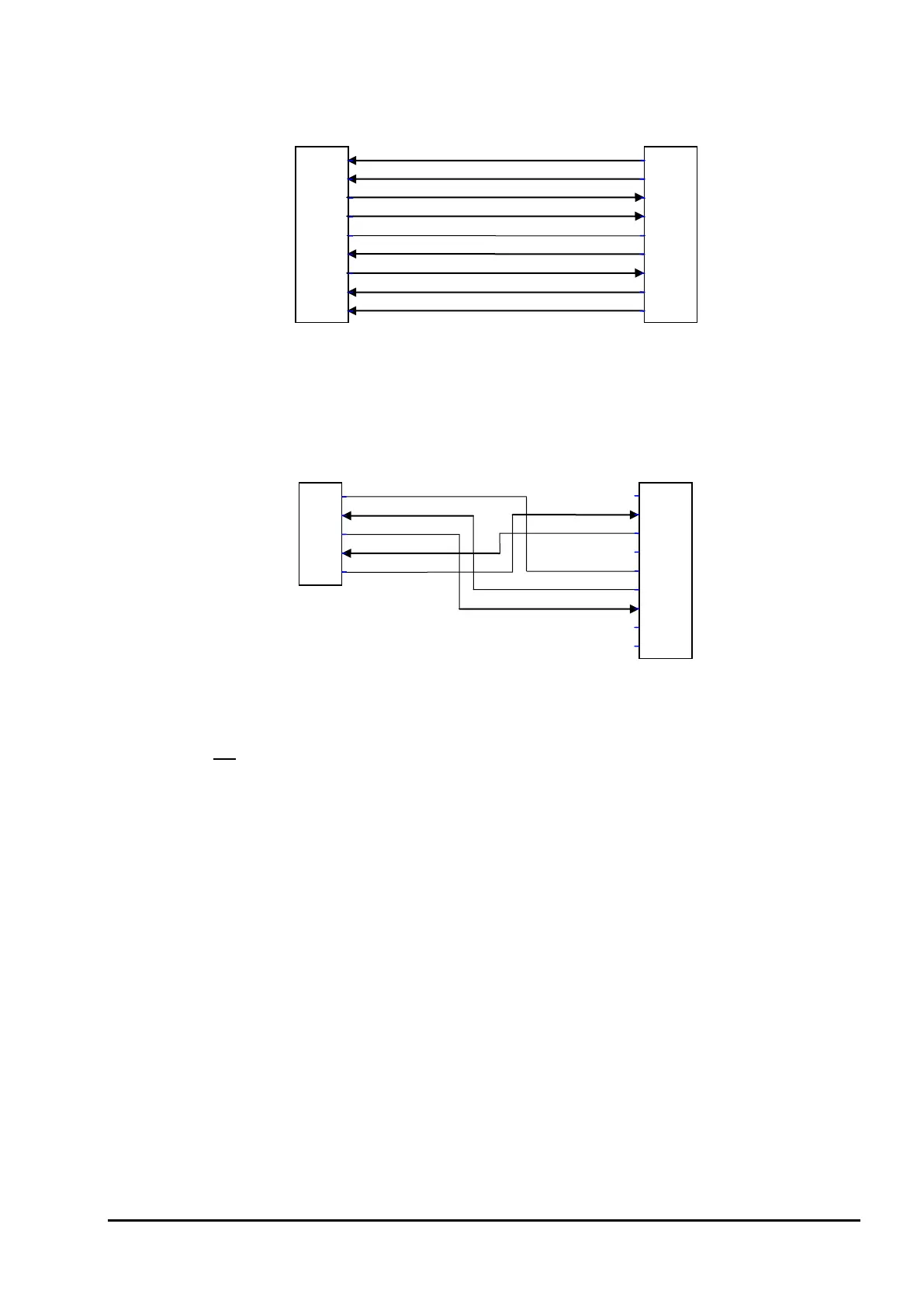

Figure 176: RS-232 Modem Cable (MOD-6)
Serial Sensor Port null modem cable
The following cable (dataTaker product code CAB-015) is used to connect a PC to the DT80 serial sensor port. This
cable is also often used to connect the dataTaker CANgate product to the serial sensor port.
Figure 177: Serial Sensor RS-232 Null Modem Cable (CAB-015)
Note This cable is only applicable if the serial sensor port mode is set to RS232.
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI
Modem
Male DE-9
DT80 host port
Female DE-9
DGND
CTS
RTS
Rx
Tx
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI
DT80 serial sensor
port terminal block
BLK
YEL
WHT
PUR
RED
PC / CANgate
Female DE-9
