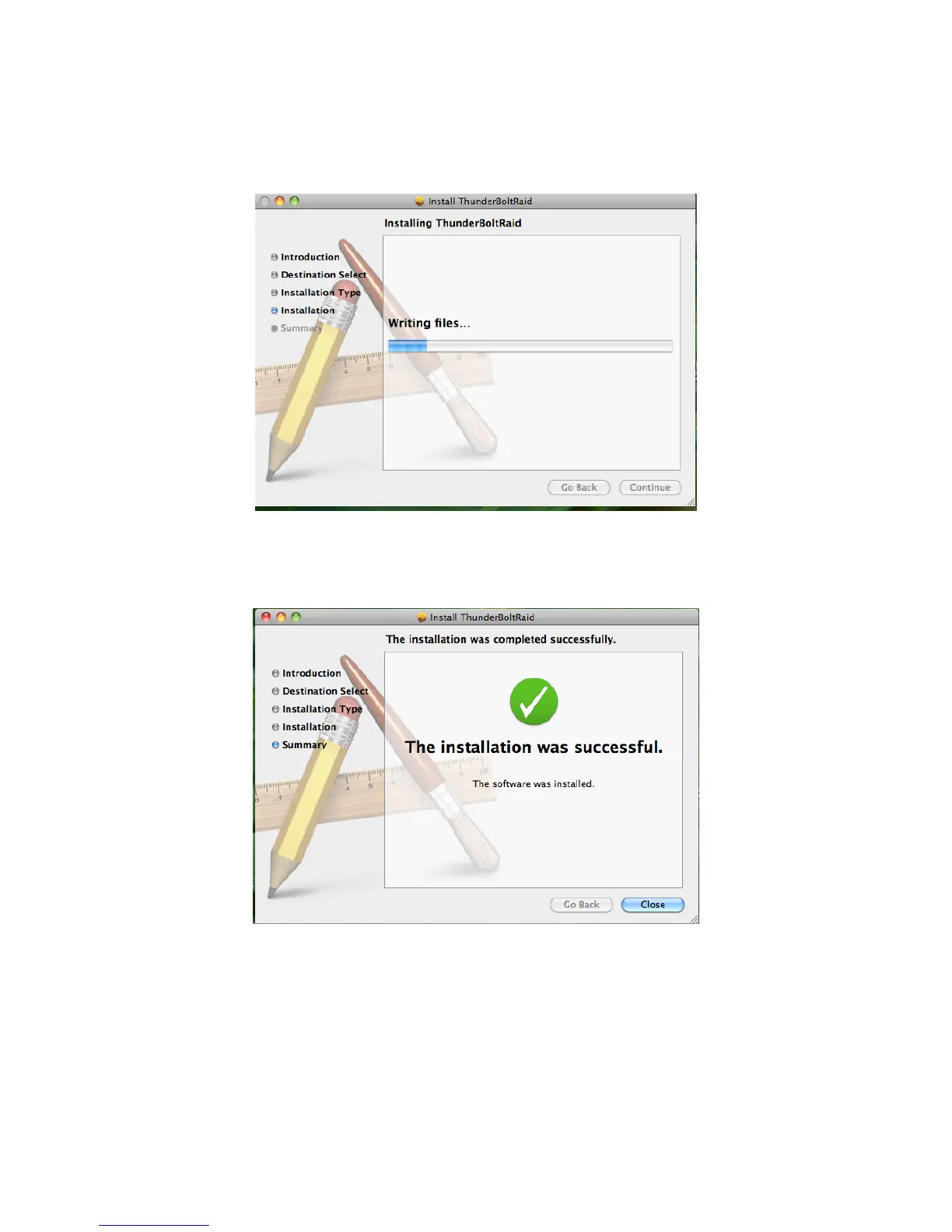

5. This step may take a few moments.

6. Once the RAID MASTER has been successfully installed, please click

“Close” to end the Installation process. Now, you may begin using the

RAID MASTER!
