Datavan Facelook X1 - Connectors

6 / 24
Facelook X1 User’s Manual

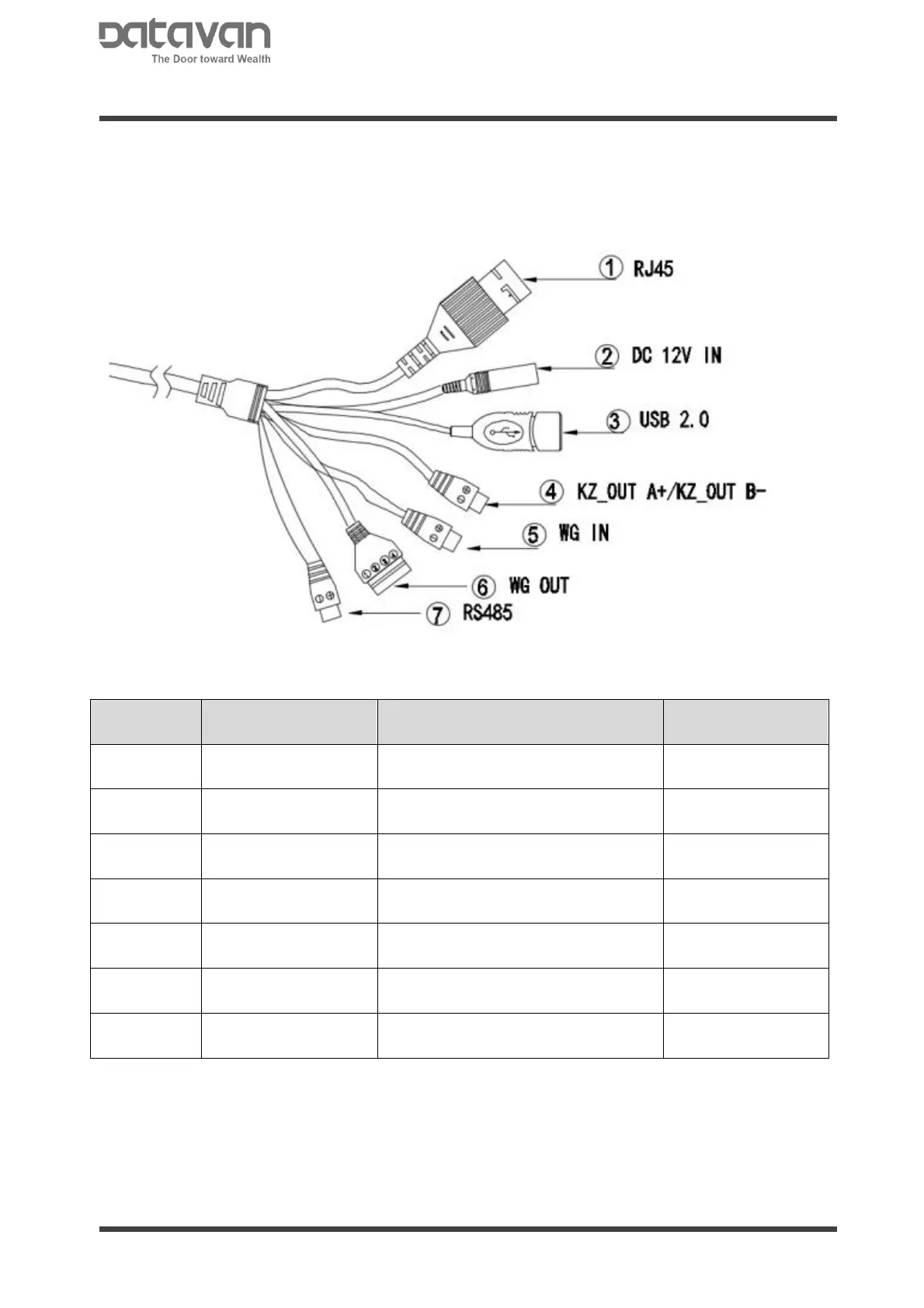

1.3.3 CONNECTORS
No
Name
Description
Label
①
Network port
RJ45
-
②
Power supply
DC12V IN
DC12V IN
③
USB
(Reserved)
-
④
Switch Output
A+/B-
KZ_OUT
⑤
Wiegand IN
(Reserved)
WG IN
⑥
Wiegand OUT
(Reserved)
WG OUT
⑦
RS485
(Reserved)
RS485
