6. Instruction for Installation
Step 1 – DIP Switch Setting
Set the Mirror option to H+V mode.
Step 2 – One End of Retaining Wire

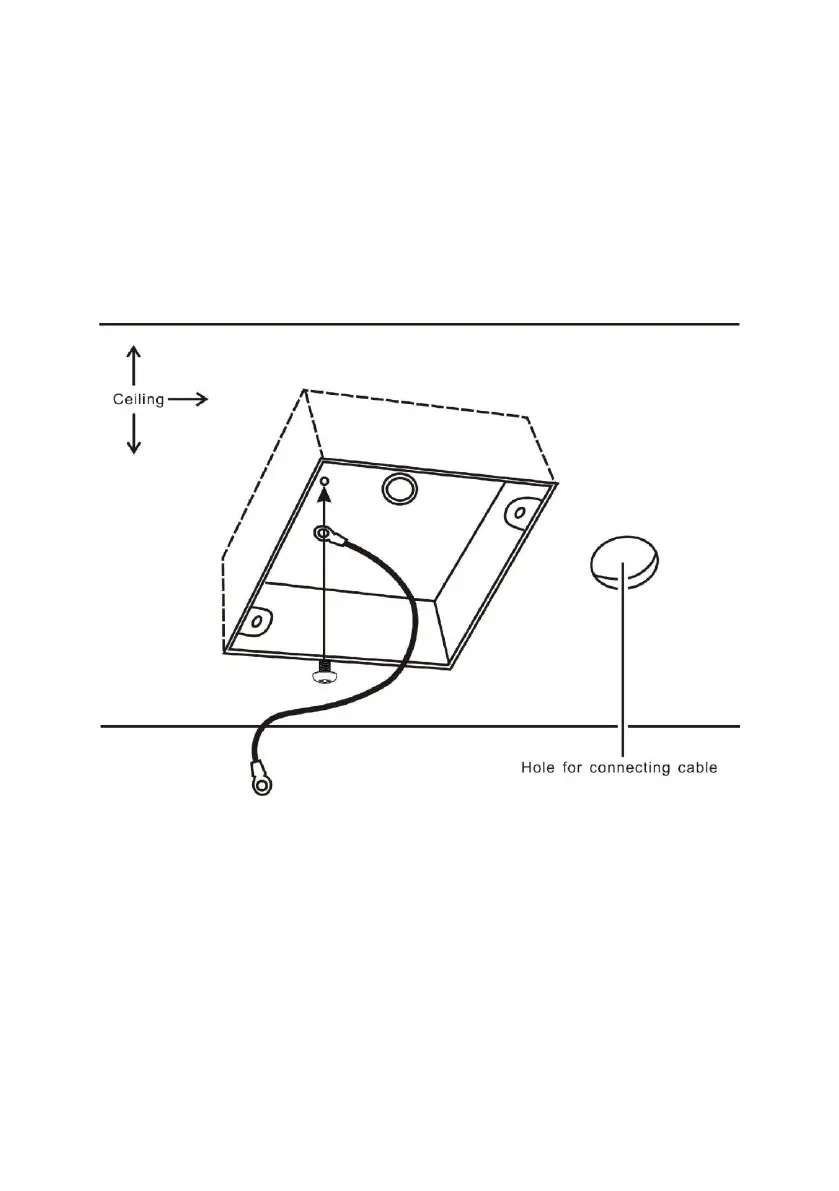

Attach the retaining wire to the junction box mounted on the ceiling by
screwing one end of the retaining wire into a screw hole in the junction box
with a screw (not supplied) as shown in the diagram below.
To Next Page
