4. DIP Switch Settings
4.1 DIP Switch SW1

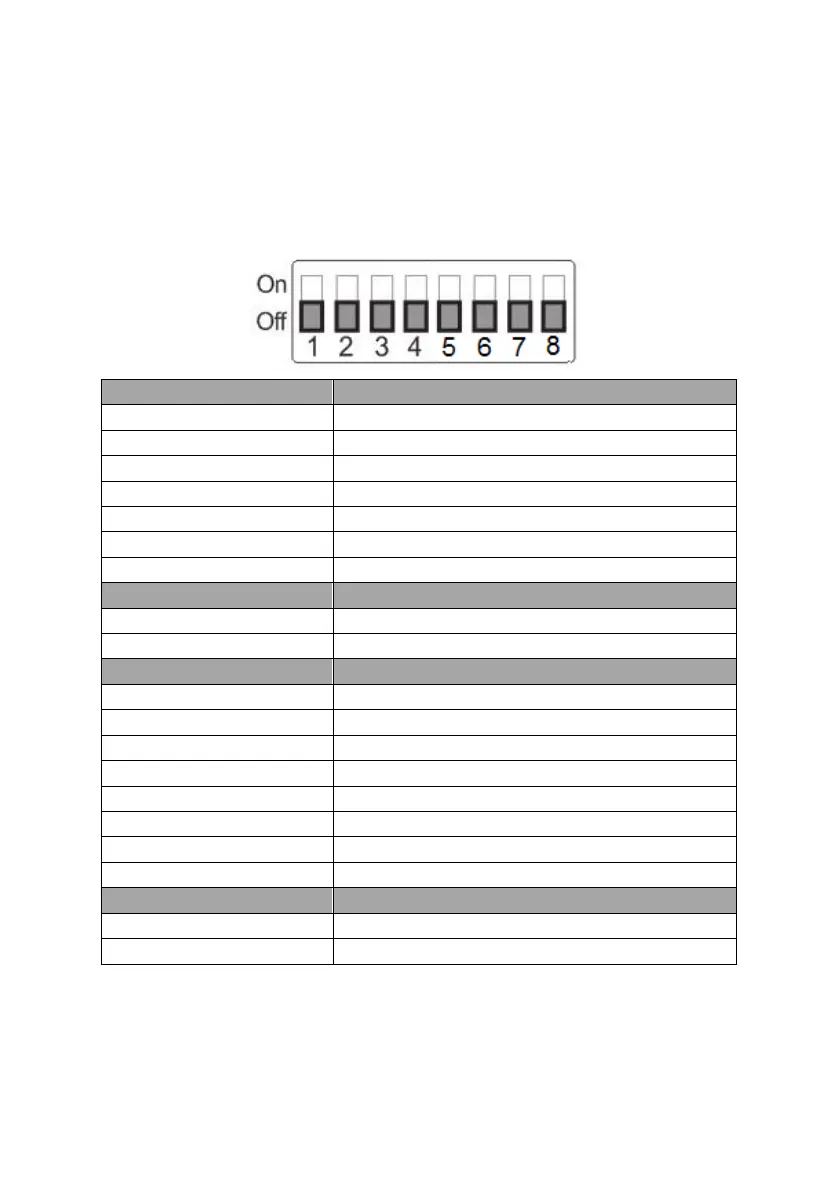

The DIP Switch SW1 can be found at the bottom of the camera, where the
user is allowed to set the camera’s VISCA ID, enable remote control, select the
video resolution, and configure how the video mode can be selected.
DIP SW 1/2/3
VISCA ID
ON/OFF/OFF
VISCA-ID 1
OFF/ON/OFF
VISCA-ID 2
ON/ON/OFF
VISCA-ID 3
OFF/OFF/ON
VISCA-ID 4
ON/OFF/ON
VISCA-ID 5
OFF/ON/ON
VISCA-ID 6
ON/ON/ON
VISCA-ID 7
DIP SW 4
Remote Control Protocol
ON
DVIP
OFF
RS422
DIP SW 5/6/7/8
Resolution
OFF/OFF/OFF/ON
1920 x 1080i59.94
OFF/ON/OFF/ON
1280 x 720p59.94
OFF/OFF/ON/ON
1920 x 1080p59.94
OFF/ON/ON/ON
3840 x 2160p29.97
ON/OFF/OFF/ON
1920 x 1080i50
ON/ON/OFF/ON
1280 x 720p50
ON/OFF/ON/ON
1920 x 1080p50
ON/ON/ON/ON
3840 x 2160p25
DIP SW 8
Video Mode Selection Method
ON
Video mode selectable by DIP switch only
OFF
Video mode selectable by menu
