Datavideo PTC-200W - 3 Camera Functions

8

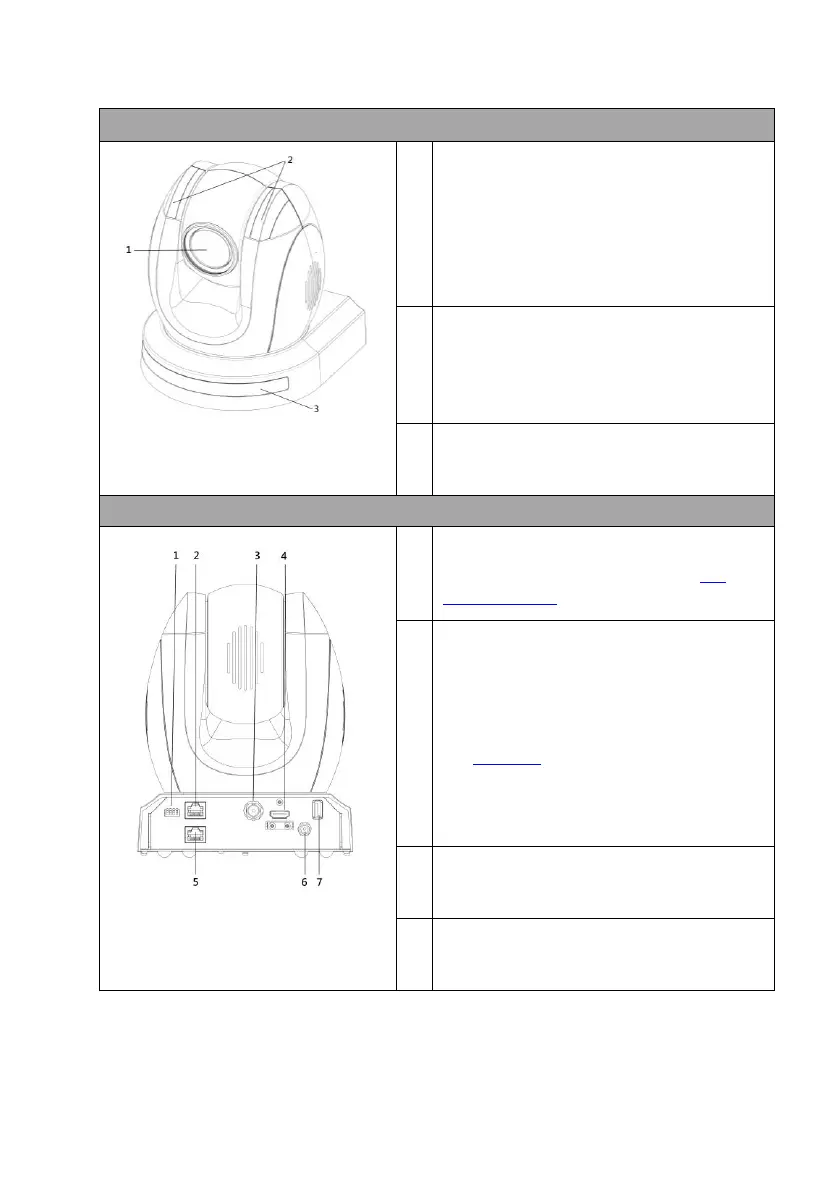

3. Camera Functions
Front of Camera
1
Lens
Built-in 1/2.3” 8.93M Pixel CMOS HD
color camera with white balance
control, backlight compensation
settings, automatic gain settings and
etc.
2
Tally LED
Tally lamp lights up when tally signal
has been transmitted to the tally signal
box.
3
Sensor for Remote Control
Remote controller receiver
Rear of Camera
1
DIP Switch SW2
DIP switch for IRID setting. See the DIP
Switch Settings section for details.
2
RS422 Communication Port
Connection to the RMC-180 PTZ Camera
Control Unit for remote control of the
camera via any RJ-45 cable.
See Section 8 for physical connection to
the RMC-180. For details on how to use
the RMC-180, please read the RMC-180
instruction manual.
3
3G-SDI OUT
Video signal output
4
HDMI OUT
Video signal output
