Connecting Metering Inputs
For the purpose of this tutorial, we will be configuring the THS0080 Temperature
Sensor that came with the Cortex. To begin, you must connect the sensor to the
DVIO-320 board.

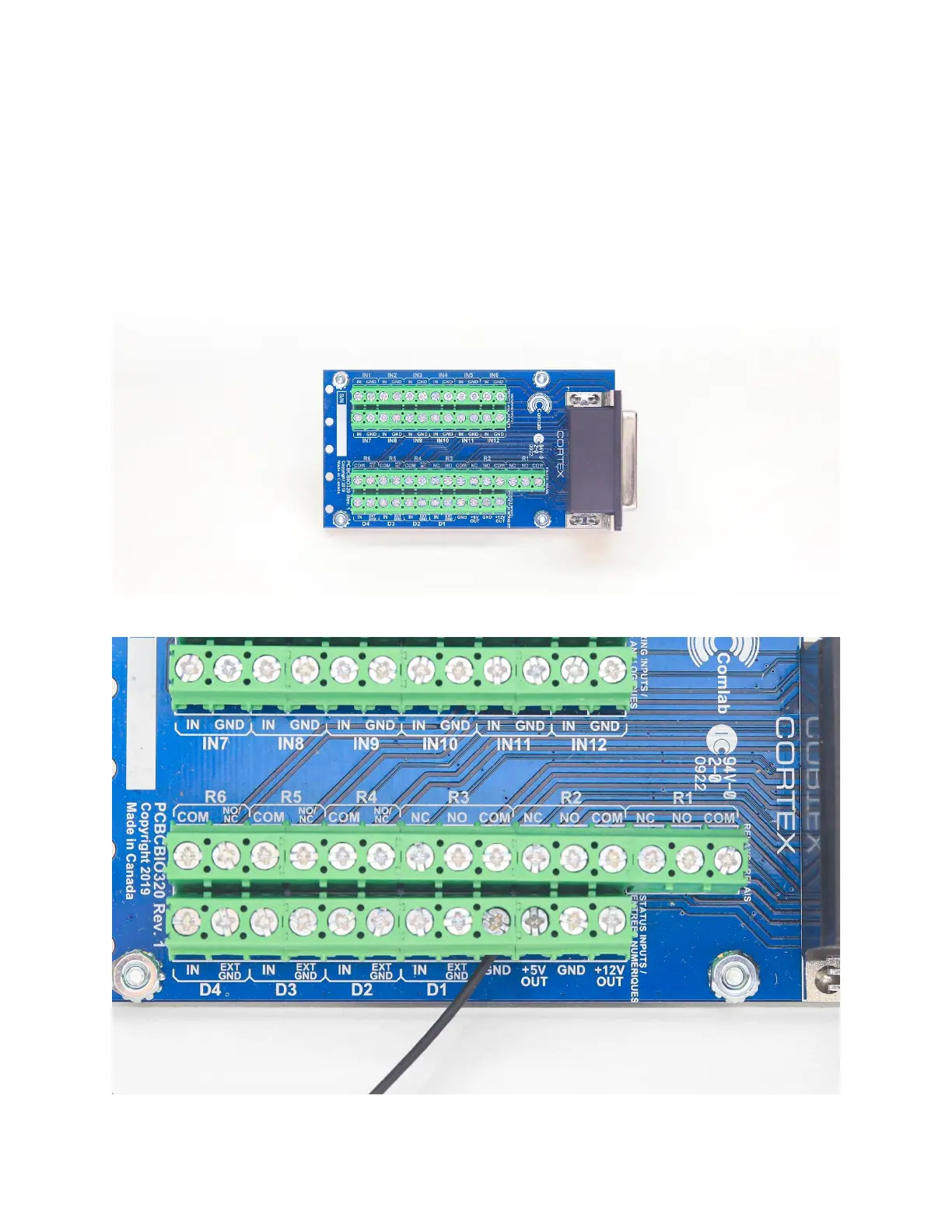

1. Insert the black wire into the GND next to the +5V OUT and screw it into place.
