Outputs Menu Configuration
Connecting Physical Relays
For the purpose of this tutorial, we will be connecting a light as an example. You will
need to connect to the DVIO-320 board.

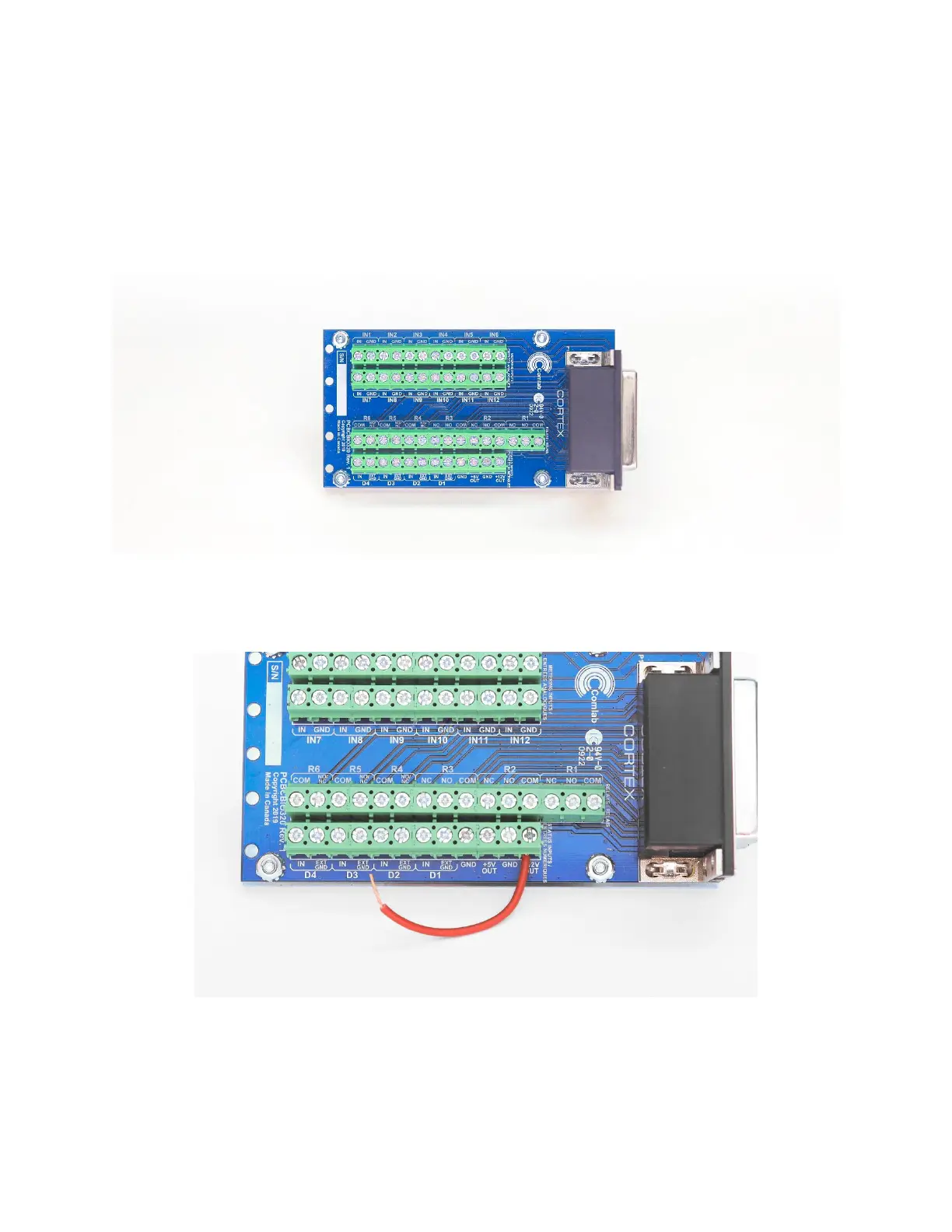

1. Insert a wire into the +12V OUT at the bottom right and screw it into place.
