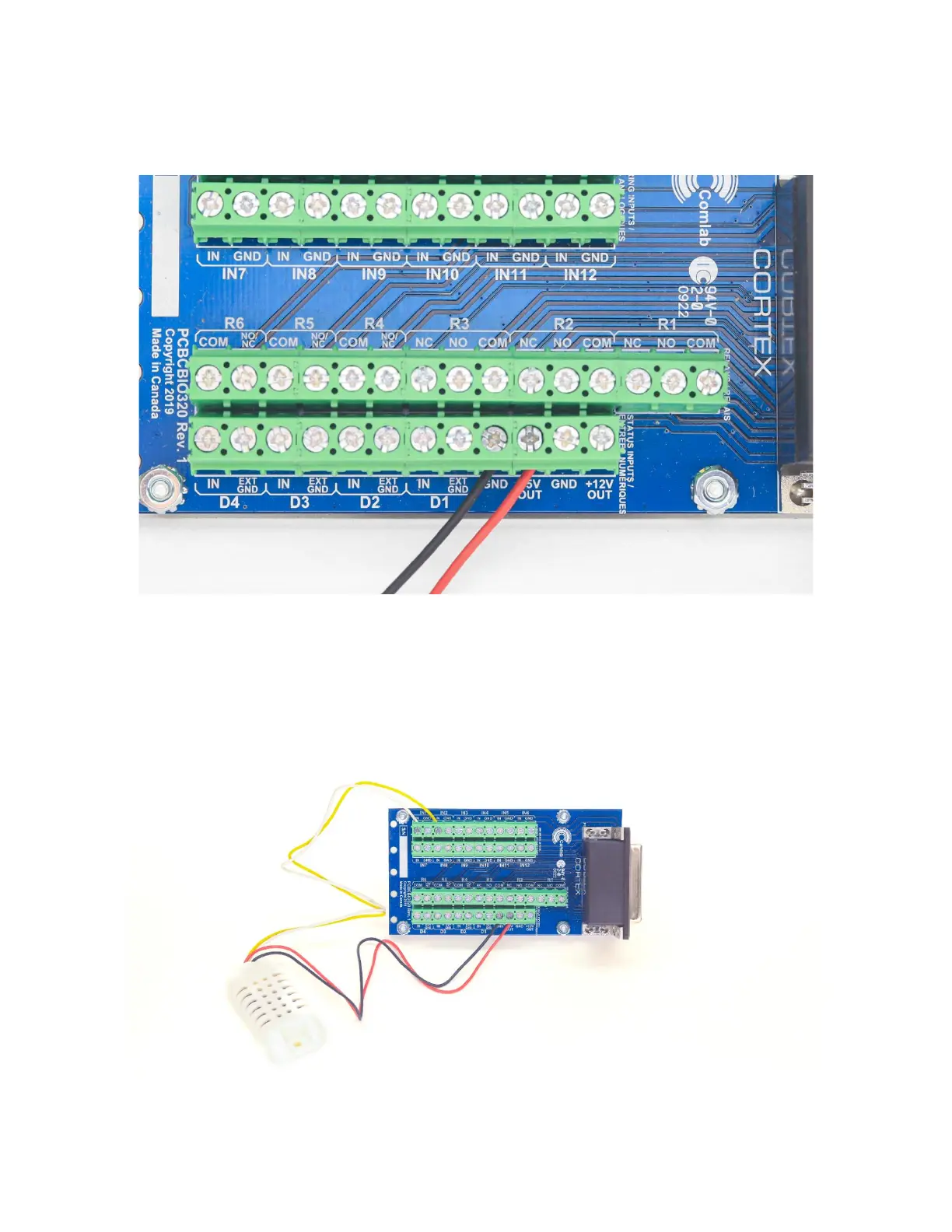

6. Insert the red wire into the +5V OUT at the bottom right of the board and screw it
into place.
7. Your setup should look like this. You are now ready to move on to the
configuration step.
