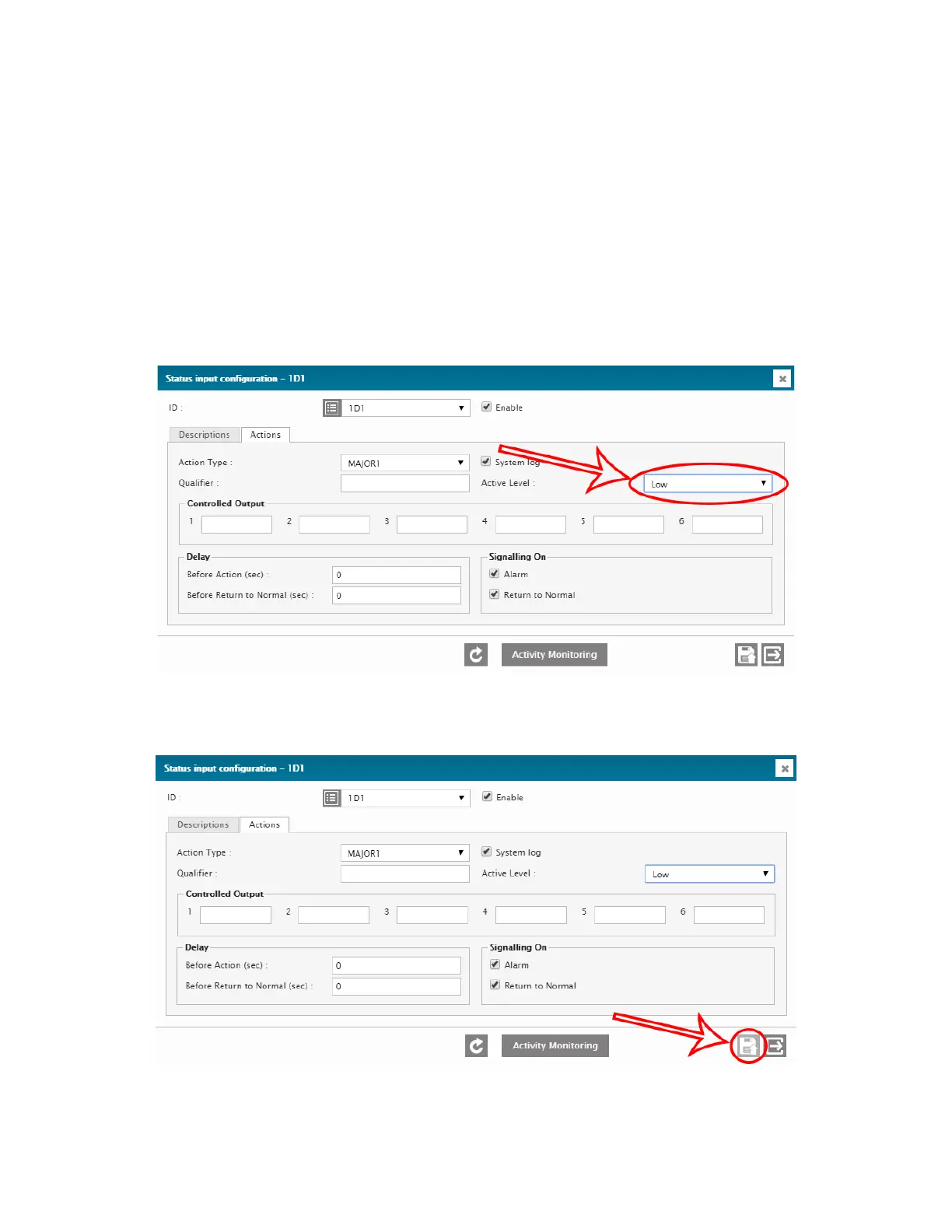

7. Set the Active Level. The Active Level determines when the Status Input will switch
into its Active state. This is in direct correlation to the Active and Normal descriptions
you set earlier.
High
= voltage detected
Low
= no voltage detected
Therefore, if your Active description is set to Door Open, you must set the Active
Level to
Low
because the Cortex will not detect any voltage given that the circuit is
open.
8. Save the configuration.
