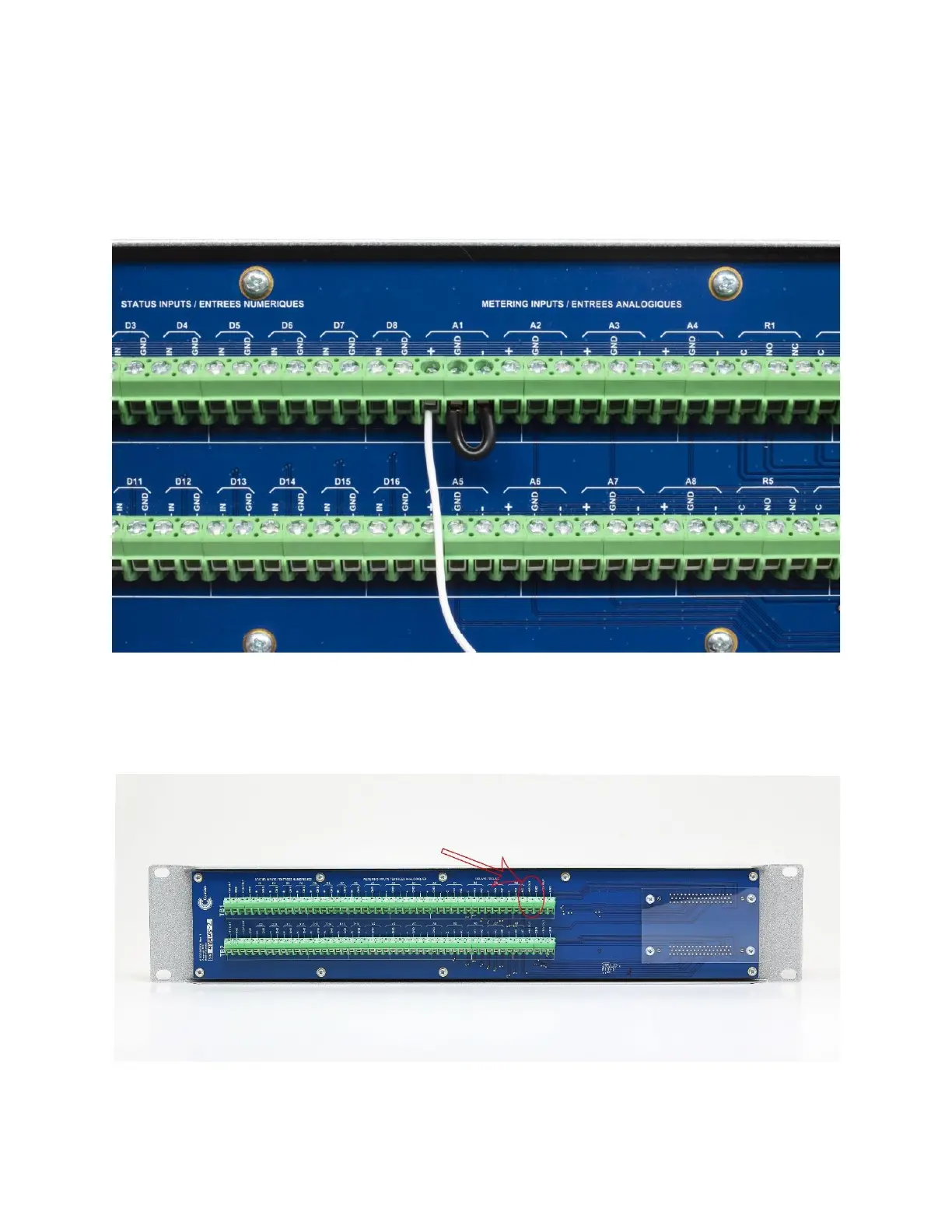

2. Insert the white wire into the + and screw it into place.
3. Since the THS0080 is a unipolar sensor, you must insert a jumper that links the - to
the GND and screw it into place.
4. Insert the red wire into the +5V OUT at the end of the board and screw it into
place.
