DAVIS Vantage Vue Console User Manual

26
Diagnostic
Screens
Press and hold TEMP then press HUM to display the Statistical
Diagnostic Screen. Press 2ND and CHILL to toggle between the Statistical
and Reception Diagnostic Screens. Press DONE to exit Diagnostic screens.

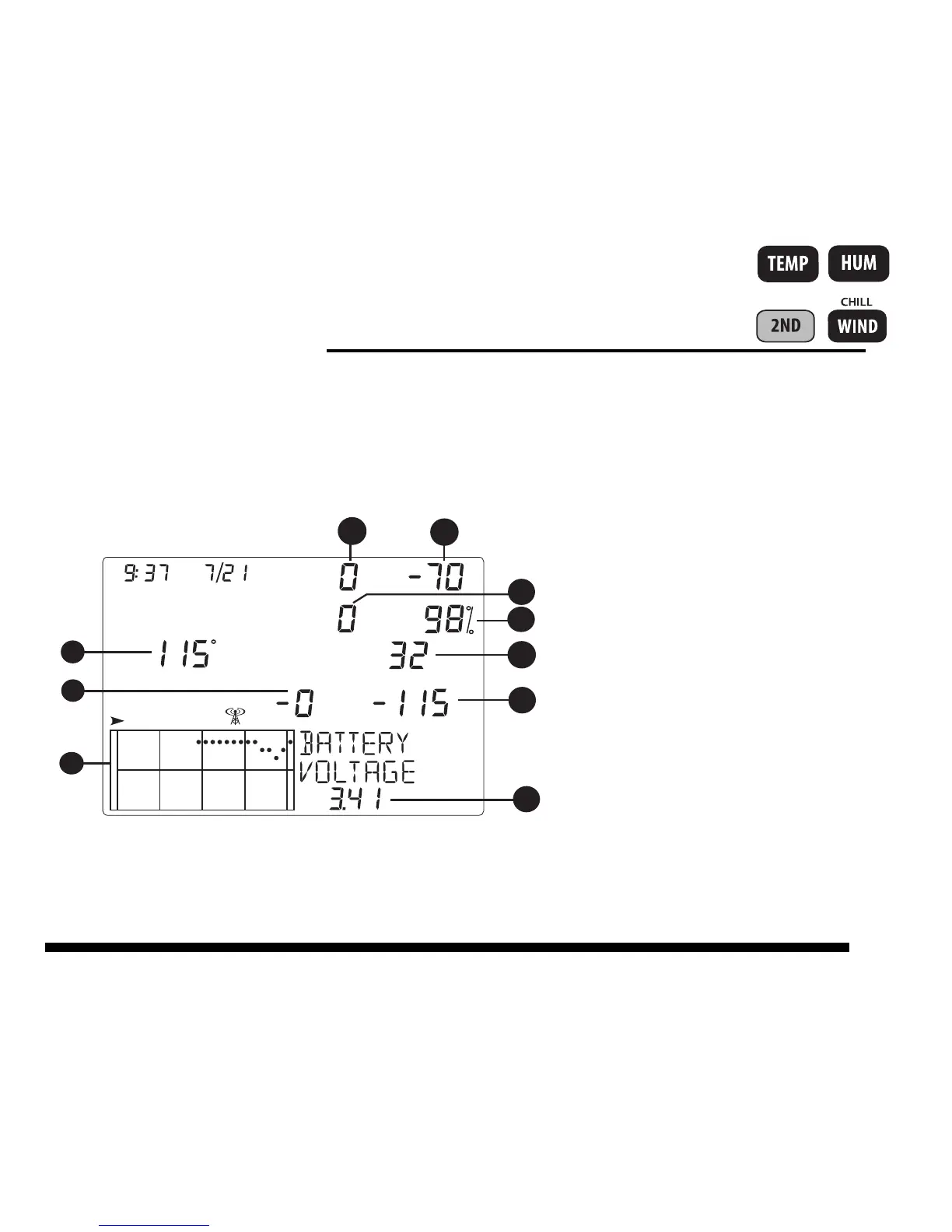

Reception Diagnostic Screen
1. 8-bit timer value*
2. Radio frequency error of last
packet
3. Frequency correction factor
4. Signal strength of last packet
5. Times Phase Lock Loop did
not lock*
6. % Good packets
7. Frequency index of next
packet*
8. Background noise level
9. Console battery voltage
* Used by Davis engineers. Please see your Vantage Vue Console Manual
for more information on console diagnostic screens.
am
1
3
4
5
6
7
8
9
2
6
