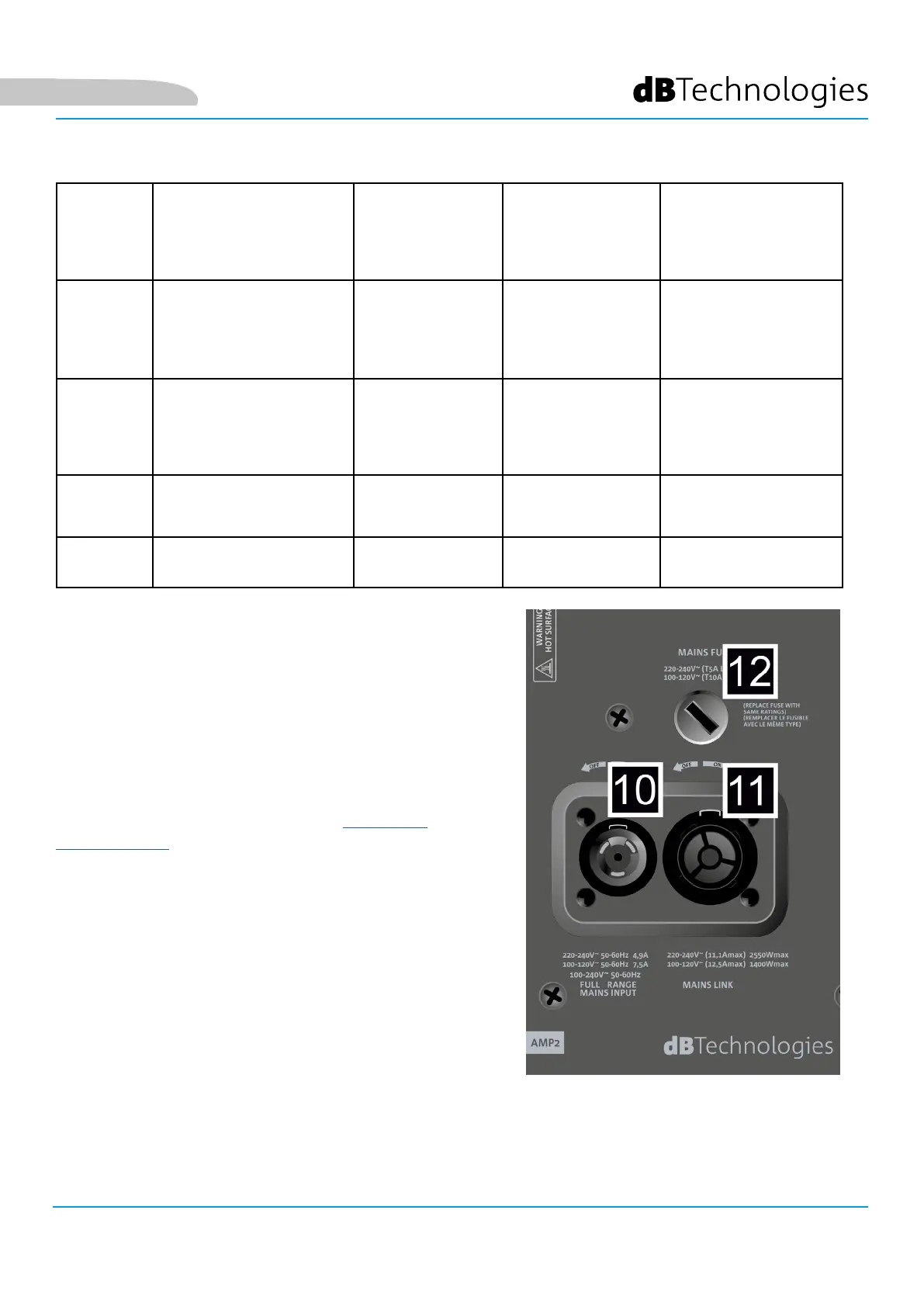

11. “MAINS LINK” POWER DAISY CHAIN
Compatible with powerCON TRUE1® connector for power
daisy chain to other modules.
To nd the maximum number of modules that can be
connected in a re-linked system, see the TECHNICAL
SPECIFICATIONS section.
10. “MAINS INPUT” POWER CONNECTOR
Compatible with powerCON TRUE1® connector, the power
supply features an auto-range function. Once the appropriate
range has been dened and the fuse has been changed, if
necessary, the system automatically recognizes the voltage
within the range [100-120V~] or [220-240V~].
12. NETWORK FUSE
Housing for the network fuse of AMP2 section.
LED TYPE STARTING PHASE
OF THE SPEAKER
IN NORMAL
OPERATION
GENERIC
WARNING
BLOCK FOR
SPEAKER FAULT
LIMITER OFF OFF, IT
STARTS ONLY
IN CASE OF
TRIGGERING
TEMPORARY
FLASHING
CONTINUOUS CYCLIC
FLASHING
SIGNAL
OFF FLASHING
IN THE PRESENCE
OF A SIGNAL
INPUT
AUDIO
NORMAL
WARNING
OFF
MUTE/
PROT
ON FOR A FEW
SECONDS
OFF TEMPORARY
FLASHING
STEADY ON
READY OFF STEADY ON STEADY ON OFF
