VIO-L212

Code 420120270 REV. 1.0

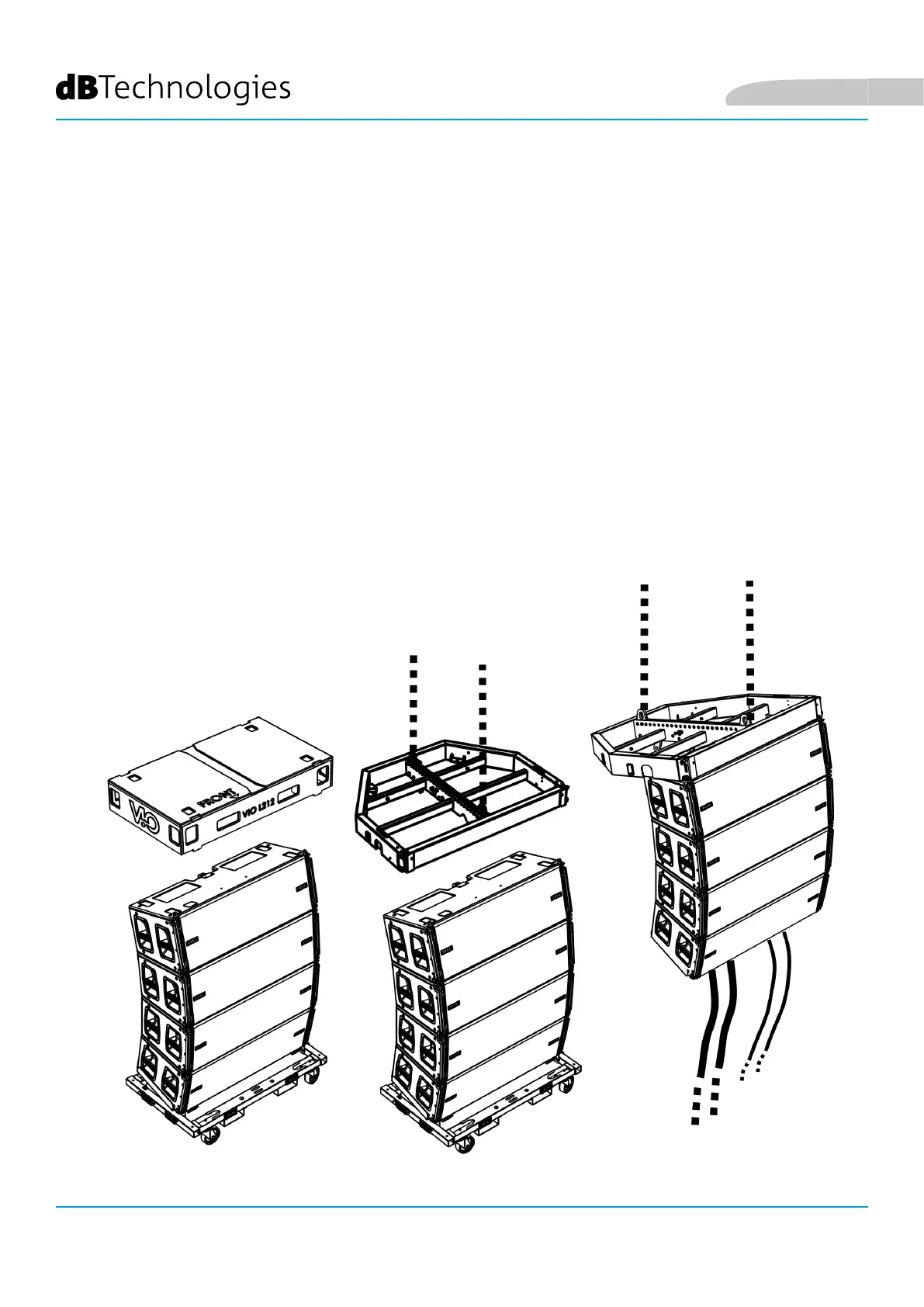

LINE-ARRAY ASSEMBLY AND WIRING

• Remove the safety strap and the top. At the rear of the modules insert the pins for the fastening of the angles

calculated by the software.

• By means of motors, lift 1 y-bar from the DT-DRK212 dolly and secure it in own conguration to the upper

VIO-L212 top.

• For the following connection make sure to route the necessary main wirings on the y-bar.

• Connect the rst individual modules, especially the re-linkable ones.

• Lift the upper part of the line-array
