PREPARATION OF THE FLY-BAR AND MODULES
• Use DBTECHNOLOGIES COMPOSER to set project parameters.
• Make sure that the MECHANICAL SAFETY testing of the software conrms the safety of the selected
conguration
• Make sure that the local parameters of the different modules are correctly set on the single amplier panels.
In particular, verify according to the project the Speaker Coupling and High Frequency Compensation settings.
As an alternative, all parameters can be remotely edited in real time if the line-array connection is carried out
through the RDNet network (DBTECHNOLOGIES NETWORK). Nevertheless, in this case, project initial settings
should be physically repeated on the VIO-L210 modules before installation. For further information see the
DSP PRESET PARAMETERS AND REMOTE CONTROL section.

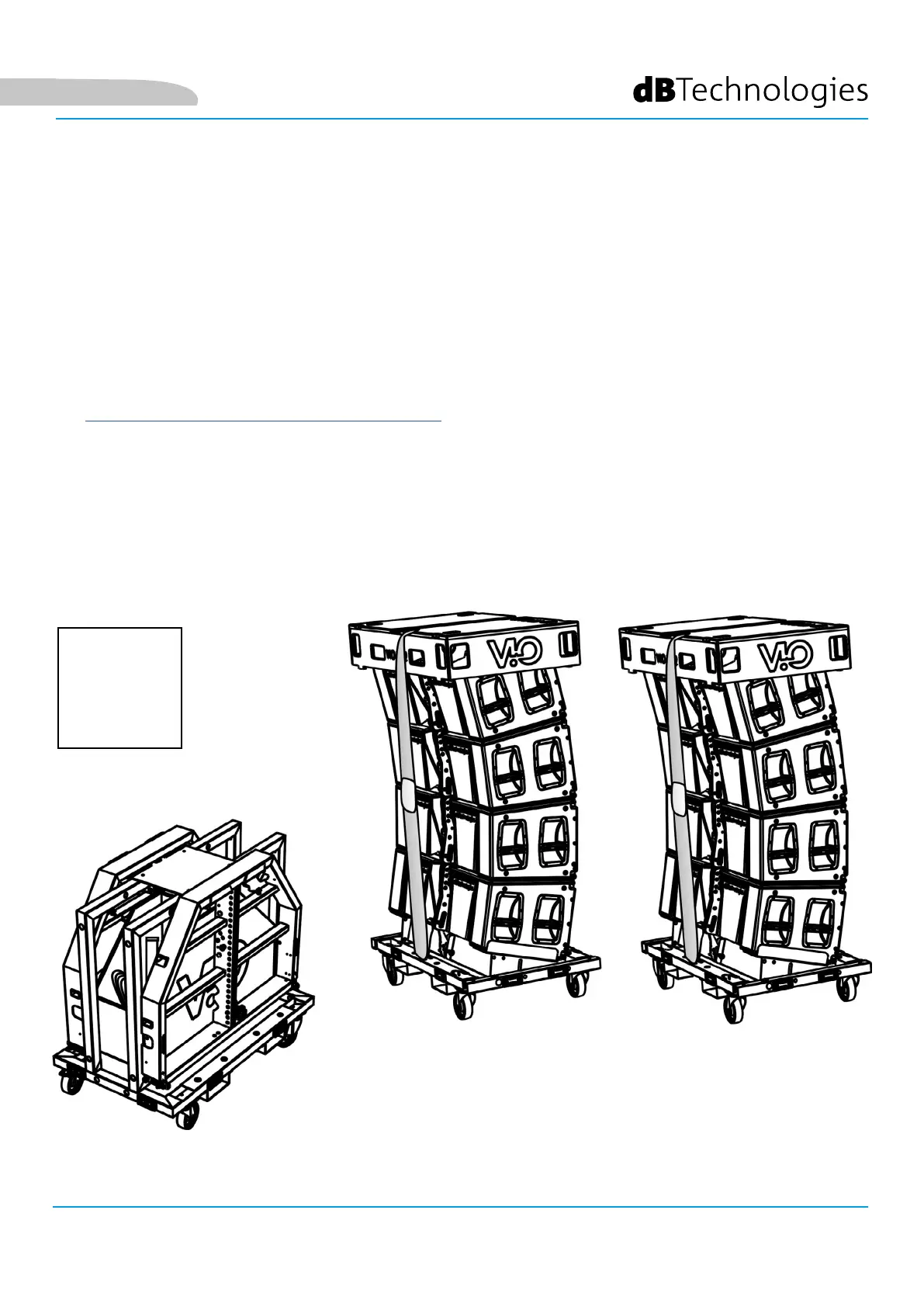

• Prepare the DRK212 y-bars and the line-array VIO-L212 modules. This example shows dollies DT-DRK212
and DT-VIOL212 with DTT-VIOL212 tops. The conguration in the example, for illustrative purposes only, is an
8-module line-array.
