MECHANICS AND MAIN EQUIPMENT
English
U
T
Z
Y
W
X
Z
T
V
V

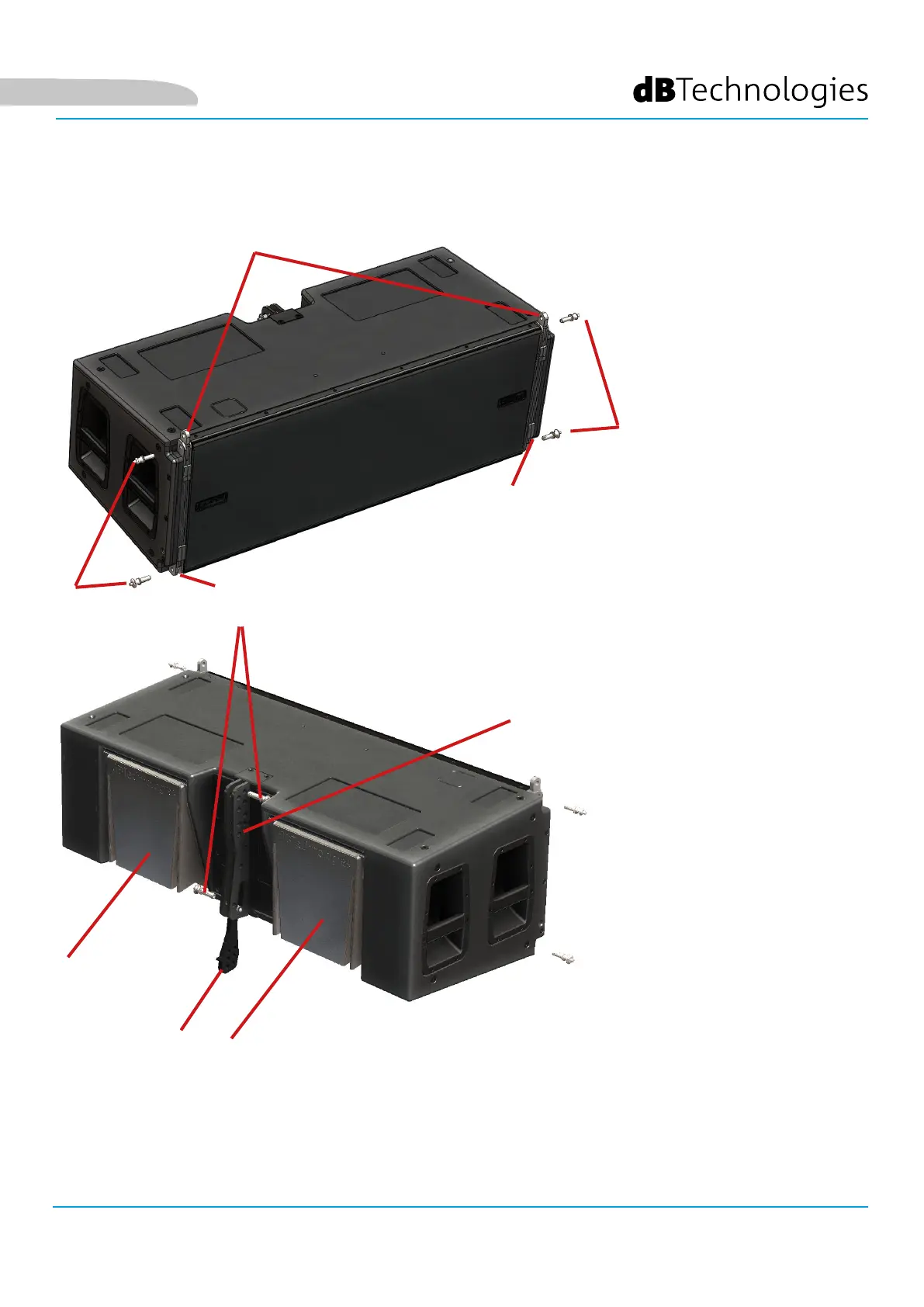

T - FRONT FASTENING PINS
U - RETRACTABLE BRACKETS FOR
FASTENING TO AN UPPER
MODULE
V - S EATS FOR FASTENING TO A
LOWER MODULE
W- REAR BRACKET
X - MOVABLE JOINT
Y - REAR FASTENING PINS
Z - RAIN COVER
The 3-point fastening system uses, by means of pins:
• the upper brackets U, on the front side
• the lower seats V, on the front side
• the W bracket, with movable joint X, on the rear side.
For simplicity's sake the next images are no longer shown with the rain covers [Z].
