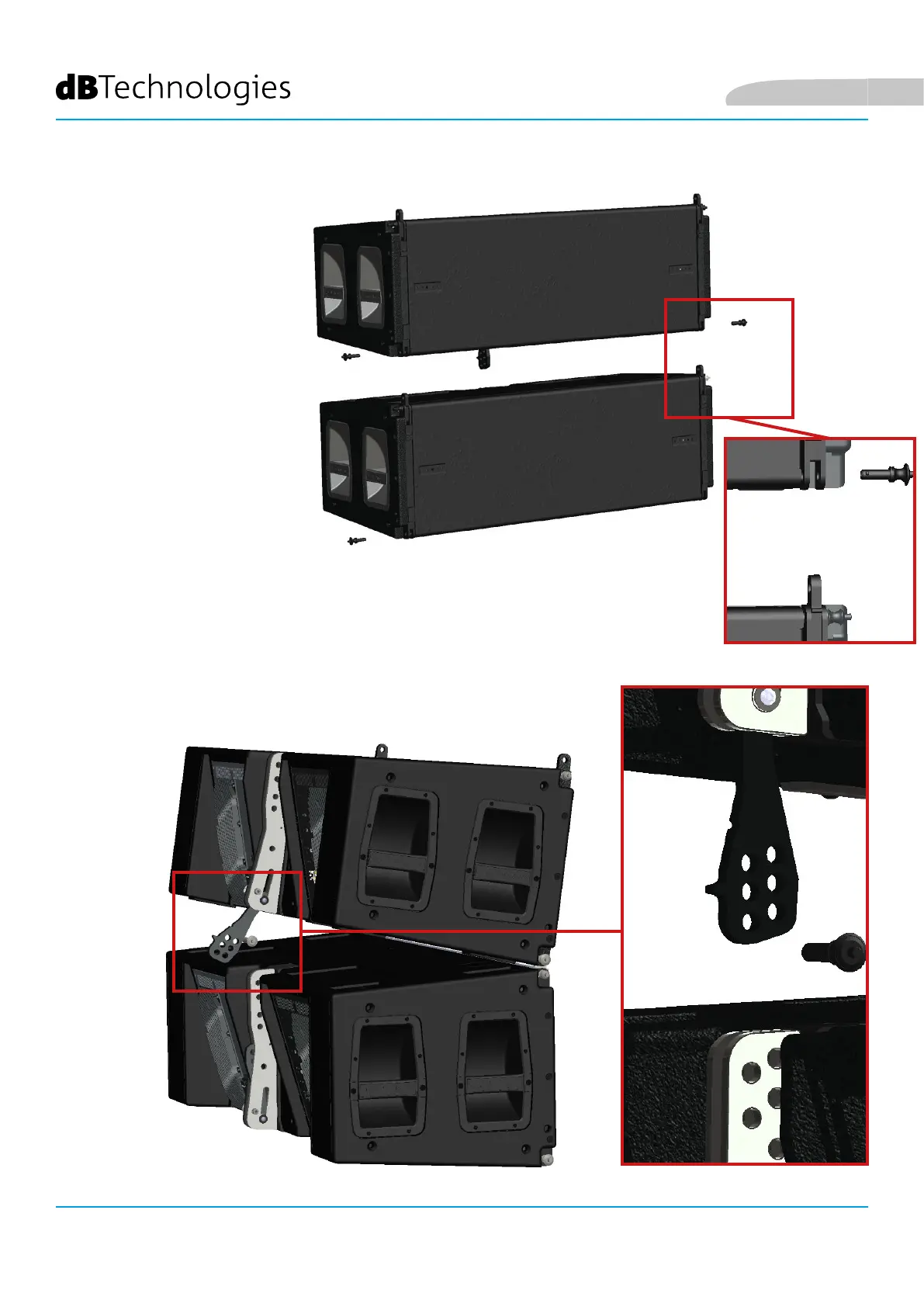

For fastening two modules:
FRONT SIDE
1) On the B module move the U
brackets upwards and fasten
them with the related pins.
2) Remove the T pins from
module A
3) Move the 2 modules close to
one another inserting the U
brackets in the V seats.
4) Insert the T pins completely. By
doing this the A and B modules
at the front are blocked.
REAR SIDE
5) On module A release the
movable joint X. Then insert
the Y pin in the hole that
corresponds to the desired tilt.
The details describing this
operation are shown in the
next page. They are different
depending on the FLOWN or
STACK installation.
