VIO-L212 Code 420120270 REV. 1.0
PIN 1
PIN 2

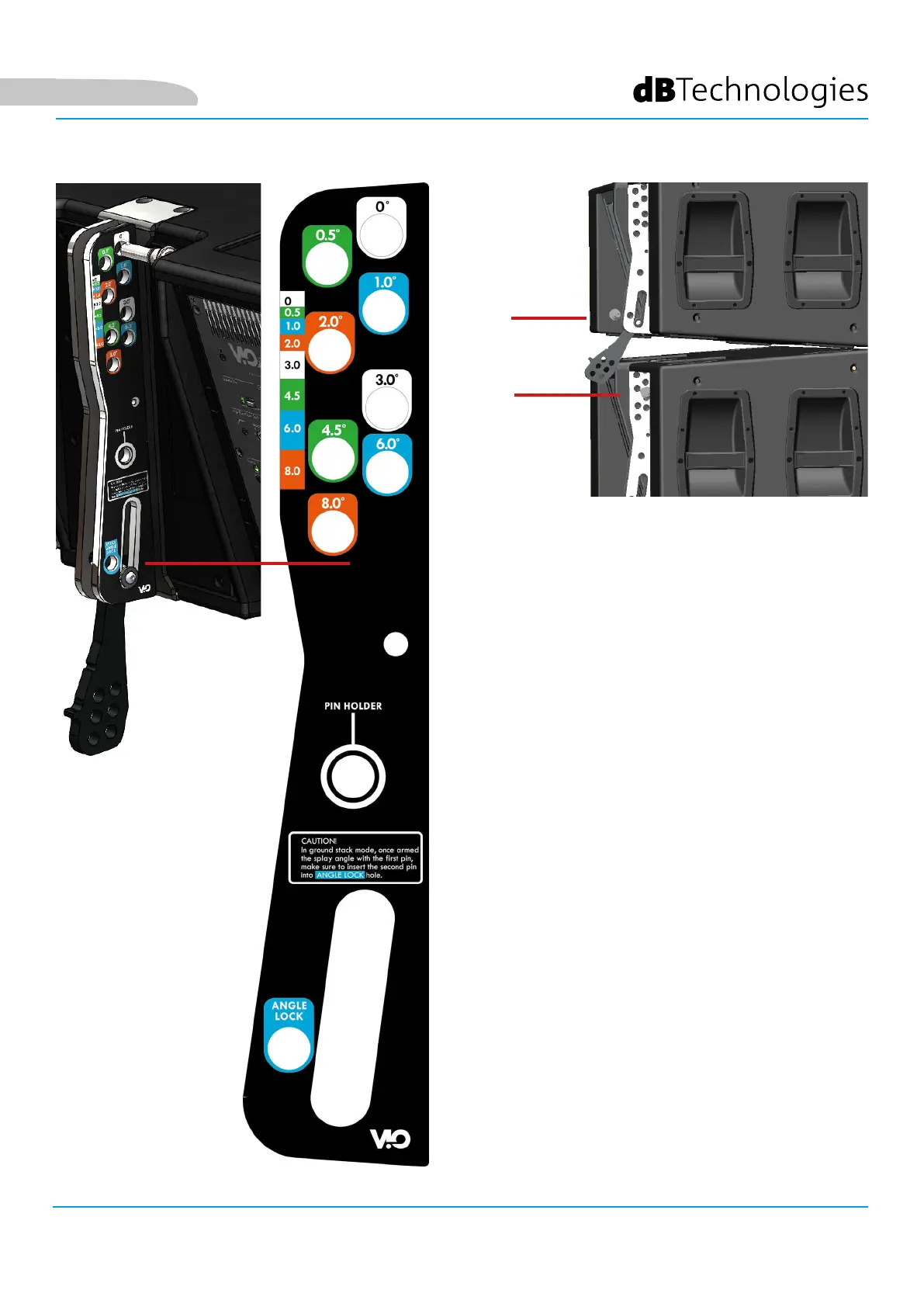

FLOWN INSTALLATION
Only one pin (PIN 1) is required to fasten the angle at
the back. The differently coloured inserting holes of the
W bracket, allow the following tilting: [0°, 0.5°, 1°, 2°,
3°, 4.5°, 6°, 8°]. The bracket slot allows inserting the pin
without lifting the rear of VIO-L212.
STACKED INSTALLATION
Two pins (PIN1, PIN2) are necessary to fasten the angle
at the back. Once PIN1 has been introduced, according
to the FLOWN procedure, the rear of VIO-L212 lifts as
much as the slot allows it and the position is secured
with PIN2.
