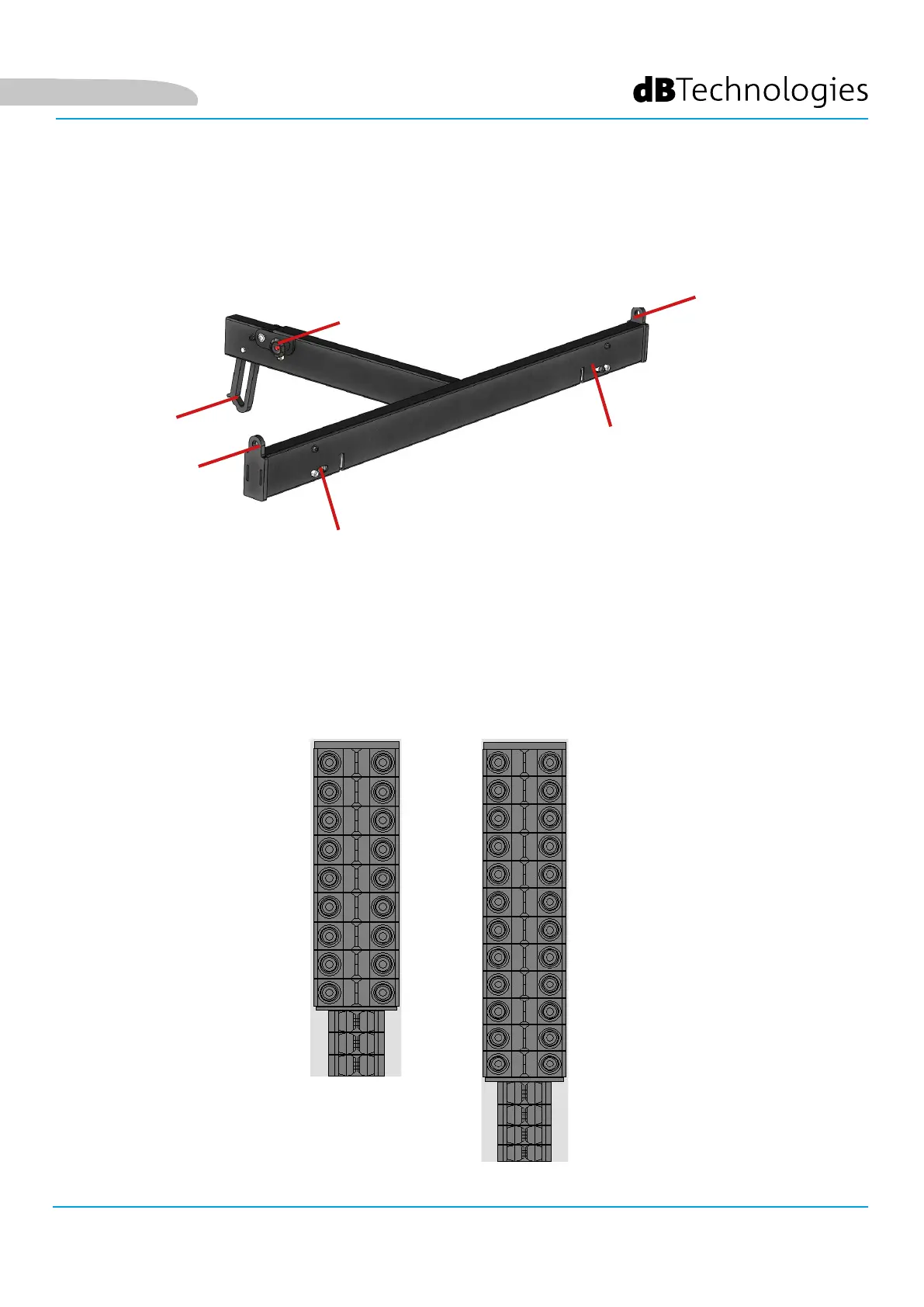

EXAMPLES OF MIXED CONFIGURATIONS
• Through the TF-VIO2 mount socket, it is possible to use a VIO-L210 line-array in down-ll function under
one consisting of VIO-L212. The suggested proportion between the 2 models is 3:1 as shown here below, for
illustrative purposes only.
A
A
B
D
C
D2
B
• A - Front brackets for VIO-L212
• B - Front fastening systems for VIO-L210
• C - Rear joint for VIO-L210
• D - Rear coupling bracket for VIO-L212
