DCC Specialties PSX-AR - MRC Setting PSX Addresses; MRC Programming PSX Cvs; Audible Short Indication

PSX-AR Manual Rev: P Software Rev: N
24
MRC Setting PSX Addresses: Using the Prodigy Advance Cab
1. Turn DCC Power off.
2. Move PSX J3 Jumper to Program Position Pins 1 & 2
3. Turn DCC Power on.
4. Press ACCY key.
5. Enter the new switch number using the numerical keypad.
6. Press ENTER
7. Press either 1 or 2 to set the address.
8. Repeat steps 4 thru 6 until all of the CV value are set.
9. Turn DCC Power off.
10. Move PSX J3 Jumper to Run Position Pins 2 & 3
11. Turn DCC Power on.
12. Test the switch setting using the ACCY key.
MRC Programming PSX CVs: Prodigy Advance Cab
1. Turn DCC Power off.
2. Move PSX J3 Jumper to Program Position Pins 1 & 2
3. Turn DCC Power on.
4. Press LOCO to address an unused locomotive number.
5. Press PROG key to enter PROG MAIN TRACK mode
6. Press ENTER.
7. Continue to press ENTER until CV# is in the display.
8. Enter the CV number
9. Press ENTER.
10. Enter the value to be stored in the CV
11. Press ENTER.
12. Repeat steps 8 and 9 until finished.
13. Press ENTER to return to normal operation.
14. Turn power off
15. Move PSX J3 Jumper to Run position Pins 2 & 3
16. Turn DCC power on.
17. Test the PSX using the ACCY key.
For all systems, whenever you enter an address or CV value, you should see D6 flash. This indicates
the PSX-AR has received the information, stored it, and verified the stored data match the data you sent.
Audible Short Indication The two holes inside the circle [U8] on the top of the board are for use with
an audible short indicating device. It is designed for use with part no. ttxsonalert. The device is installed
with the [+] terminal in the square hole.
You can obtain these components for all PSX devices from
American Hobby Distributors: 800.671.0641 info@dccspecialties.com

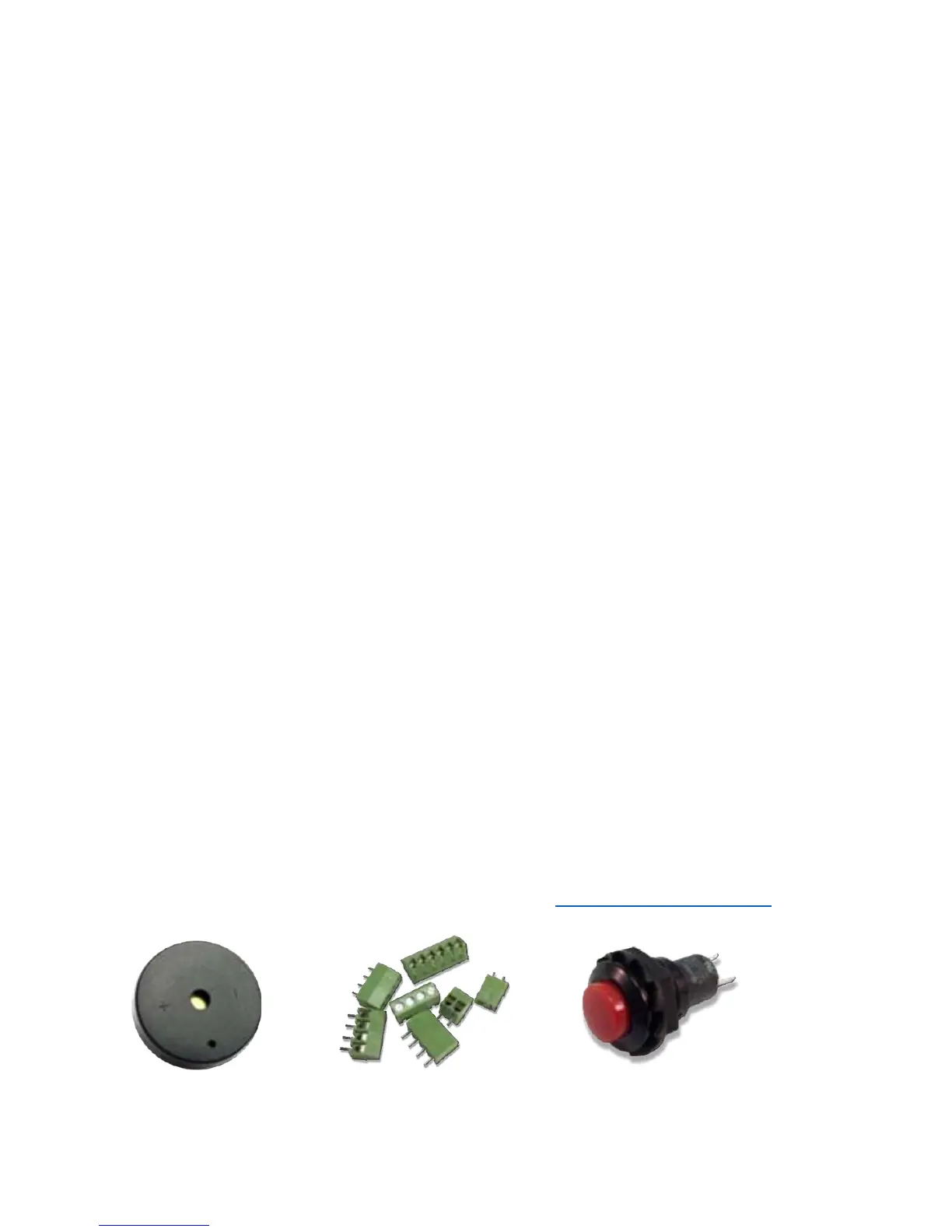

Part no. ttxsonalert Part no. screwtermkitpsx1 Part no. dsppsx.pb
Audio Alert Screw Terminal Kit for PSX Reset Push Button Switch
