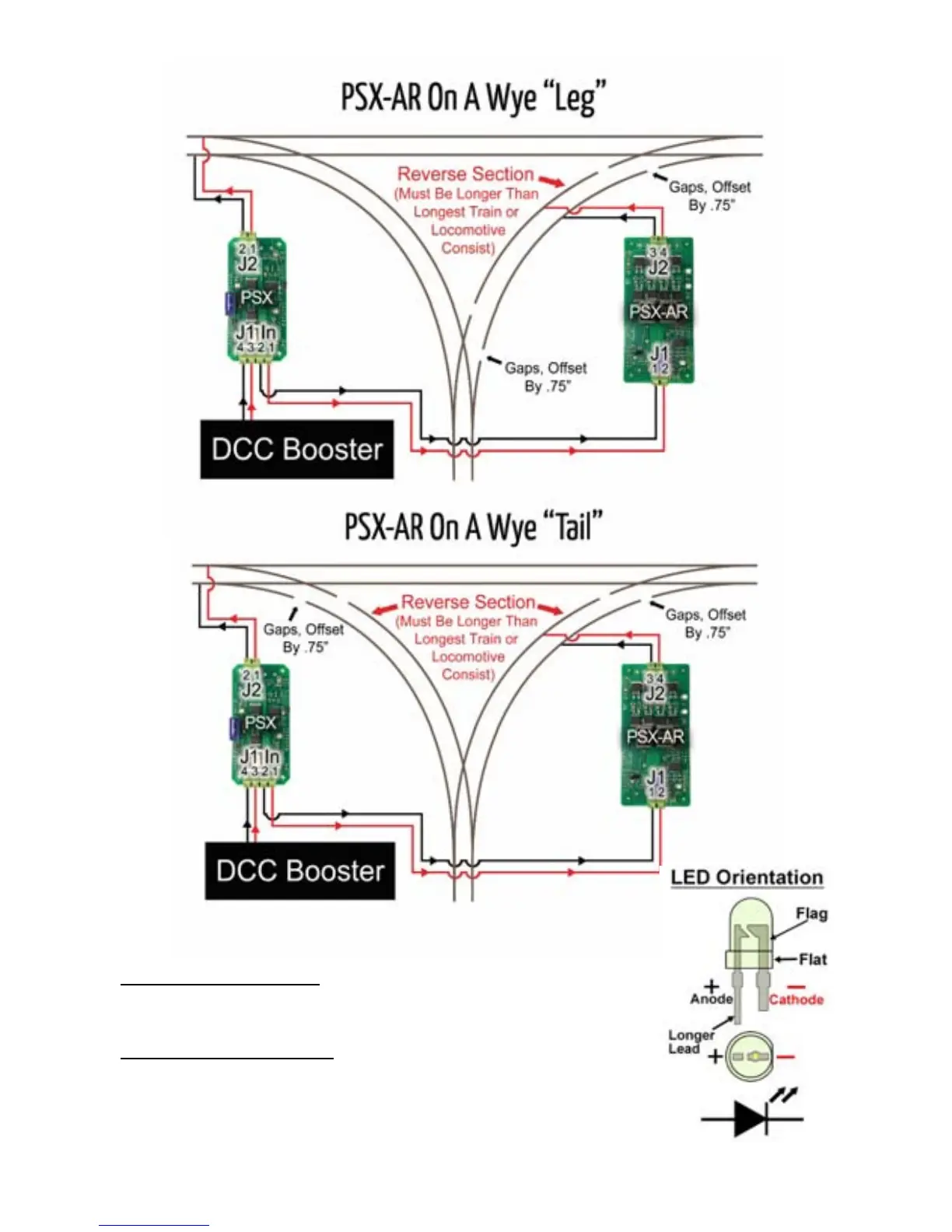

DCC Specialties PSX-AR - PSX-AR on a Way Leg; PSX-AR on a Wye Tail

PSX-AR Manual Rev: P Software Rev: N
8
F. Terminal Wiring Descriptions
J1 Input Power Connector
• J1-1 DCC Power Input A [from DCC Booster]
• J1-2 DCC Power Input B [from DCC Booster]
J2 Output Power Connector
• J2-1,3,5 Switched DCC Power Output A [“normal” polarity]
• J2-2,4,6 Switched DCC Power Output B [“normal” polarity]
• J2-1,3,5 Switched DCC Power Output B [“reverse” polarity]
• J2-2,4,6 Switched DCC Power Output A [“reverse” polarity]
