DCN S5750E Series User Manual

S5750E Series Installation Guide Chapter 2 Device Installation
2-1
2.2 Installation Preparation
2.2.1 Verify the Package Contents
Please unpack the shipping package and verify carefully the contents inside.
2.2.2 Required Tools and Utilities
The required tools and utilities are shown below:
 Cross screwdrivers
 Flat-blade screwdriver
 ESD wrist strap
 Antistatic uniform
Caution!
Users should prepare the required tools and utilities by themselves.
2.3 Device Installation
2.3.1 Installing the Switch
Please mount switch on the 19’’ rack as below:
1. Attach the 2 brackets on the switch with screws provided in the accessory kit.

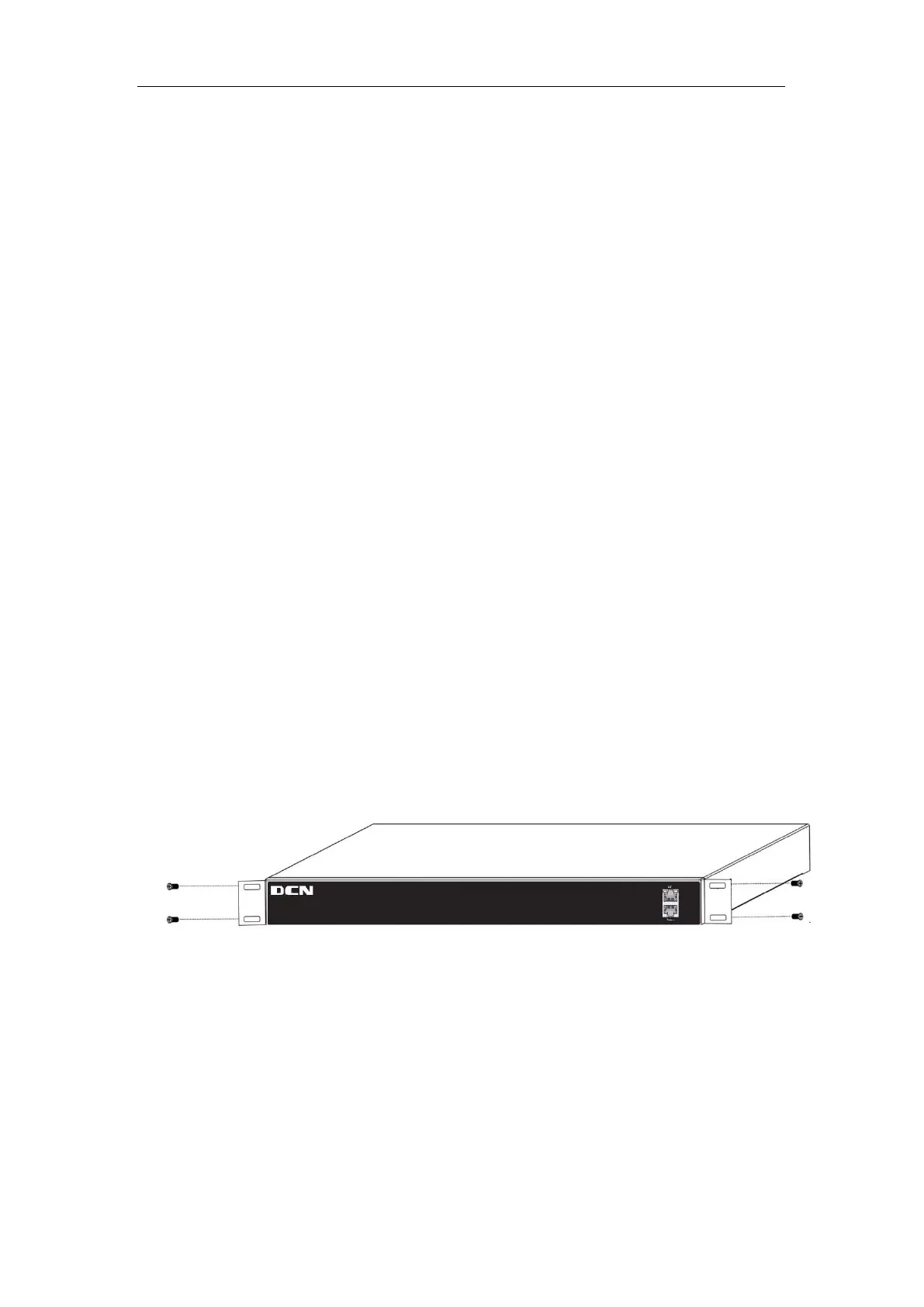

Figure 2-1 switch install sketch map on the rack using stock
2. Put the bracket-mounted switch smoothly into a standard 19’’ rack. Fasten the switch
to the rack with the screws provided. Leave enough space around the switch for good
air circulation.
Caution!
The brackets are used to fix the switch on the rack. They can’t serve as a bearing.
Because the device is heavy, we suggest installing the rack tray on the bottom of the
switch. Do not place anything on top of the switch. Do not block the blowholes on the
switch to ensure the proper operation of the switch. If there is no tray, add the lugs (The
