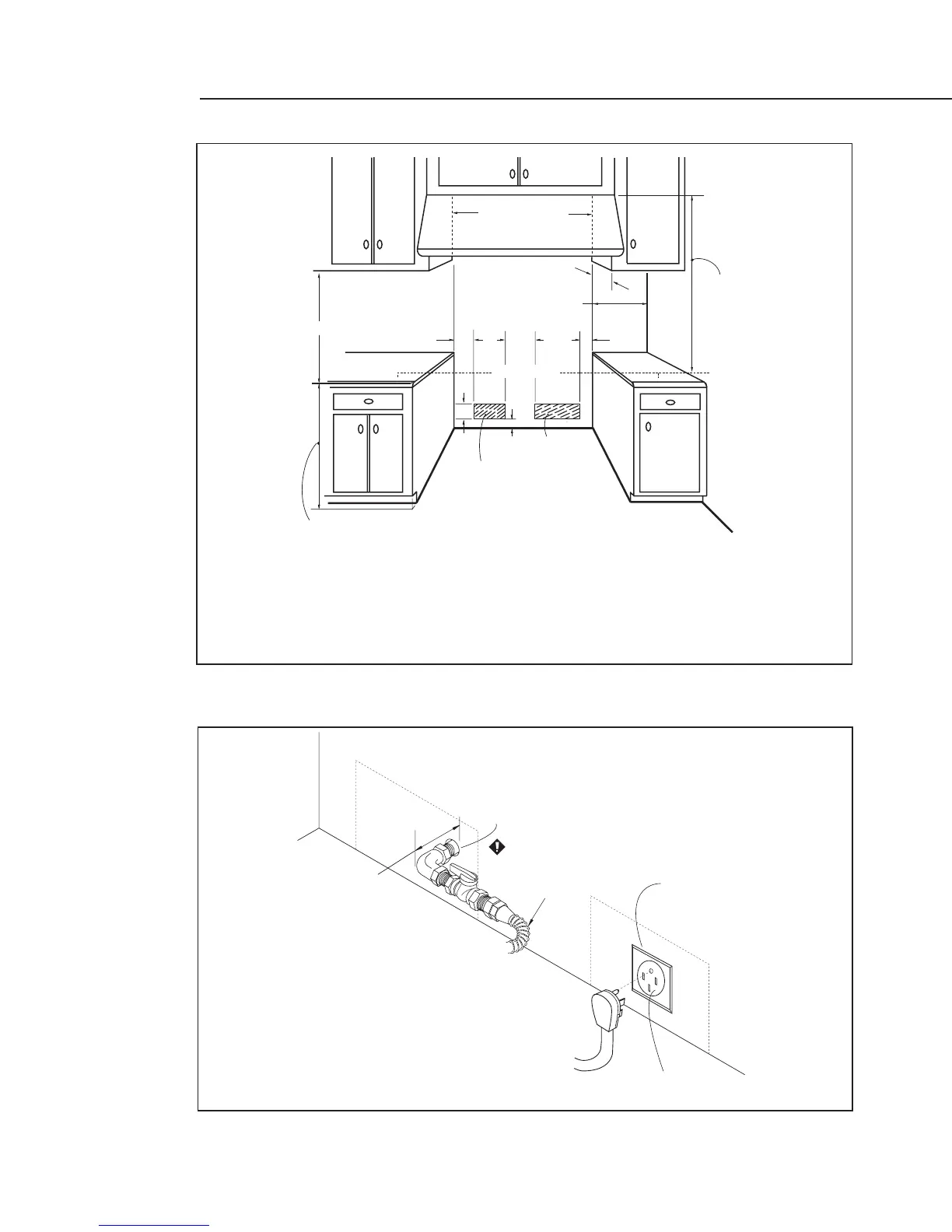

Min. 30" Wide Hood
(RDS 305 Models)
CAUTION:
36" Min. to
combustible
material ,
from cooking
surface
Electrical
Supply (RDS)
Gas Supply (RDS)
35-3/4" Max. For Level Counter,
37" Max. With Range
Leveling Legs Fully Extended
12" Min. to combustible
material , each side
cooking surface
9"
4"
1-1/2"
10 -3/4"
2"
13"
Max
7"
18"Min.
As defined in the
“National Fuel Gas Code”
(ANSI Z223.1, Latest Edition).
The range height is adjustable. The level of the
range top must be at the same level or above the countertop level.
Electrical Supply
NEMA 14-50
Receptacle
2" Maximum
Protrusion from Wall
for Gas Supply
Gas Supply
Flex Line to Range
Manual Shut-Off
Valve must be
Easily Accessible
Fig. 9 RDS-305 Models Only
