TEST AND ADJUSTMENTS
16
STEP 7:
WARNING :
For Warranty coverage, DCS requires that burner adjustments be made by a
qualified technician at the time of installation. Extreme care should be used
when adjustments are made after installation. Improper or lack of
adjustments will void your warranty.
Note: No air shutter adjustment is possible on the top burners. This adjustment section
applies to the griddle and grill burners.

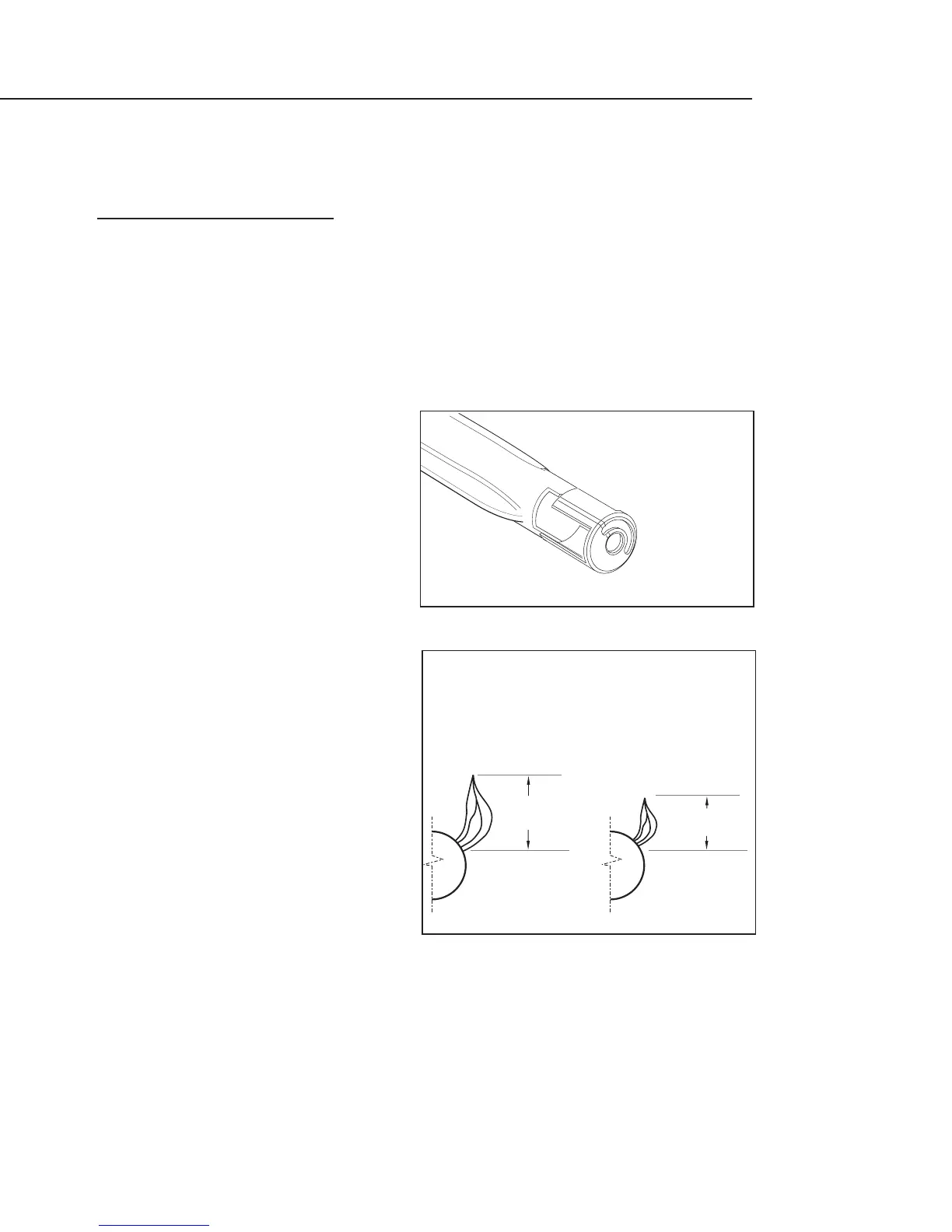

Check for the proper burner flame character-
istics and adjust air shutters if necessary (fig.
15). Each valve and air shutter is individually
tested and adjusted prior to shipment.
Normally adjustment is not required, however,
vibration during transit, gas conversion or
variations in the local gas supply may make
minor adjustments necessary. Burner flames
should be blue and stable with no yellow tips,
excessive noise or lifting of the flame from the
burner. If any of these conditions exist, check
that the air shutter or burner ports are not
blocked. If this condition persists, adjust the air
shutter as required. If the flame is too yellow,
indicating insufficient air, adjust the shutter
counterclockwise to increase air inlet. If the
flame is noisy or tends to lift away from the
burner, indicating too much air, turn the shutter
clockwise to reduce air. The griddle flames
should be 1-1/2" to 2". The grill burner flames
should be 3/8”to 5/8”(fig. 16).
If the top burner does not ignite, check the
spark igniter by listening for a clicking sound.
If you do not hear the igniter click,turn off the
burner. Check for a tripped circuit breaker,
blown fuse, or poor wire connection to the
igniter.
TO CLEAN EXTERIOR SURFACES
The stainless steel surfaces may be cleaned by wiping with a damp soapy cloth. Any mild glass cleaner
will remove fingerprints and smears. Do not use steel wool as it will scratch this surface. Small
scratches may be removed by lightly sanding, with the grain, using 120 grit paper.
