DCS RDS-486GL - Cabinet Preparation

CABINET PREPARATION
12
0” Clearance
C
J
I
0” Clearance
B
A
F
C
H
E
D
G
36" Min. to
Combustibles 
12" Min. to
Combustibles 
without backguard

As defined in the
“National Fuel Gas Code”
(ANSI Z223.1, Latest Edition).
The range height is adjustable. The level of the
range top must be at the same level or above the countertop level.

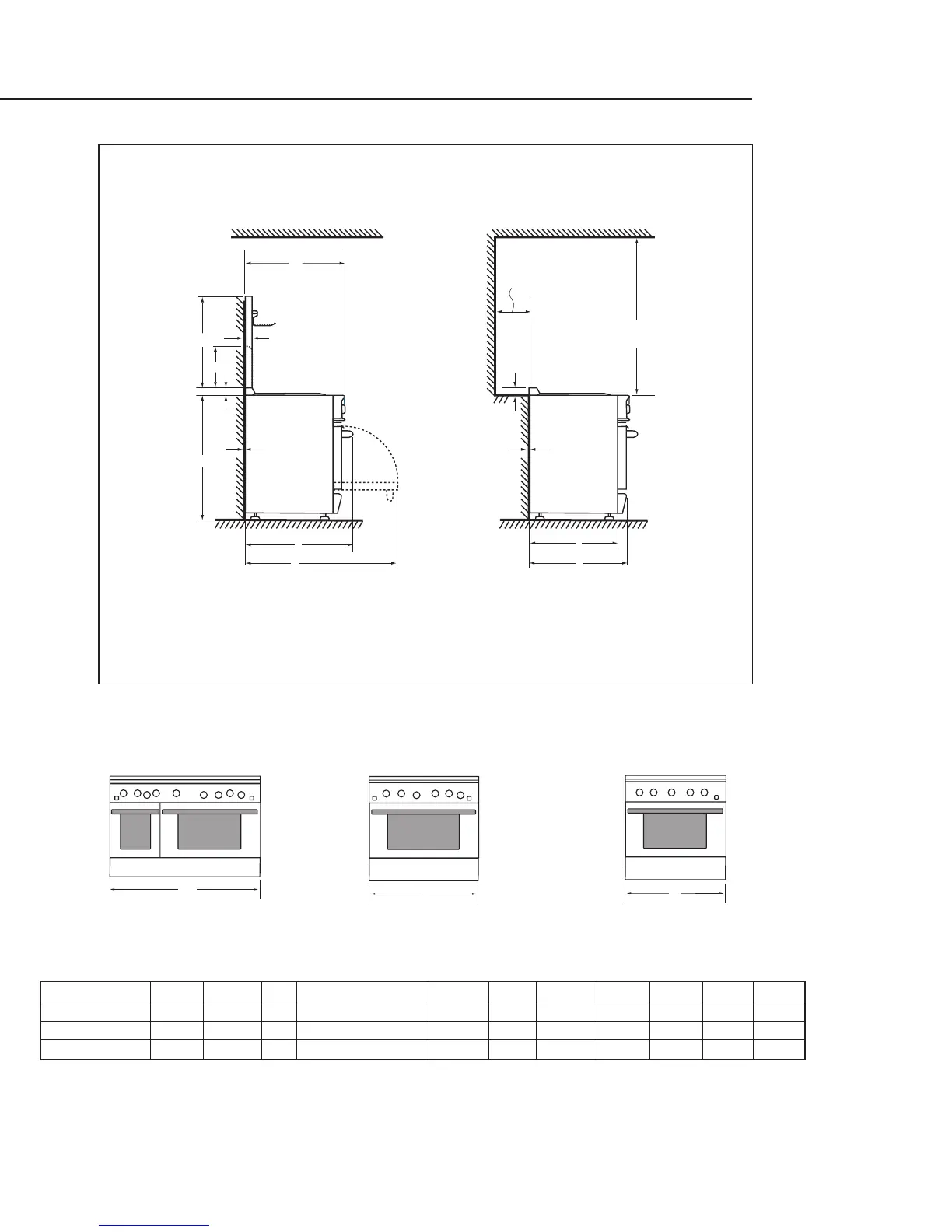

Fig. 11 All RDS Models Product / Installation Clearance Specifications
A B C D E F G H I J K
RDS-48 Models 28-1/8” 10-1/8” 2” 35-1/2”min.-37” max. 30-1/4” 44-1/2” 28-1/4” 1-5/16” 25” 27-3/8” 47-7/8”
RDS-36 Models 28-1/8” 10-1/8” 2” 35-1/2”min.-37” max. 30-1/4” 44-1/2” 28-1/4” 1-5/16” 25” 27-3/8” 35-7/8”
RDS-305 Models 28-1/8” 10-1/8” 2” 35-3/4”min.-37” max. 28-3/16” 43-7/8” 27-3/8” 1-5/16” 24-3/16” 26-3/4” 29-7/8”
STANDARD INSTALLATION:
ISLAND INSTALLATION:
K
K
K
RDS-48 Models RDS-36 Models RDS-305 Models
